Product Details
Place of Origin: | Shandong, China | Brand Name: | GOLD STONE | Model Number: | A variety of specifications |
Product Description

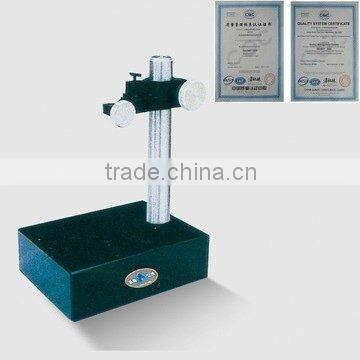

Granite measuring instrument Model.
Brand name:The "GOLD STONE"brand of granite
Our granite measuring devices and granite mechanical components are made of high qualityJinan Blackgranite.Due to their high precision,long duration,good stability and corrosion resistance,they have been more and more used in product inspection of modern industy and such scientific areas as mechanicalaerospace and scientific researches.
Physical Property ofJi Nan BlackGranite:
Specific Gravity: 2970-3070kg/m3
Compressive Strength: 245-254Mpa
Elastic Modulus: 30-50Gpa
Linear Expansion Coefficient: 4.61x10-6/0C
Water Absorptivity: ≤0.07
Shore Hardness: Above 70Hs
The "GOLD STONE"brand of granite measuring tools have the following characteristics:
1 High precision reliable stability resistant to deform and guaranteed accuracy under normal ambient temperature.
2 No-rust and anticorrosion.
3 Wear resistance long service life.
4 Any cutting or scraching for working surface does not bring about roughedgeswhich might influence its measuring precision.
5 Non magnetization.
6 Glossy surface without sluggishness when the workpieces or tools are moving on it.
TYPE LxWxH |
Size of column(mm) |
Flatness of base working surface(μm)) |
Measuring Range(mm) |
150x100x40 | 150x18 | 2 | 0-100 |
200x150x50 | 300xΦ35 | 2 | 0-250 |
300x200x50 | 300xΦ35 | 2 | 0-250 |
Measuring the corresponding sizes of the components and finished products refers to the block gauge and the specification table.
Less indicator and pack if need please adv. when order.
