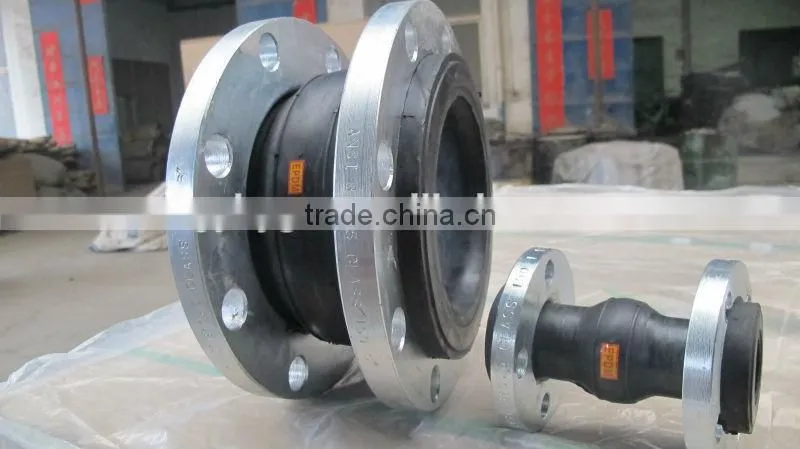

High Class rubber bridge expansion joint
The features of rubber expansion joint
1.Small volume, light weight, good elasticity, easy installation and maintenance.
2.Installation can generate horizontal, axial and angular displacement, from pipe barrier heart, flange is not parallel to the limit.
3.Work to reduce structural transmission of noise, vibration absorption ability.
4. Good sealing performance and scalability, easy to use. Internal high density, can endure high pressure, elastic deformation effect is good.
5.Use of rubber of high elasticity, high resistance, solvent resistance, weather resistance and radiation resistance and other advantages can reduce vibration and noise, and play the role of compensation for thermal expansion and contraction caused by temperature change.
The application of rubber expansion joint
Because the rubber joint has good comprehensive properties,
so it is widely used in chemical industry, construction, water supply, drainage, circulating water,
oil, light and heavy industry, frozen, sanitary, plumbing, electricity and other infrastructure projects.fire protection, papermaking, pharmaceutical, petrochemical, shipbuilding, water pump, compressor, fan and other piping systems.
Method of installation
1.Rubber joint at the time of installation, forbidden super displacement limit installation.
2.Mounting bolts should be symmetrical, progressive compression screw, to prevent local leakage.
3.1.6MPa above the working pressure, mounting bolts to elastic pressure pad, to prevent the work of bolt looseness.
4.When mounting a vertical joint pipe ends due to vertical force support, can be taken to prevent pulling device, to prevent the work pressure of pull.
5.Rubber joints in transport loading and unloading are strictly forbidden to sharp instruments across the surface, the sealing surface
Main connecting dimension
| nominal diameter |
length mm |
flange thickness |
quality of bolt n |
bolt hole diameter |
diameter of the central ring of the bolt |
axial displacement |
lateral displacement |
deflection angle |
||
mm |
inch |
extension |
compression |
|||||||
32 |
1.25 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1.5 |
95/130/150 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105/130/150 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2.5 |
115/130/150 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135/130/150 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150/130 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165/130/150 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180/130/150 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210/130/150 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
230/130/203 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |
300 |
12 |
245/130/203 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15° |
350 |
14 |
255/203 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15° |
400 |
16 |
255/203 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15° |
450 |
18 |
255/203 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15° |
500 |
20 |
255/203 |
32 |
20 |
25 |
620 |
16 |
25 |
22 |
15° |

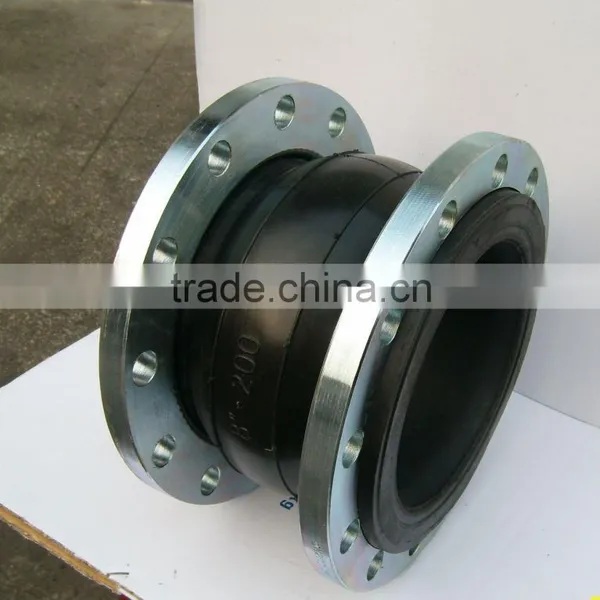

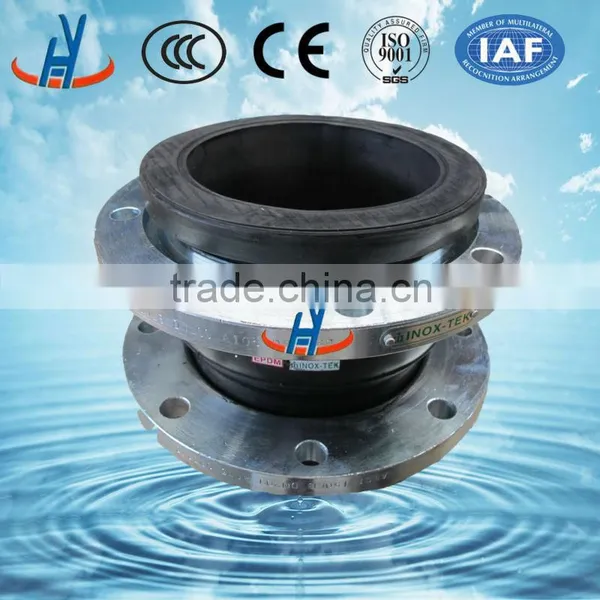

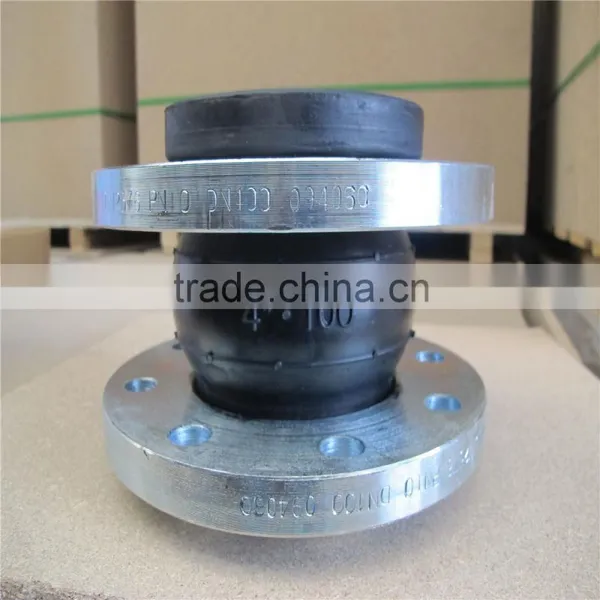

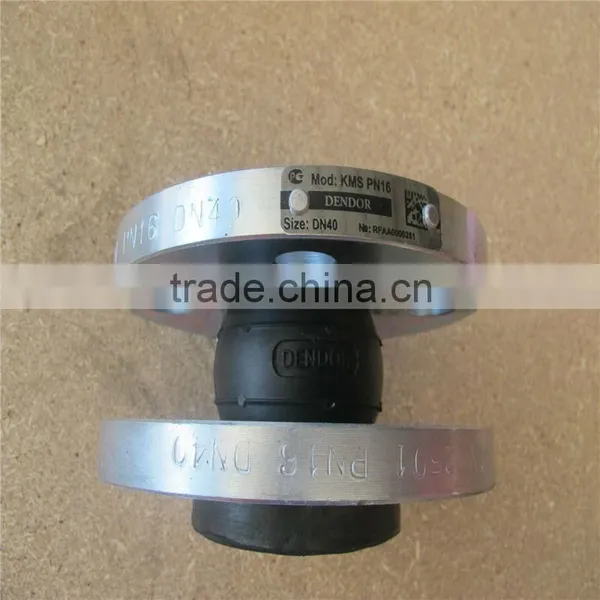

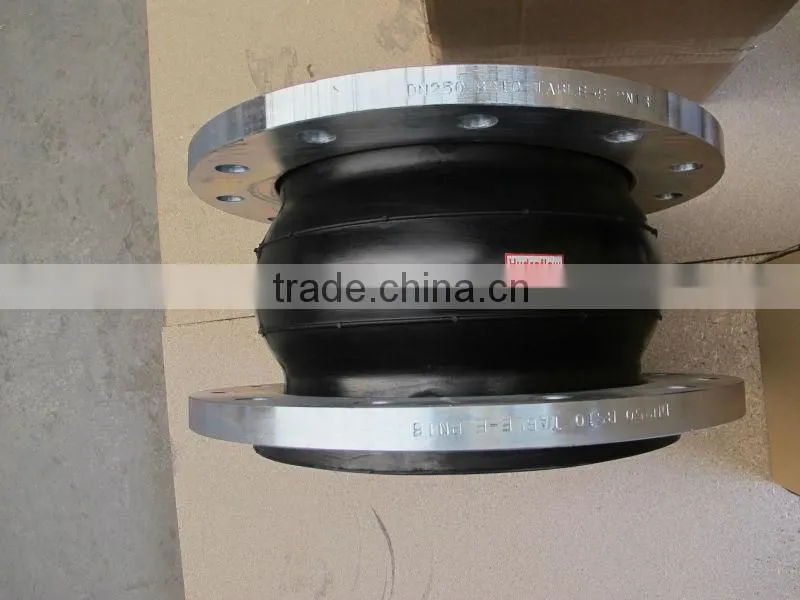

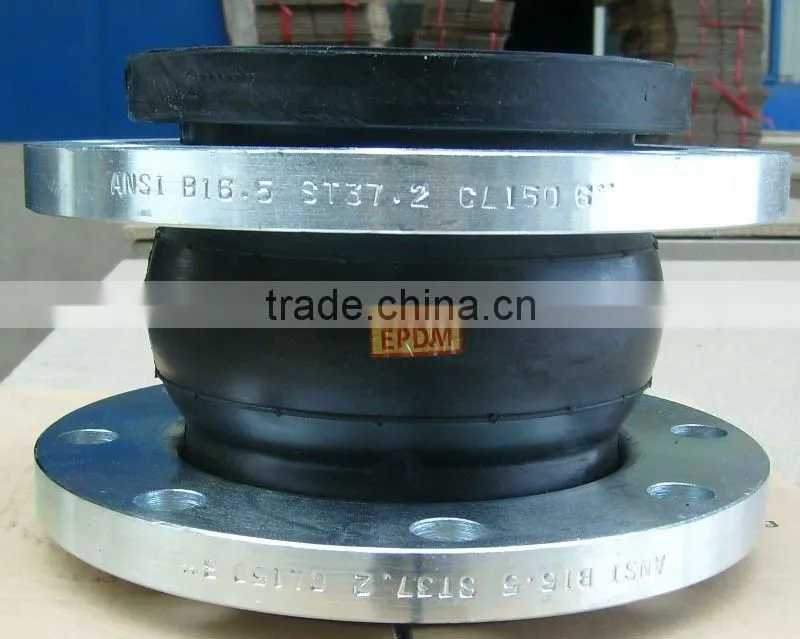

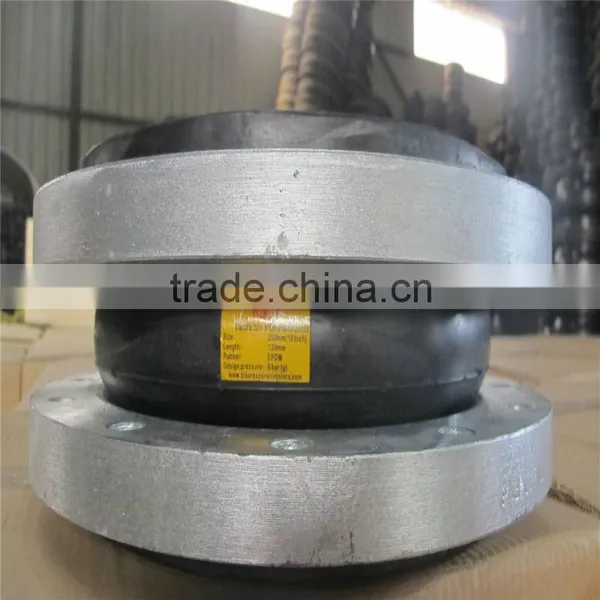

Products Detail photos
Rubber expansion joint package:
1.Carton case inner package
2.Wooden case outer package
Rubber expansion joint Shipping:
1.Lead time: about 25-30 days after order is confirmed.
2.If the order is urgent, we will try to give the best delivery time;
3.Our delivery time is accurate and fast, it is one of our advantages;
4.We cooperate with many famous logistic companies to ensure that we can ship your cargo to you on time.
Rubber expansion joint transport:
There are many kinds of transport , depending on your situation ,you can choose the best transport . We will send the products according to your requirements.
Payment terms:
1,We can accept T/T,West Union etc.
2,Standard payment term: 30% deposit by T/T,and the balance should be paid before delivery.
About Samples:
1,Nomally we can make a sample to you for free,but the postage is paid by client.
2,If the sample is very special,we will charge you sample fee,which can be refunded when your order is confirmed.(order quantity need to be reached our MOQ).
3,Sampling time: about 7-10 days as usual.
Advantage of us:
1.Competitive price
2.Reliable quality
3.Shipped the goods on time
4.Meet your special requirements
5.Rich experience
6.We cooperate with many famous logistic companies to ensure that we can ship your cargo to you on time.
. Gongyi Huayuan Water Supply Equirement Co.,Ltd. is specialized in water supply and drainage equipment, pipe and part.
Through 20 years production history,it is solid in strength and good in quality.
. At present,our products have over 30 types such as JGD flexible synthetic single sphere and double sphere rubber expansion joint,
thread joint, unequal diameter,DN15-DN3000 and so on.
Our products are subject to stringent checks, so you can rest assured that the quality of products .And our products have gotten high praise from clients domestic and overseas.
Partners
Our tenet:
Your trust is our honor and we will manufacture high quality products for you.
FAQ:
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: What is your payment terms?
A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight
Q: can i visit your factory before the oreder?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned
or according to consumer's requests.
Q:Do you accepted small quantity order?
A: Of course we do.
Q:Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
Q:And What's your shipment and delivery time?
A:By sea or air.Normally 7~14 Days for delivery ,according to your order quantity.
Q:And what's your packing?
A: carton cases inside ,export wooden cases outside
More details,please contact us!
