Sale-top rubber expansion joint
USD $1 - $55
/ Piece
1 Piece(Min.Order)
- 20000 Piece / Pieces per Month
- any port in china
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Material: | Stainless Steel | Technics: | Forged | Type: | Flange |
Place of Origin: | Henan, China | Model Number: | JGD | Brand Name: | Huayuan |
Connection: | Flange | Shape: | Equal | Head Code: | Square |
Product Description

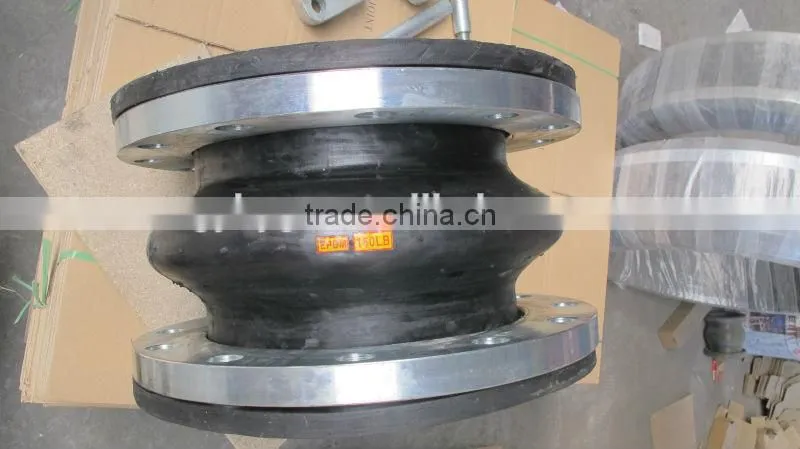

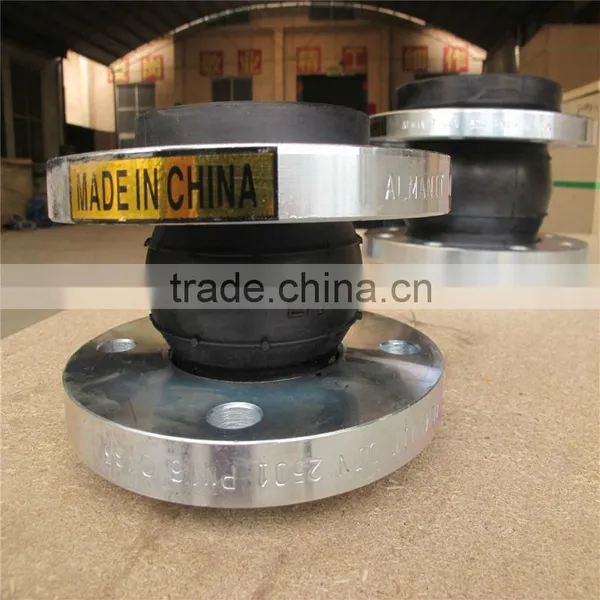

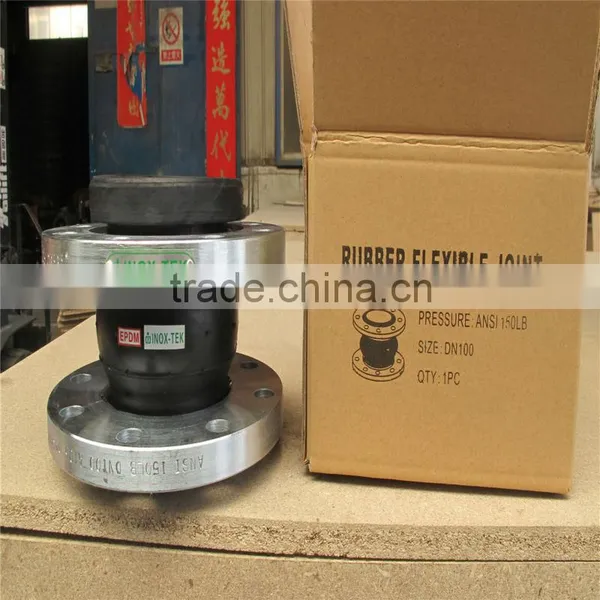

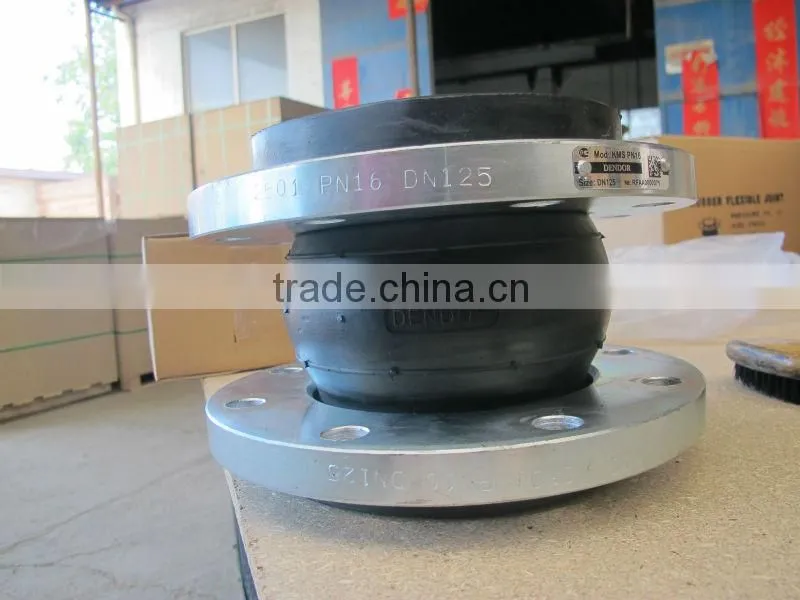

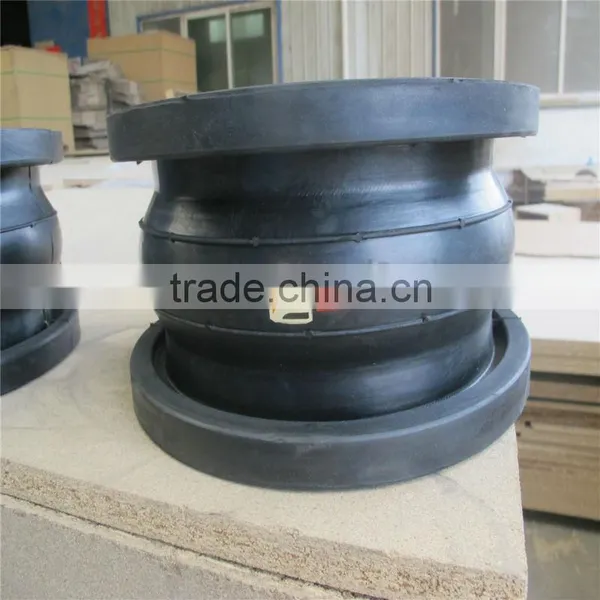

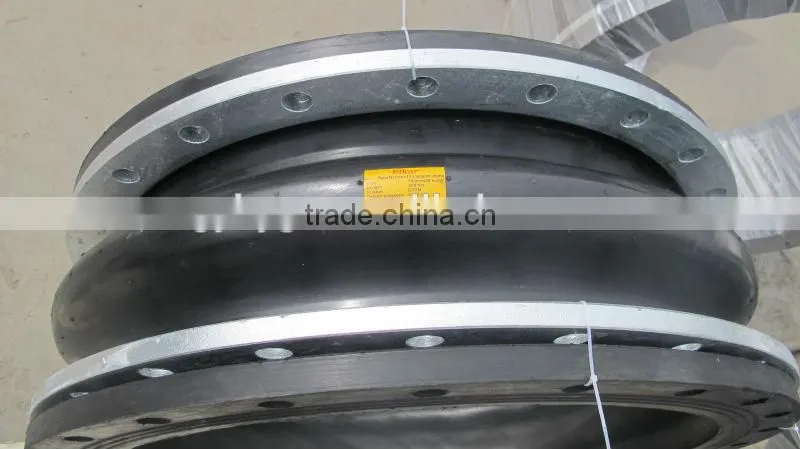

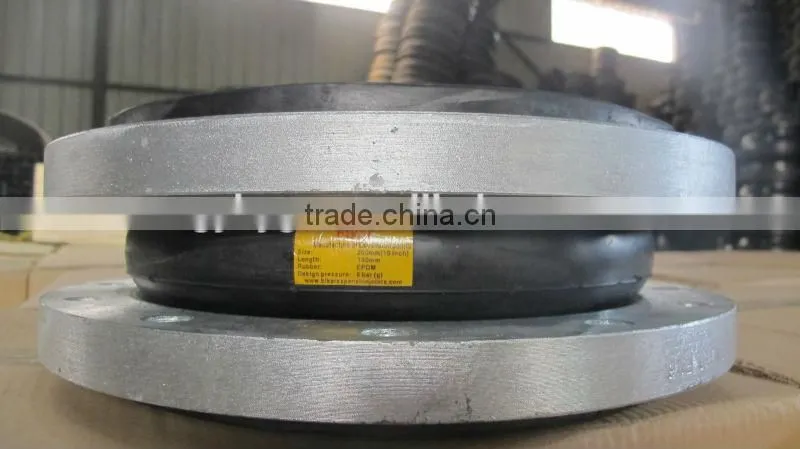

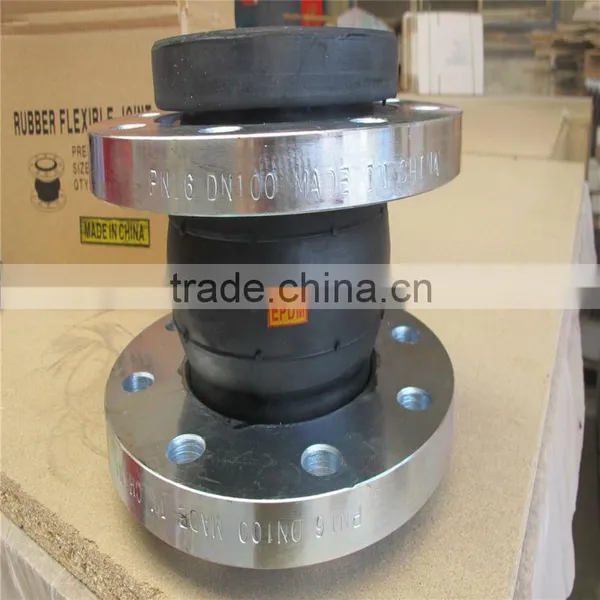

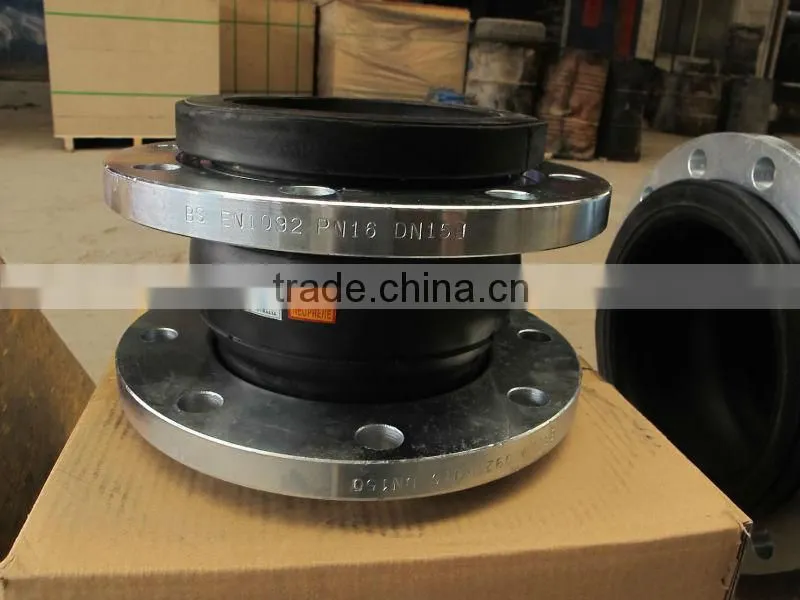

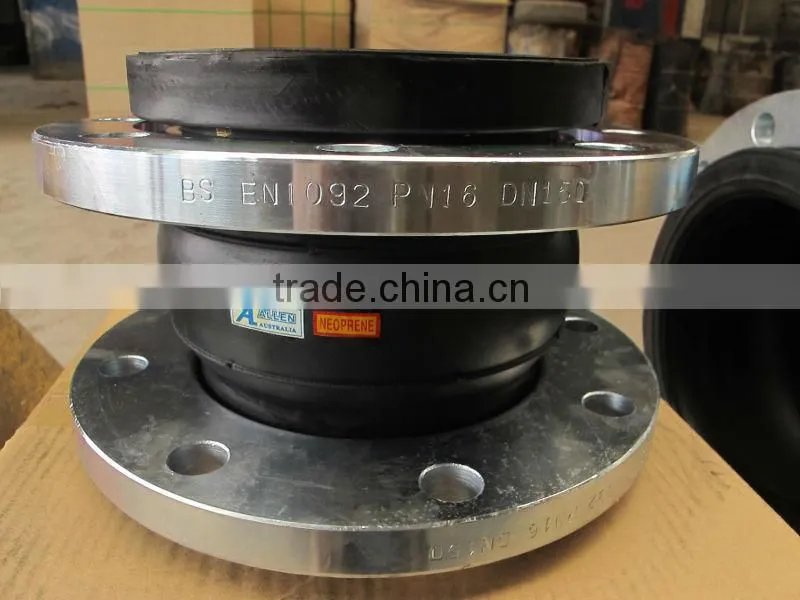

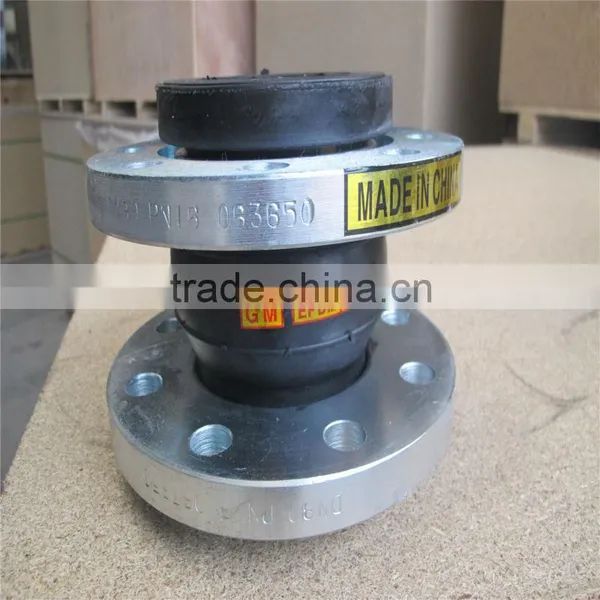

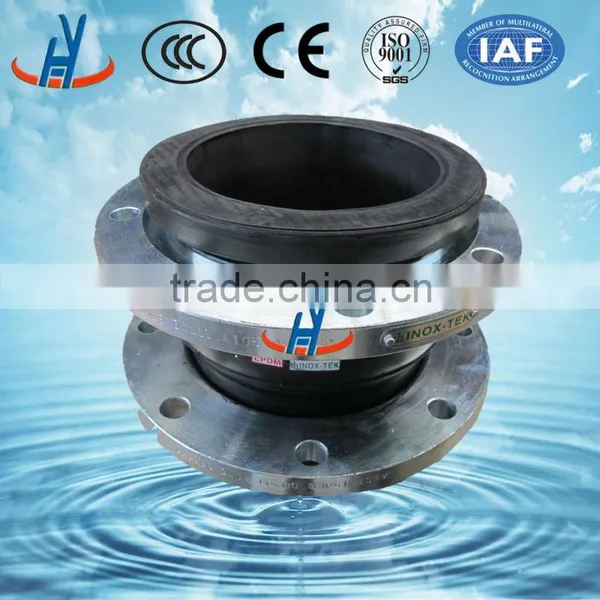

Sale-top rubber expansion joint

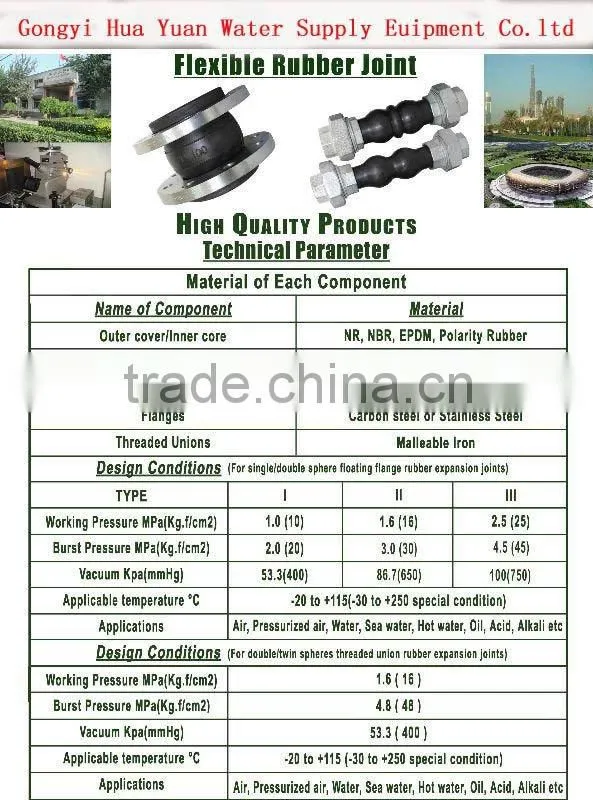

ss expansion joint:
item | nominal diametermm | 200~300(8-12″) | 50~150(2-6″) | |
JGD-A(1) | JGD-A(2) | JGD-A(3) | ||
working pressure MPa(kgf/cm2 ) | 1.0(10) | 1.6(16) | 2.5(25) | |
Explosion PressureMPa(kgf/cm2 ) | 2.0(20) | 3.0(30) | 4.5(45) | |
vacuumKPa(mm/Hg) | 40(300) | 53.3(400) | 86.7(650) | |
applicable temperature'C | -15~115under special conditions-30~250 | |||
applicable media | water ,sea water ,steam,oil .acid .alkali,and so on |
main connecting dimension
nominal diameter | length mm | flange thickness | quality of bolt n | bolt hole diameter | diameter of the central ring of the bolt | axial displacement | lateral displacement | deflection angle | ||
mm | inch | extension | compression | |||||||
32 | 1.25 | 95 | 16 | 4 | 18 | 100 | 6 | 9 | 9 | 15° |
40 | 1.5 | 95/130/150 | 18 | 4 | 18 | 110 | 6 | 10 | 9 | 15° |
50 | 2 | 105/130/150 | 18 | 4 | 18 | 125 | 7 | 10 | 10 | 15° |
65 | 2.5 | 115/130/150 | 20 | 4 | 18 | 145 | 7 | 13 | 11 | 15° |
80 | 3 | 135/130/150 | 20 | 4 | 18 | 160 | 8 | 15 | 12 | 15° |
100 | 4 | 150/130 | 22 | 8 | 18 | 180 | 10 | 19 | 13 | 15° |
125 | 5 | 165/130/150 | 24 | 8 | 18 | 210 | 12 | 19 | 13 | 15° |
150 | 6 | 180/130/150 | 24 | 8 | 23 | 240 | 12 | 20 | 14 | 15° |
200 | 8 | 210/130/150 | 24 | 8 | 23 | 295 | 16 | 25 | 22 | 15° |
250 | 10 | 230/130/203 | 26 | 12 | 23 | 350 | 16 | 25 | 22 | 15° |
300 | 12 | 245/130/203 | 28 | 12 | 23 | 400 | 16 | 25 | 22 | 15° |
350 | 14 | 255/203 | 28 | 16 | 23 | 460 | 16 | 25 | 22 | 15° |
400 | 16 | 255/203 | 30 | 16 | 25 | 515 | 16 | 25 | 22 | 15° |
450 | 18 | 255/203 | 30 | 20 | 25 | 565 | 16 | 25 | 22 | 15° |
500 | 20 | 255/203 | 32 | 20 | 25 | 620 | 16 | 25 | 22 | 15° |
