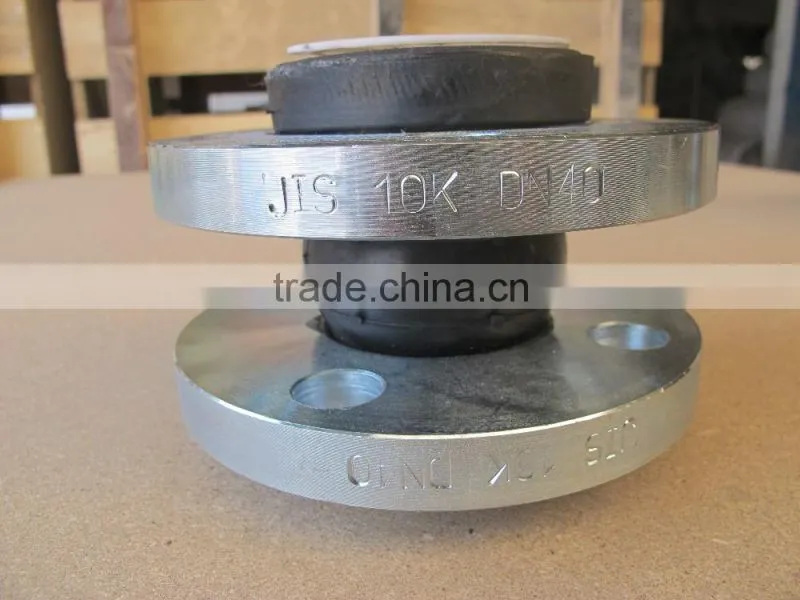

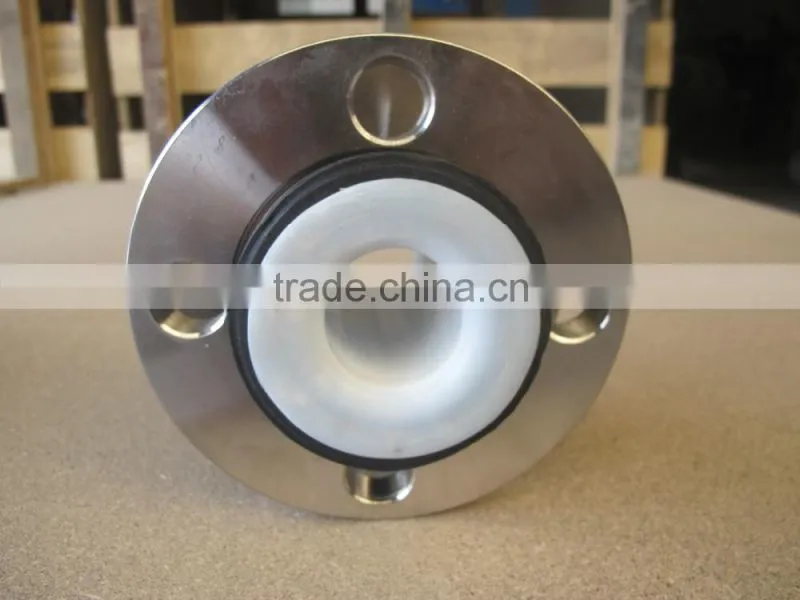

PTFE Lined Rubber Expansion Joints With Flanges
♦ Huayuan rubber joint is also called expansion joints or rubber expansion joint. It is a pipe joint of high-flexibility, high-gas tightness, resistance to medium and climate. rubber expansion joints are flexible connectors made from natural or synthetic elastomers in which special fabrics are embedded to provide physical reinforcement. rubber expansion joints provide a proven and flexible solution to accommodate many types of movements and requirements of industrial plant and equipment.
♦Application areas of PTFE Lined Rubber Expansion Joints With Flanges:
Air conditioning, heating and ventilating systems in industrial buildings, hospitals, hotels and on board ships.
Central and ancillary power generating stations in industrial buildings, factories, ships and off-shore.
Sewage disposal and water treatment plant, pumps, etc.
Process piping in pulp and paper manufacture.
♦ Advantage of PTFE Lined Rubber Expansion Joints With Flanges:
Small volume, light weight, good flexibility, easy installation and maintenance
Technical Conditions of PTFE Lined Rubber Expansion Joints With Flanges:
item |
type |
JGD-1 |
JGD-2 |
JGD-3 |
vacuumKPa(mm/Hg) |
53.3(400) |
86.7(650) |
100(750) |
|
applicable temperature`C |
-15`C~ 15`C under special conditions-30~+250 |
|||
applicable media |
Air,compressed air,water ,sea water ,hot water,oil,acid ,alkali,etc. |
|||
Main connecting dimension of PTFE Lined Rubber Expansion Joints With Flanges:
nominal diameter |
length mm |
flange thickness |
quality of bolt n |
bolt hole diameter |
diameter of the central ring of the bolt |
axial displacement |
lateral displacement |
deflection angle |
||
mm |
inch |
extension |
compression |
|||||||
32 |
1 1/4 |
95 |
16 |
4 |
18 |
100 |
6 |
9 |
9 |
15° |
40 |
1 1/2 |
95 |
18 |
4 |
18 |
110 |
6 |
10 |
9 |
15° |
50 |
2 |
105 |
18 |
4 |
18 |
125 |
7 |
10 |
10 |
15° |
65 |
2 1/2 |
115 |
20 |
4 |
18 |
145 |
7 |
13 |
11 |
15° |
80 |
3 |
135 |
20 |
4 |
18 |
160 |
8 |
15 |
12 |
15° |
100 |
4 |
150 |
22 |
8 |
18 |
180 |
10 |
19 |
13 |
15° |
125 |
5 |
165 |
24 |
8 |
18 |
210 |
12 |
19 |
13 |
15° |
150 |
6 |
180 |
24 |
8 |
23 |
240 |
12 |
20 |
14 |
15° |
200 |
8 |
210 |
24 |
8 |
23 |
295 |
16 |
25 |
22 |
15° |
250 |
10 |
230 |
26 |
12 |
23 |
350 |
16 |
25 |
22 |
15° |
300 |
12 |
245 |
28 |
12 |
23 |
400 |
16 |
25 |
22 |
15° |
350 |
14 |
255 |
28 |
16 |
23 |
460 |
16 |
25 |
22 |
15° |
400 |
16 |
255 |
30 |
16 |
25 |
515 |
16 |
25 |
22 |
15° |
450 |
18 |
255 |
30 |
20 |
25 |
565 |
16 |
25 |
22 |
15° |
500 |
20 |
255 |
32 |
20 |
25 |
620 |
16 |
25 |
22 |
15° |

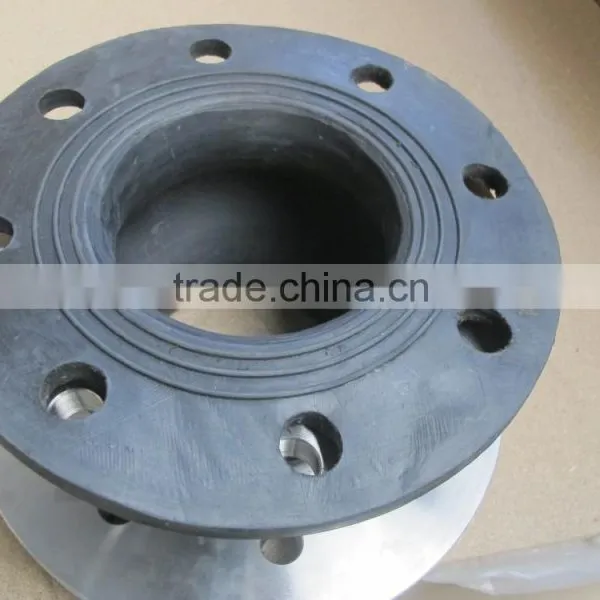

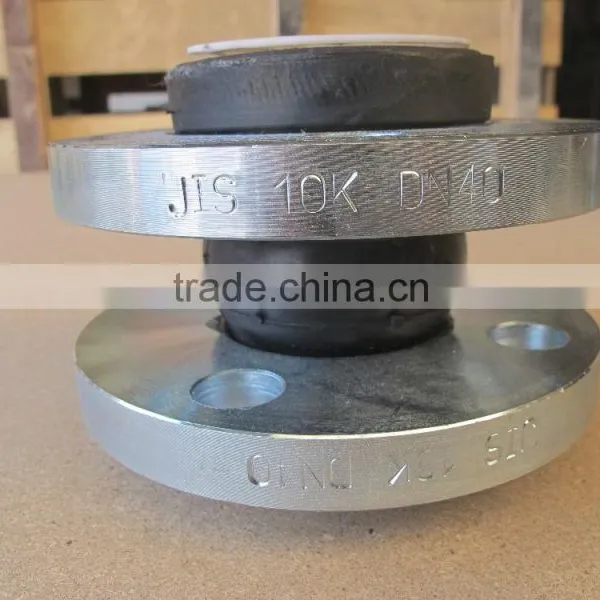

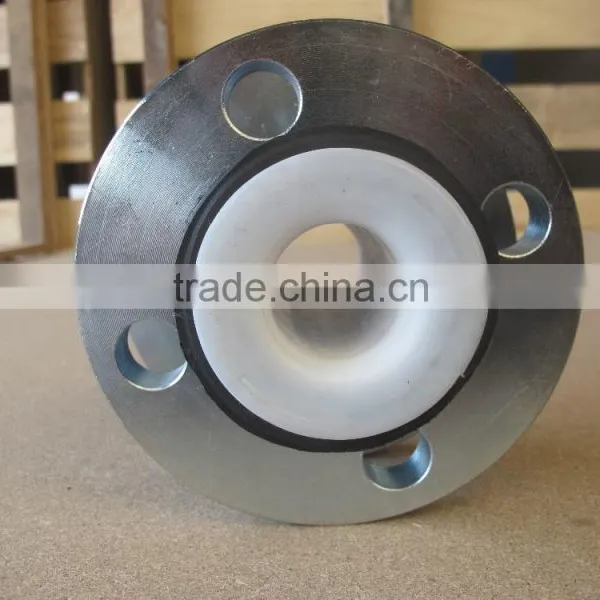

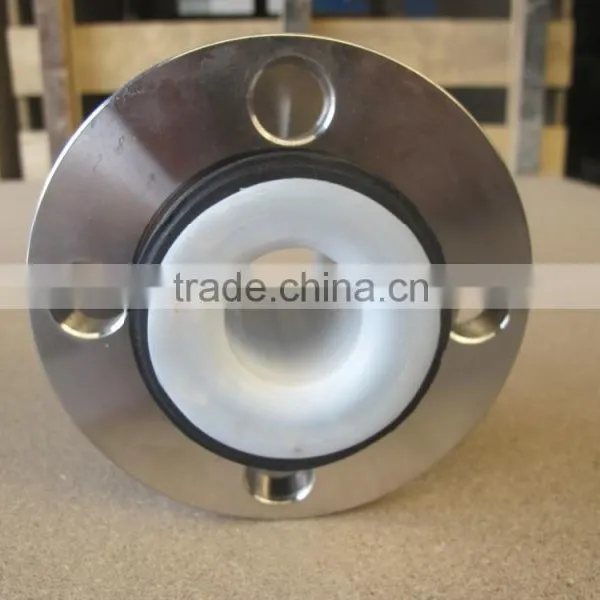

Details photos show of PTFE Lined Rubber Expansion Joints With Flanges:
All the cargoes under inspection before the shipment.
packaging of PTFE Lined Rubber Expansion Joints With Flanges:
1.Inner package: carton case
2.Outer package: wooden case
Shipping of PTFE Lined Rubber Expansion Joints With Flanges:
Lead time: about 25-30 days after order is confirmed.
Transport of PTFE Lined Rubber Expansion Joints With Flanges:
There are many kinds of transport , depending on your situation ,you can choose the best transport . We will send the products according to your requirements.
We cooperate with many famous logistic companies to ensure that
we can ship your cargo to you on time.
About Samples:
1,Nomally we can make a sample to you for free,but the postage is paid by client.
2,If the sample is very special,we will charge you sample fee,which can be refunded when your order is confirmed.(order quantity need to be reached our MOQ).
3,Sampling time: about 7-10 days as usual.
Payment terms:
1,We can accept T/T,West Union etc.
2,Standard payment term: 30% deposit by T/T,and the balance should be paid before delivery.
Promise and service from us :
1.Competitive price
2.Reliable quality
3.Shipped the goods on time
4.Meet your special requirements
5.Rich experience
FAQ:
Q : Can you make the product as per client's requirement?
A: Yes, can make it with your exact requirement.
Q: What is your payment terms?
A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight
Q: can i visit your factory before the oreder?
A: Yes, welcome to our factory to check the quality.
Q: Where is your nearest loading port ?
A: Shanghai, Qingdao or Tianjin ,China.
Q: How can you guarantee the quality or any warranty?
A: If any quality problems during use, all the products can be returned
or according to consumer's requests.
Q:Do you accepted small quantity order?
A: Of course we do.
Q:Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
More Details of PTFE Lined Rubber Expansion Joints With Flanges,Please contact us !
