Specifications
Huayuan single flange limited telescopic joint:1,ManufacturerOEM
2,ISO certification
Detailed describrations:

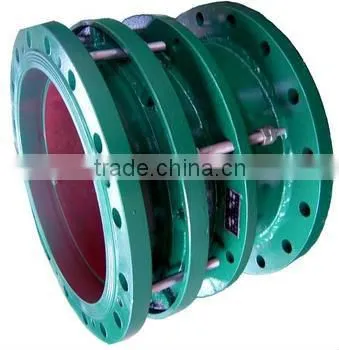

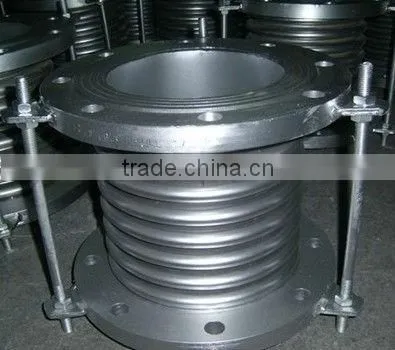

item name:BF single flanges limited telescopic joint
The products based on AF type telescopic joint add limit stud and become, the biggest expansion quantity place uses double nut lock, compensation for heat bilges cold shrink and foundation settlement caused by tube axial displacement and bending and eccentric valve, in order to protect the equipment according to the different way of connection can be divided into single flange limit expansion joint and double flange limit expansion joint.
applied range:
Suitable for conveying water fresh water hot and cold drinking water sewage crude fuel oil product air gas temperature is not higher than 250 degrees of steam and grain powder, and other media.
installation instruction:
Applicable to one side and flange connection,the other side and pipe welding, installation and adjustment of product at both ends of the pipe or flange installation length, diagonal in turn even tighten gland bolts, then adjust limit nut, so can make pipe in the expansion quantity range can free expansion, lock expansion quantity, ensure the safe operation of pipeline.
Joint Advantages:
Easy installation fast reliable sealing convenient maintenance.
Joint Characteristics:
Realize the side pipe flange connection,the other side welding connection, two side inconsistency convenient connection.
material:
NO. |
NAME |
QUALITY |
MATERIAL |
1 |
frame |
1 |
QT400-15,Q235A ZG230-450,20 |
2 |
gland |
1 |
NBR |
3 |
seal collar |
1 |
QT400-15,Q235A ,ZG230-450,20 |
4 |
limited short pipe |
1 |
Q235A ,20,16Mn |
5 |
nut |
4n |
Q235A,20,ICr18Ni9Ti |
6 |
long bolt |
n |
Q235A,35,ICr18Ni9Ti |
7 |
bolt |
n |
Q235A,35,ICr18Ni9Ti |
main connecting dimension
|
nominal diameter DN |
outer diameterDw |
dimension |
telescopic volume L |
connection size |
|||||||
0.6MPa |
1.0MPa |
||||||||||
Dw |
Do |
L |
L1
|
D |
D1
|
n-do |
D |
D1
|
n-do |
||
65 |
76 |
76 |
340 |
105 |
50 |
160 |
130 |
4-14 |
185 |
145 |
4-Φ18 |
80 |
89 |
89 |
190 |
150 |
4-Φ18 |
200 |
160 |
8-Φ18 |
|||
100 |
108 |
108 |
210 |
170 |
220 |
180 |
|||||
114 |
114 |
||||||||||
125 |
133 |
133 |
240 |
200 |
8-Φ18 |
250 |
210 |
||||
140 |
140 |
||||||||||
150 |
159 |
159 |
265 |
225 |
285 |
240 |
8-Φ22 |
||||
168 |
168 |
||||||||||
200 |
219 |
219 |
320 |
280 |
340 |
295 |
|||||
250 |
273 |
273 |
375 |
335 |
12-Φ18 |
395 |
350 |
||||
How to order
We are specialized in manufacturing pipe fittings.
workfolw
Consult
↓
Design&Sample
↓
Process planning
↓
Production
↓
Quality Control
↓
Delivery
