Tempered Fire screen Glass

Specifications

1.Tempered firescreen glass factory
2.CE, BS,CCC authentication
3.15-20days delivery time
4.Low price and take care of orde

Fireplace glass

Current available size:

1040*559mm,R622 With two holes,well polish edge.

842*508mm,R499 With two holes,well polish edge.

1040*711mm,R622 With two holes,well polish edge.

1130*762mm,R743 With two holes,well polish edge.



Tempered Glass

Tempered glass is strong, has enhanced thermal resistance, and breaks into small cuboids fragments rather than irregular shards of glass and therefore is less likely to cause injury.

Product	Tempered Glass
Serial No.	TG-01
Other Names	Toughened Glass
Specification	Flat Tempered Glass: Max size 8000mm*2440mm  Min size 300mm*100mm Curved Tempered Glass: Min curved radius 450mm        Arc of length: Max 2400mm   Min300mm Height: Max 3660mm   Min300mm
Authentication	CCC (China Compulsory Certification) ;BS EN14179-1:2005/BS6206:1981; CE EN12150-1:2000: GB/T19001-200idtISO9001:2000
Construction Use	Glass Door; Curtain Wall; Partition; Elevator; Showcase
Household Use	Sanitary glass; Cabinet; Furniture glass.
Color	Clear, Ultra Clear, Various Green, Blue, Gray, Brown.
MOQ	20’ FCL
Delivery Time	About 15-20days.
Payment	By T/T
Packing	Seaworthy plywood case lined with plastic film and outer packing consolidated by iron strap.
Others



 You will see the processing quality.

Our Machinery :

1. Numerical Control Cutting Machine:

Max:8000mmX3000mm

Min:30mmX30mm

Thickness: 3-25mm

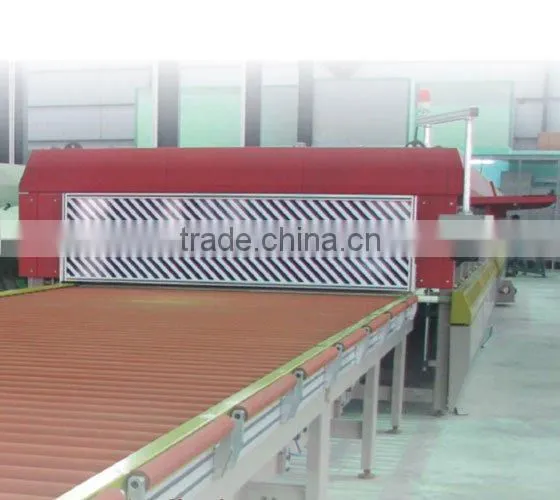

2. Three Tempered glass Machinery , two for flat tempered, one for curved tempered.

Flat tempered:

Max:8000mm X 2440mm

Min:300mmX300mm

Thickness:3-25mm



Curved Tempered:

Min curved radius:450mm

Max arc of length:2400mm

Min are of length:300mm

Max height:3660mm

Min height:300mm



3.Italian Bottero Processing Division:





Max:3210mmx1560mm

Min:Circle with diameter 50mm

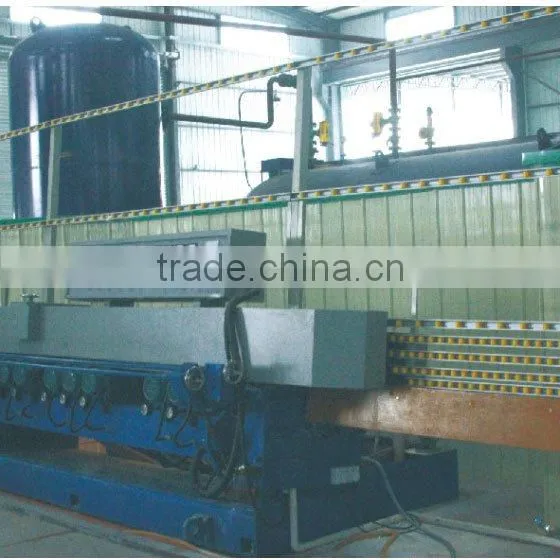

4. Bevel Edge Machine:

Max:2500X5000mm

Min:80mmX80mm

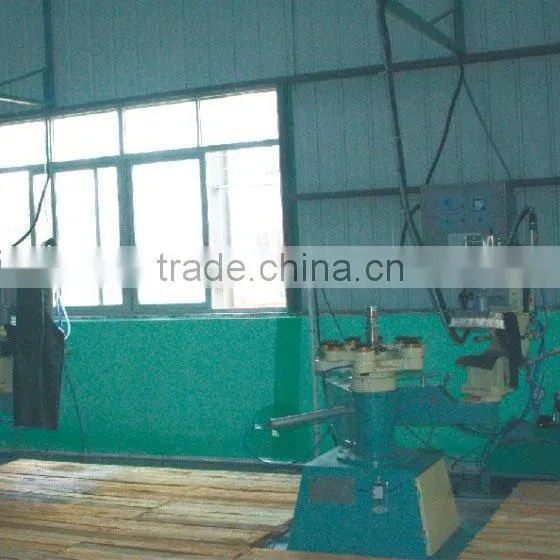

5.Irregular Edge Machine:

Max: A circle which diameter is 2440mm

Min:80mmx80mm

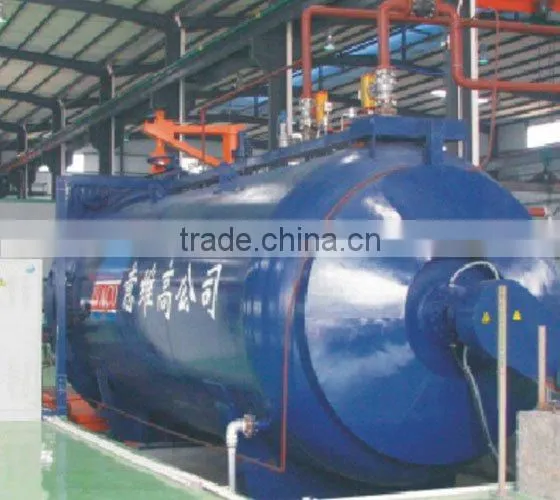

6. Autoclave for Laminated Glass

Max:2400mmX6000mm

Min:300mmX300mm

Thickness of the glass:3-15mm

Thickness of the PVB:0.38mm/Multiple of 0.38mm

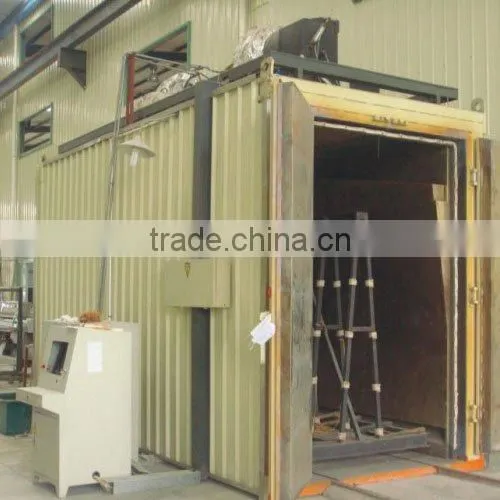

7. Tempered Glass Homogenizing Furnace:

Inside size:5460x1960x3000mm

Max size of glass:2500x5100mm

Thickness of glass:3-19mm

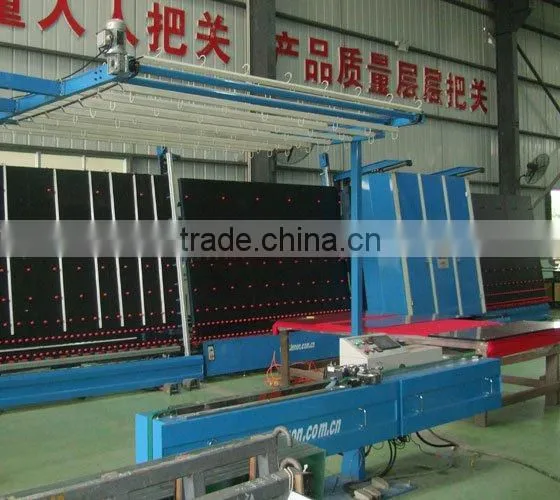

8. Insulated glass processing line (2 lines)

Max:2500mmX3500mm

Min:350mmX350mm

Thickness:3-15mm

Aluminum Spacer:6A 9A 12A

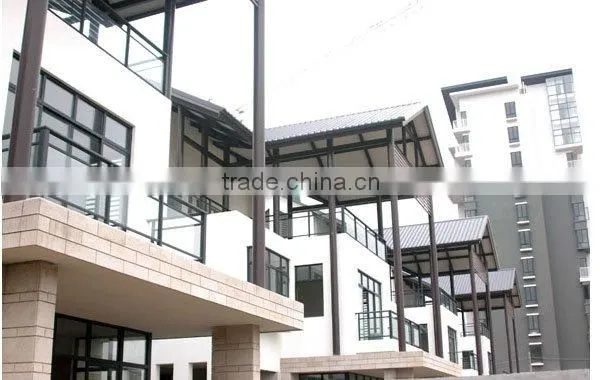

 Our sample project -- 2010 Guangzhou Asian Games Project:

Guangzhou Tower (Model) Plaza





Others:

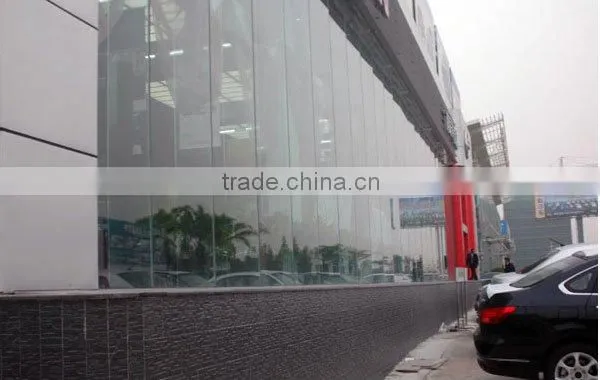

Nissan 4S Shop Zhu Hai,Guangcong,
