Specifications
1.Tempered Fireplace glass factory2.Wit BS,CCC authentication
3.15-20days delivery time
4.Low price and take care of order

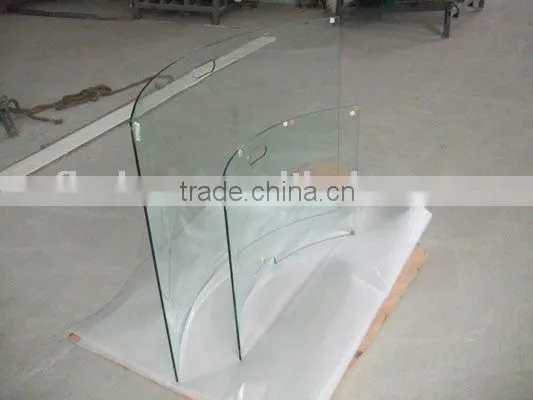

Fireplace glass/Fire screen glass
Current available size:
1040*559mm,R622 With two holes,well polish edge.
842*508mm,R499 With two holes,well polish edge.
1040*711mm,R622 With two holes,well polish edge.
1130*762mm,R743 With two holes,well polish edge.
Tempered Glass
Product |
Tempered Glass |
Serial No. |
TG-01 |
Other Names |
Toughened Glass |
Specification |
Flat Tempered Glass: Max size 8000mm*2440mm Min size 300mm*100mm Curved Tempered Glass: Min curved radius 450mm Arc of length: Max 2400mm Min300mm Height: Max 3660mm Min300mm |
Authentication |
CCC (China Compulsory Certification) ;BS EN14179-1:2005/BS6206:1981; CE EN12150-1:2000: GB/T19001-200idtISO9001:2000 |
Construction Use |
Glass Door; Curtain Wall; Partition; Elevator; Showcase |
Household Use |
Sanitary glass; Cabinet; Furniture glass. |
Color |
Clear, Ultra Clear, Various Green, Blue, Gray, Brown. |
MOQ |
20’ FCL |
Delivery Time |
About 15-20days. |
Payment |
By T/T. |
Packing |
Seaworthy plywood case lined with plastic film and outer packing consolidated by iron strap. |
Others |
|
You will see the processing quality.
Our Machinery :
1. Numerical Control Cutting Machine:
Max:8000mmX3000mm
Min:30mmX30mm
Thickness: 3-25mm
2. Three Tempered glass Machinery , two for flat tempered, one for curved tempered.
Flat tempered:
Max:8000mm X 2440mm
Min:300mmX300mm
Thickness:3-25mm
Curved Tempered:
Min curved radius:450mm
Max arc of length:2400mm
Min are of length:300mm
Max height:3660mm
Min height:300mm
3.Italian Bottero Processing Division:
Max:3210mmx1560mm
Min:Circle with diameter 50mm
4. Bevel Edge Machine:
Max:2500X5000mm
Min:80mmX80mm
5.Irregular Edge Machine:
Max: A circle which diameter is 2440mm
Min:80mmx80mm
6. Autoclave for Laminated Glass
Max:2400mmX6000mm
Min:300mmX300mm
Thickness of the glass:3-15mm
Thickness of the PVB:0.38mm/Multiple of 0.38mm
7. Tempered Glass Homogenizing Furnace:
Inside size:5460x1960x3000mm
Max size of glass:2500x5100mm
Thickness of glass:3-19mm
8. Insulated glass processing line (2 lines)
Max:2500mmX3500mm
Min:350mmX350mm
Thickness:3-15mm
Aluminum Spacer:6A 9A 12A
Our sample project -- 2010 Guangzhou Asian Games Project:
Guangzhou Tower (Model) Plaza
Others:
Nissan 4S Shop Zhu Hai,Guangcong,
