Specifications
Laminated glassis a type of safety building glass holds together when shattered. Interlayer: typically polyvinyl butyral (PVB)Laminated glass
Feature

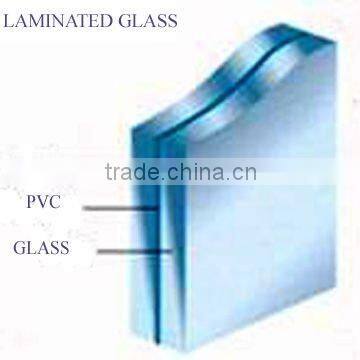

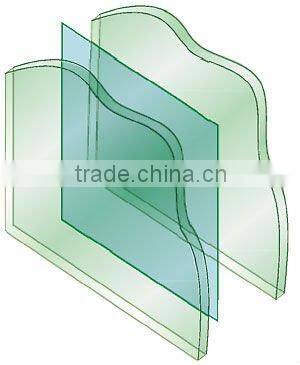

1) Laminated glass is a type of safety glass that holds together when shattered. In the event of breaking, it is held in place by an interlayer, typically of polyvinyl butyral(PVB), between its two or more layers of glass. The interlayer keeps the layers of glass bounded even when broken, and its high strength prevents the glass from breaking up into large sharp pieces. This produces a characteristic spider web cracking pattern when the impact is nor enough to completely pierce the glass.
2) High safety, Sound- insulated, heat insulation, anti-condensation, anti Ultraviolet ray
3) Specification:
Max size: 2400mm*6000mm;
Min size: 300mm*300mm
Thickness: 6.38mm-40mm.
4) Max layers: 13
5) Performance Standards:GB99621999
6) Suitable for places requesting for high security, such as door & windows, glass wall, sunshade, dormer, suspended ceiling, glass furniture, shop window and aquarium etc.
Product |
Laminated Glass |
Serial No. |
LG-01 |
Other Names |
|
Specification |
Maximum size 2400mm*6000mm Minimum size: 300mm*300mm Thickness of glass: Various combinations between 3mm to 15mm. Thickness of PVB interlayer: Multiple of 0.38mm |
Authentication |
CCC (China Compulsory Certification) ; BS EN14179-1:2005/BS6206:1981; CE EN12150-1:2000: GB/T19001-200idtISO9001:2000 |
Construction Use |
Door & Windows, Curtain Wall, Showcase, Skylight, Ceiling etc. |
Household Use |
Furniture, Aquarium and so on |
Color |
Clear, Ultra Clear, Various Green, Blue, Gray, Brown. |
MOQ |
20’ FCL |
Delivery Time |
About 15-20days |
Payment |
By T/T |
Packing |
Seaworthy plywood case lined with plastic film and outer packing consolidated by iron strap. |
Others |
|
2. Laminated Glass (Regular combination & approximate container loading capacity)
|
Container |
1X20GP |
1X40GP |
1X40HQ |
|
Loading capacity |
17.5T |
22.5T |
22.5T |
MM+PVB+MM |
Kg/M² |
Square meter |
Square meter |
Square meter |
3+0.38+3 |
≈15 |
1120 |
1420 |
1420 |
4+0.76+4 |
≈20 |
840 |
1065 |
1065 |
5+0.76+5 |
≈25 |
672 |
852 |
852 |
6+0.76+6 |
≈30 |
560 |
710 |
710 |
8+1.14+8 |
≈40 |
420 |
533 |
533 |
10+1.14+10 |
≈50 |
336 |
426 |
426 |
12+1.9+12 |
≈60 |
280 |
355 |
355 |
15+1.9+15 |
≈70 |
224 |
284 |
284 |
Note: |
All the above data is just for your reference. |
|||
