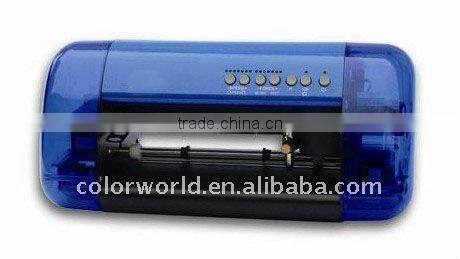

Outline Sketch Cutting Plotter

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Rated Power:

220V/110V

Shanghai Color World Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Rated Power 220V/110V

Specifications

1. Outline sketch cutting plotter,can cut outlines of printed images;
2. With laser positioning device;
3. Size: A3,A4

A3/A4 size outline sketch cutting plotters are widely used for outlines sketch cuttings of printed graphics.

Technical Parameter:	Model	Model
Model Item	A4	A3
Maximum cutting range	190*2000mm	290*2000mm
Material Width	A4 size	A3 size
Net weight/Gross weight	4.5/5.5kg	5.5/6.5kg
Packing size	492635cm	582635cm
Configuration	Grit-rolling
Drive System	Stepping motor
plotting speed	10-280mm/s(7 ranks optional)
cutting force	60-350g(7 grades optional)
Available Material	PVC or lactoprene sheet(less than 0.1mm thickness) Drawing paper, postcard, back-glue print paper, ink jet photo paper
interface	USB 1.0 or RS232
Power supply	Dedicated adapter, DC 16V 2.5A, Input AC100V-AC240V; 47HZ-66HZ
Language Format	DMPL/HPGL
Operation Environment	Temperature:5⁰c-30⁰c,Relative humidity:(35%-80%)without condensation
colors	White ,Blue, Red ,Black

Character Features
A3/A4 is a mini cutting machine placed on table, it can cut paper or plastic slice according to the pattem designed in computer, it has laser positioning device. It can accomplish cutting the outline sketch of the printed graphs.
It can cut vinyl, none dried glue labels, card papers, film papers. It is used to make paper models, joined graphs, stereo congratulation cards, name cards, cartoon stamps, etc.
It is delicate and cabinet, much appropriately used in stores,offices,schools and families, Especially in Europe and America countries, many families buy it to help their children to enhance their intellectual faculties.
