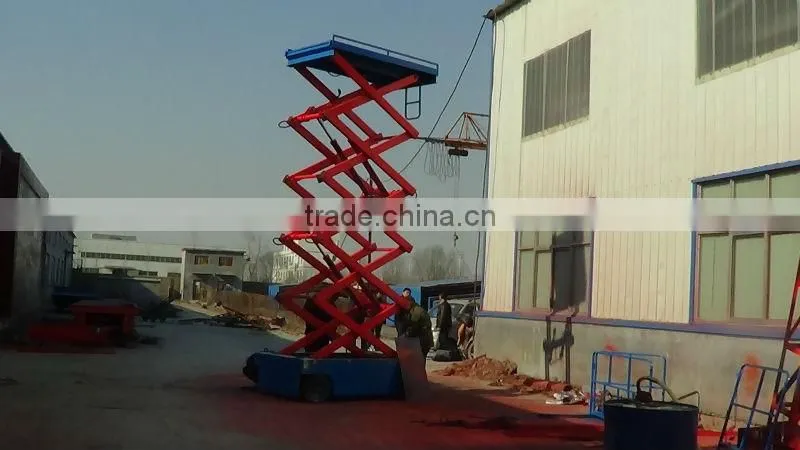

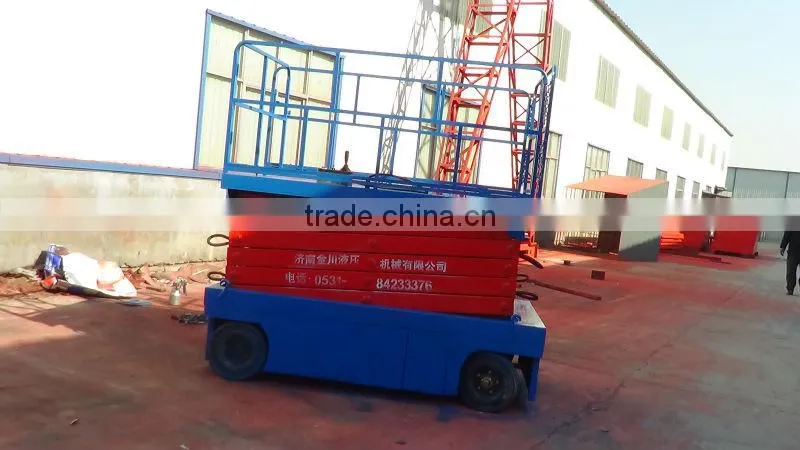

Help Center5 Ton Hydraulic Scissor Lift Portable Hydraulic Scissor Car Lift
Related Products
-
Vehicular Aerial Work Platform Vehicle Mounted Boom Lift PlatformUS$ 15,000 - 30,000MOQ: 1 Set -
Car Mounted Boom LiftUS$ 1,000 - 10,000MOQ: 1 Set
-
Hydraulic Trailer-mounted Articulating Boom Lift for Hot SaleUS$ 5,000 - 10,000MOQ: 1 Set
-
Hydraulic Trailer-mounted Articulating Boom LiftUS$ 5,000 - 28,000MOQ: 1 Set
-
Vehicle Monted Work PlatformUS$ 5,000 - 15,000MOQ: 1 Set
Specifications
self-propelled scissor lifts can travel at slow speed and rapid speed self propelled. Only one person is needed to lower, raise,Specifications
self-propelled scissor lift can be moved and lifted on the platform.the lod capacity is 300KG and the platform can be extended .
self-propelled scissor lifts can travel at slow speed and rapid speed self propelled. Only one person is needed to lower, raise, forward, backward, steer the machine. It improves working efficiency and reduces man-power and labor intensity greatly. Ti is especially good for long time work at airport terminals, stations, docks, shopping markets, stadiums and work shops.
1.Be able to drive at maximum height
2.Maneuverable, extremely easy to use;
3.Safe ground clearance for indoor/outdoor Operation
4.Robust, reliable and easy to maintain
5.Standard feature
6.Non-marking wheel
7.Slope alarm
8.Double wheel traveling speed
9.Double wheel driving & turning
10.Flexible turning unit
11.Charger indicator
12.Hour meter
13.Emergency lowering device
14. Roll-out extension platform provide more workspace
15.Neatly folding guardrails make it easy to maneuver through doorways,into elevators and throughout other height-restricted areas
Model No |
SJZ-A6 |
SJZ-A8 |
SJZ-A10 |
Size | |||
Max. working height (m) |
8 |
10 |
12 |
Max. platform height (m) |
6.0 |
8.0 |
10 |
Platform length (m) |
1.9 |
2.15 |
2.6 |
Platform extension (m) |
0.8 |
0.8 |
1.0 |
Platform width - Outside (m) |
0.9 |
1.1 |
1.3 |
Guardrail height (m) |
1.1 |
1.1 |
1.1 |
Toeboard height (mm) |
150 |
150 |
150 |
Height (m) |
1.1 |
1.3 |
1.6 |
Length (m) |
2.05 |
2.3 |
2.6 |
Width (m) |
0.8 |
1.0 |
1.1 |
Axle base (m) |
1.5 |
1.8 |
2 |
Ground clearance (mm) - centre |
60 |
60 |
60 |
Pothole guard clearance (mm) |
15 |
15 |
15 |
Performance | |||
Capacity (kg) |
300 |
300 |
300 |
Extension capacity (kg) |
120 |
120 |
120 |
Drive speed -stowed (km/h) |
≤5 |
≤5 |
≤5 |
Drive speed -raised (km/h) |
0.54 |
0.54 |
0.54 |
Gradeabilit - stowed |
25% |
25% |
20% |
Turning radius – inside (m) |
0.5 |
0.44 |
0.6 |
Turning radius – outside (m) |
2.13 |
2.26 |
2.68 |
Lifting / Lowering speed (m/s) |
0.14 |
0.13 |
0.13 |
Controls |
DC Proportional |
DC Proportional |
DC Proportional |
Drive |
2WD |
2WD |
2WD |
Tire (mm) |
Φ300x100 |
Φ300x100 |
Φ300x100 |
Power | |||
Voltage |
24V |
24V |
24V |
Electromotor power (kW) |
2 |
2 |
2 |
Hydraulic tank volume (L) |
20.3 |
21.3 |
25 |
Machine weight (kg) |
2000 |
2200 |
2400 |
