Home > Transportation > Trailer > Truck Trailer > Electrical Flat Car With Rail 20t for Industry Transportation

Electrical Flat Car With Rail 20t for Industry Transportation

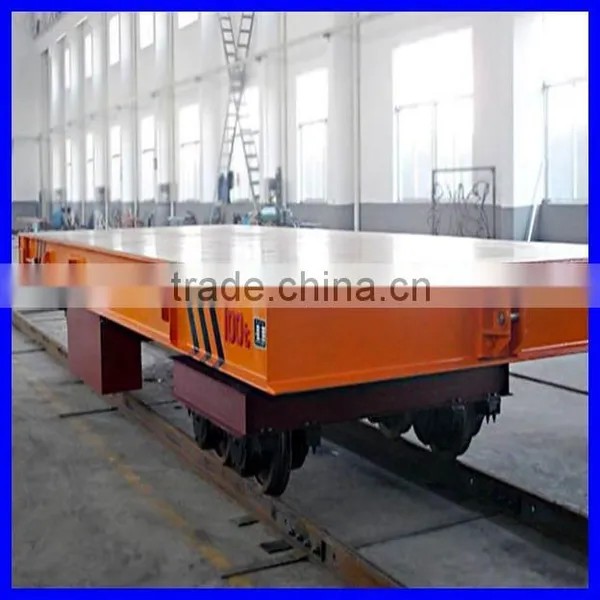

Electrical Flat Car With Rail 20t for Industry Transportation photo-1

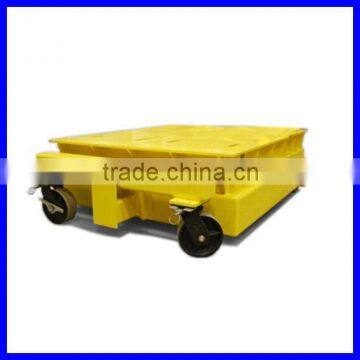

Electrical Flat Car With Rail 20t for Industry Transportation photo-2

US$ 999 - 9,999 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

HNKS Crane Co., Ltd. ZD Branch

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

electrical flat car with rail 20t in industry transportation

Specifications

1.Low voltage rail flat car

2.Used For heavy load good

3.Use for factory, coal, metallurgy

Since it no use cable, so safe, not afraid of hot, not afraid to drop it, without prejudice to the cross-transport, easy to implement remote control and automation, can be in the corners, even the fork in the roundabout long distance run, to plant rationalization of the transport arrangements to provide favorable conditions. But the track in high demand must ensure rail insulation; more than a certain distance running track should be added copper wire compensation. Long distance running must also be increased number of step-down transformer.

Electric flat car is a low-voltage electric power supply rail flat car, its working principle is to control blood pressure through the ground system, the 380V power supply (three-phase or single phase) voltage down to 36V safe voltage. Fed to the conductor rail (flat as both conductor rail tracks of moving vehicles), the conductive device by the flat car sent the car will be low voltage step-up transformer, step-up to 380V in order to drag the three-phase or single-phase capacitor motors, Flat Car driver to run.

Electric flat car without cables because of the advantages of not only security, but not afraid of hot, not afraid to drop it, without prejudice to the cross-transport, easy to implement remote control and automation, can be in the corners, circular trail running, and appropriately increase the number of step-down transformer can not flat car to run away from the restrictions, to the factory floor to great transport convenience.

Product introduction

Electric flat car with excellent car pars is powered by battery.

The battery is installed in the cart. The DC control system controls the DC traction motor to turn positively and reversely.

Motor drives gear reducer to make wheels move.

Working principle

We use the principle to operate the cart start, stop, go forward, backward, adjust the speed and so on.

Main part

electric flat car

Cart frame, AC motor, gear reducer, wheel, electrical appliance box, remote controller, alarm light etc

and so on.

motor : DC motor has the advantage of big starting torque

gear reduce :The gear of speeder reducer is of smooth transmission feature

charger : The charger has the function of battery maintenance

Advantages

1.battery powered, intelligent charger

2.advanced electric driving system

3.1-300 ton load capacity

4.high safety level

5.box beam structure made our truck more compact

6.variable speed device(VFD)

7.running distance is not limited

8.long service life

9.run on the rails "S", arc-shaped, direct running

type	KPJ	KPJ6	KPJ10	KPJ16	KPJ25	KPJ40	KPJ63		KPJ100	KPJ160
rated load(t)		6	10	16	25	40	63		100	160
table-board dimensions(mm)	Length L	3600	3600	4000	4500	5000	5600		6300	8000
	Width B	2000	2000	2200	2200	2500	2500		2800	2800
	High H	550	550	580	650	700	850		900	1150
running speed(m/min)		30	30	30	30	25	25		20	20
padding-bottom(mm)		50	50	50	60	60	60		60	60
wheel diameter(mm)		400	400	400	500	500	600		600	600
wheel pair C(mm)		1435	1435	1435	1435	1435	1435		1435	1435
wheel base A(mm)		2000	2000	2200	2500	2800	3200		3600	4500
motor type power(Kw)		YZ 2.2 2.2	YZ 2.2 2.2	YZ 3.7 3.7	YZ 3.7 3.7	YZ 5.5 5.5	YZ 7.5 7.5		YZ 7.5 7.5	YZ 7.5 7.5×2
KPJ cable drum		AC380V 3×2.5+1×1.5		AC380V 3×4+1×2.5				AC380V 3×6+1×4
Reference weight (t)		2.2	2.5	3.2	4.3	5.7	8.3		10.2	22.5
Recommended the rail type		P24 YB222-63		P38 GB183-63		P43 GB182-63				P50 GB181-63
Number of wheel/roller pressure		4/2.2t	4/3.3t	4/5t	4/7.5t	4/11.5t	4/18t		4/27.5t	8/22.8t
