Specifications
long range UHF RFID reader1,Epc Gen2 reader
2,Wiegan,TCP/IP,WIFI
3,strong multi-tag reading & anti-Collision

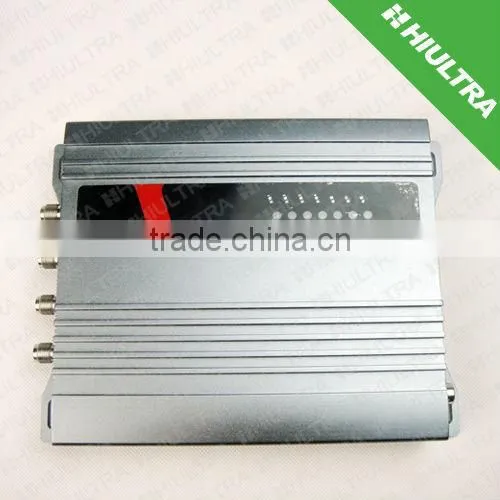

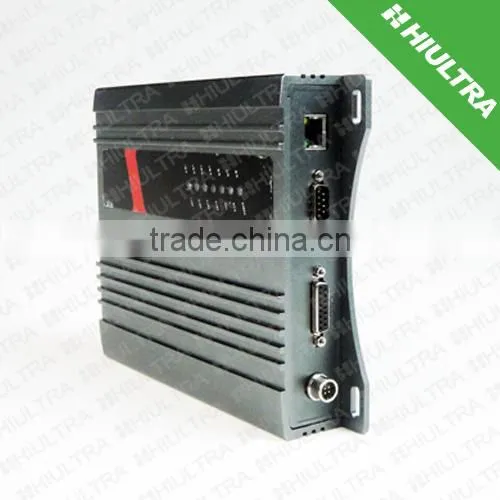

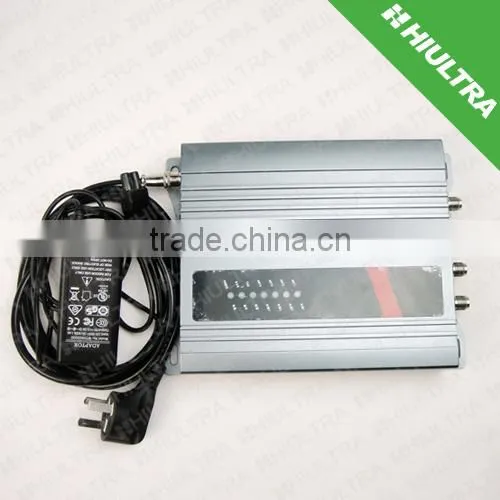

902Mhz~928Mhz four antenna interface long range UHF RFID reader
Why do you choose us?
&15 years experience in RFID field
&Experienced in RFID software and hardware
&Timely delivery, competitive price and free sample for test
1. Brief Description:
RFID uhf Reader
1) Interface: RS232, RS485, Wiegand, TCP/IP
2) Reading distance: 8-15m or more
3) Application: Warehouse management
4) Free SDK and timely technical supports
2.Performance Characteristics:
Product Description
Ø Special anti-collision algorithm, high efficient of multi-tag identify capability;
Ø Four separate transmit/receive antenna to make more wide identification area in application;
Ø Compatible ISO18000-6B and ISO18000-6C(EPC-GEN2) protocol standard;
Ø Read/Write tag capability: read range>12m,write range 60% of read range (depend on different tags)
Ø Support multi-tag identify, single tag reading, writing, locking and killing functions, etc.
Product Features
Ø Logistics and warehouse management: goods flow, warehouse management, and the flowing management of mail, parcel, luggage
Ø Supply chain management: production process fixed Identify
Ø Commodity anti-counterfeiting inspection: using memory’s write-protect functions inside tags, and anti-counterfeiting for commercial products
Ø Other fields: club management, library management, student status management, consumption management, time attendance management, repast management, pool management
Basic Parameters | |
Model |
MS-9814H UHF Fixed Four Channel Reader |
Dimensions |
310mmX210mmX40mm |
Weight |
2Kg |
Operating Temp |
20°C to +80°C |
Interface |
RS232, RJ45 (TCP/IP), RS485 |
Outport |
Four groups outport |
Indicator |
Buzzer |
Power Supply |
DC 9V (equipped with power adaptor) |
Certificates |
FCC CE CCC |
RFID Parameters | |
Frequency Range |
Standard ISM902MHz to 928MHz/ISM 865MHz to 868MHz (option), or other custom frequency |
Protocols |
ISO18000-6B, ISO18000-6C (EPC GEN2) |
Work Mode |
FHSS |
RF Power |
0 to 30dBm, set by software |
Antenna |
4 groups of external antenna available, TNC connector |
Read Range |
Depend on the commission gain of external antenna; >12.0m if the transmission gain of antenna is 12dBi |
Read Mode |
Timing reading/Triggering reading, set by software |
Reading Speed |
<6ms per 64 bits, set by software |
3 . Contact Detail:
Address |
Yinhe Building, 2008 Xinluo str. High-tech District, Jinan 250101 Shandong Province, China |
Office |
+86-531-66955507-821( Sanny) |
Skype |
h-rfidtag01 |
4.Product detail picture:
