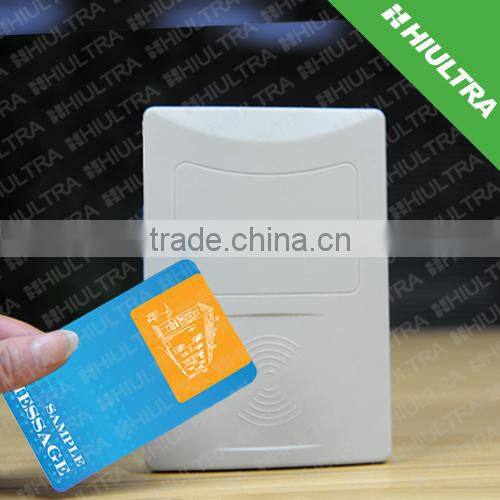

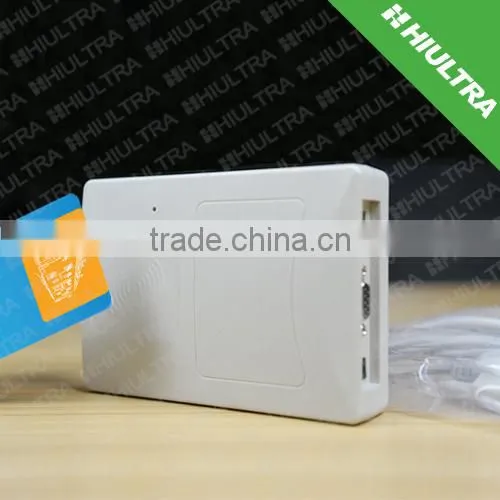

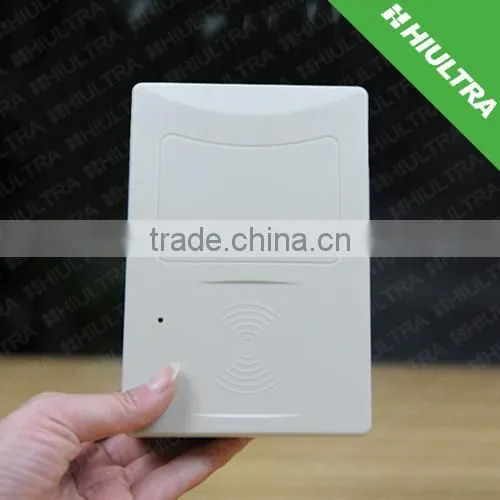

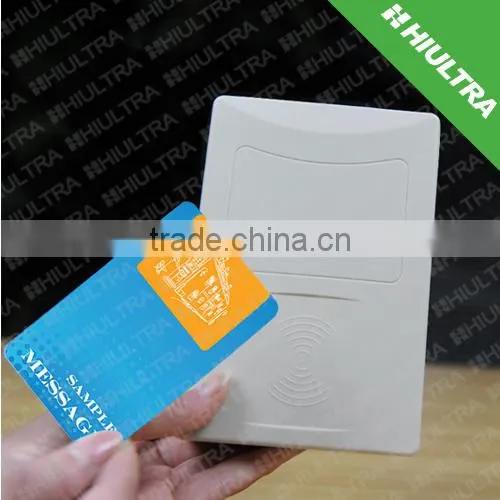

902MHz to 928MHz 865-868mhz (FHSS) UHF RFID Reader

Name: 902MHz to 928MHz 865-868mhz (FHSS) UHF RFID Reader
Brand: Hiultra
SKU: 102800913
Availability: InStock

Shandong Mingwah Aohan Smart Tech Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Hiultra

Model Number:

MS-9601H

Payment & Shipping

Payment Methods:

Port of Shipment:

Jinan China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Hiultra

Model Number MS-9601H

Specifications

UHF USB desktop encoder
1) Built-in circularly polarized antenna
2) ISO18000-6B/6C protocol
3) Read& wri

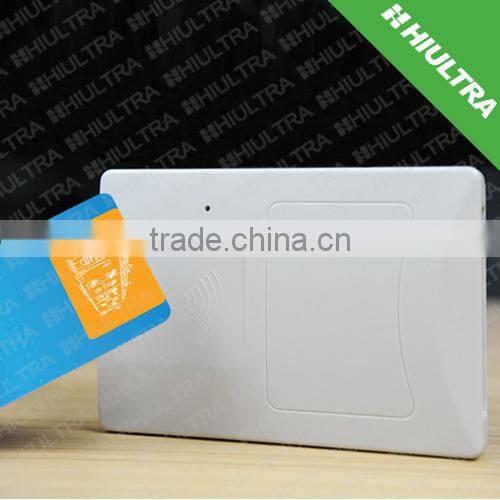

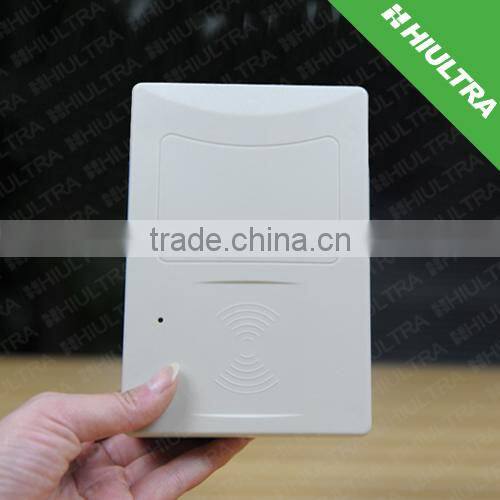

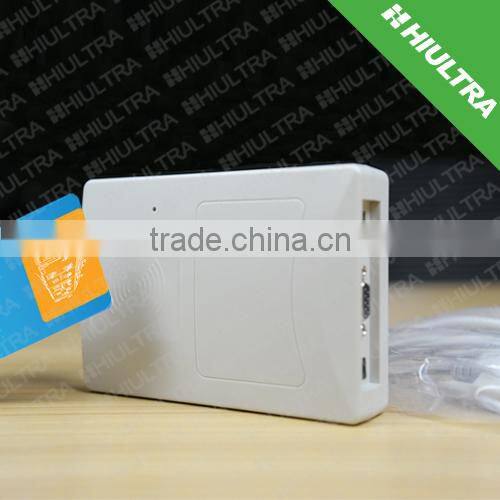

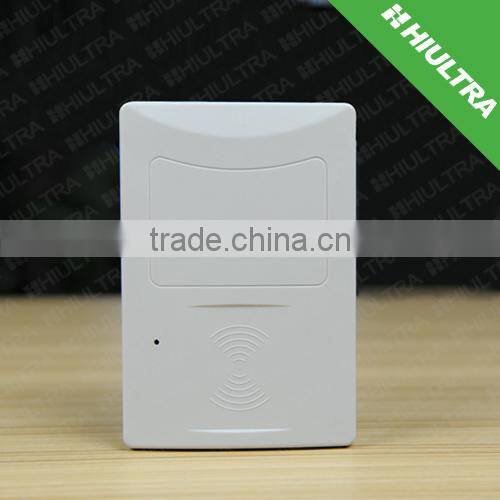

902MHz to 928MHz 865-868mhz (FHSS) UHF RFID reader

Why do you choose us?

&15 years experience in RFID field

&Experienced in RFID software and hardware

&Timely delivery, competitive price and free sample for test

1. Brief Description:

1) Built-in circularly polarized antenna

2) ISO18000-6B/6C protocol

3) Read& write function: read range >6m, write range 60% of read range (depend on different tags)

4) Multi-tag identification, single-tag reading, writing, locking and killing.

2.Performance Characteristics

Basic Parameters
Model	MS-9601H Middle Distance RFID Reader
Dimensions	240mmX240mmX30mm
Weight	1 Kg
Operating Temp	-20°C to +80°C

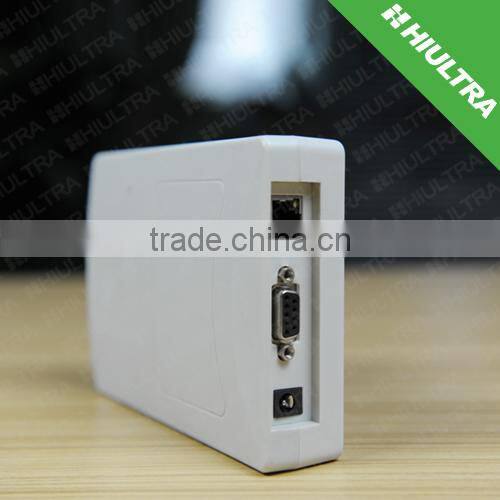

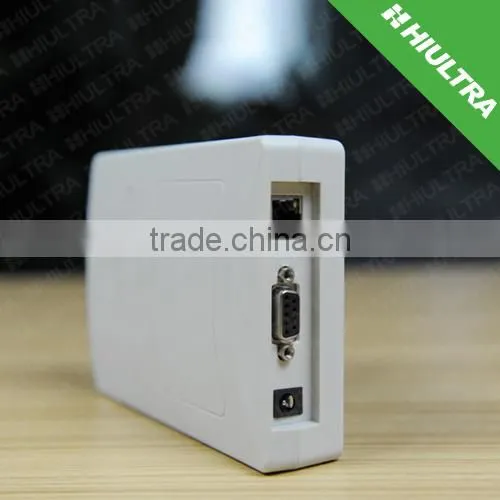

Interface	Standard: Viegand26, Viegand 34, RS485, RS232, set by software Optional: WiFi, RJ45
Data Input Interface	One group Trigger Input
Indicator	Buzzer
Power Supply	DC 9V (equipped with power adaptor)
Certificates	FCC CE CCC
RFID Parameters
Frequency Range	Standard ISM 902~928MHz and ISM 865~868MHz for option, can customized other frequency
Protocols	ISO18000-6B, ISO18000-6C (EPC GEN2)
Work Mode	FHSS
RF Power	0 to 30dBm, adjustable by software
Antenna	Build-in 7dBi circularly polarized antenna
Read Range	>6.0m
Read Mode	Timing reading, triggering reading, set by software
Reading Speed	<6ms per 64 bits, set by software
