trye recycling equipment
Process flow:
waste tyre--cutting loop mouth--cutting strip--cutting dice crushing filtering--magnetic separating filtering--finished products
Processing method:
Physic mechanical crushing method at normal temperature of waste tyre:nochemical raw material is required,no waste gas,washte water and soot are discharged, and the cooling water of the equipment is reused,no emission,equipment noise is within the range specified by the country(GB20055-2006),fineness of rubber powder produced by it is adjustable(10 meshes to 30 meshes),take waste tyre as example,the process is as follows:breaking down,crushing,filtering,magnetic separating,grin-ding,then the finished products are produced.
1.Tyre bead ring cutting off machine
This machine mian to cut the inner dimater of the tyre, and cut the side of the tyre to the next step of segmentation.
Motor power |
Working range |
Working quatity |
Size of figure |
weight of equipment |
2.2kw |
750-1200tyre |
25-30strips/h |
1150*850*1200 |
0.5ton |
2.Tyre bead steel ring seperator
Tyre bead steel ring seperator by double cell extrusion, and the two grooved roller speed differential will ring in the mouth than the wire separation, maintaining good physicalproperties of steel wire, rubber can then use it to avoid environmental pollution.
Motor power |
Working range |
Size of discharge |
Size of equipment |
Weight of euipment |
15kw |
1 mouth of tyre need1 miutumines |
1.2*500*20 |
1500*1100*1200 |
1.8ton |
3.tyre strips cutting machine
Strips cutting machine can cut cycle machine to remove the wire tire sidewall cut into strips, and the width of the adjustable section. Two circular knives for specialmaterials, hard and durable, can be used repeatedly grinding for no more than 1200 steel tires.
Motor power |
Working range |
Working diamater |
Size of discharge |
Size of equipment |
Weight of equipment |
5.5kw |
10strips/h |
Less 1200 |
35-55 |
1230*650*1580 |
0.8ton |
4.yre rim cutting machine
Cutting machine can cut a tire strip, cut block, tool for the alloy cutting tools, nearly 9-11 tons per day, cutting tools are not sharp and repeated grinding
Motor power |
Working quitaty |
Size of discharge |
Size of equipment |
Weight of equipment |
7.5kw |
0.8-1.5t/h |
35*35*35 |
780*550*1210 |
0.6ton |

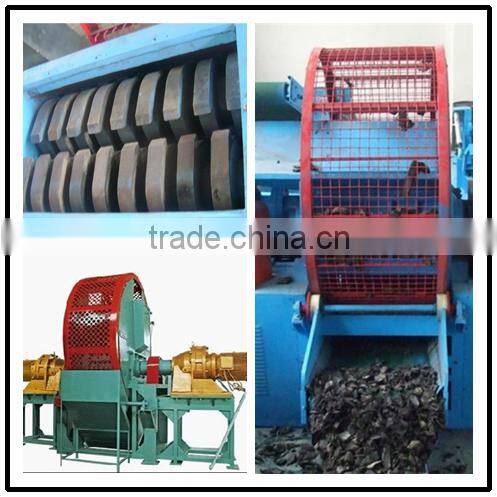

Tyre crushing machine
Waste Rubber equipment consist of the decomposition of waste tire facilities, mill group, screening magnetic powder delivery unit.Through the tyre bead ring cutting off machine, tyre strips cutting machine and the tyre rim cutting machine , first tyre processed into 3.5 cm square pieces; then type on the rubber mill group XKP400/450/560 blocks havebroken ground wire mixed powder, then powder Magnetic conveyor type unit screening will be completely separate wire and tire rubber. By belt conveyor through two sieve bedsfilter out the fine material via magnetic roller, magnetic separation of the wire, the system of 10-degree head -40 mesh fine powder purity (fineness optional). Below standardmesh fineness of powder materials by conveyor to return block grinding mill again, this cycle of advanced grinding technology, without any chemicals, no gas, no water, lowoperating costs. Magnetic effect of 99.9% of steel wire to XKP450 type, for example, the total installed power 80KW, 1 ton per tire processing power around 200 degrees, output200-400 kg per hour (to obtain powder of different fineness, yield also different), is the use of steel wire tire rubber powder produced the best equipment.
