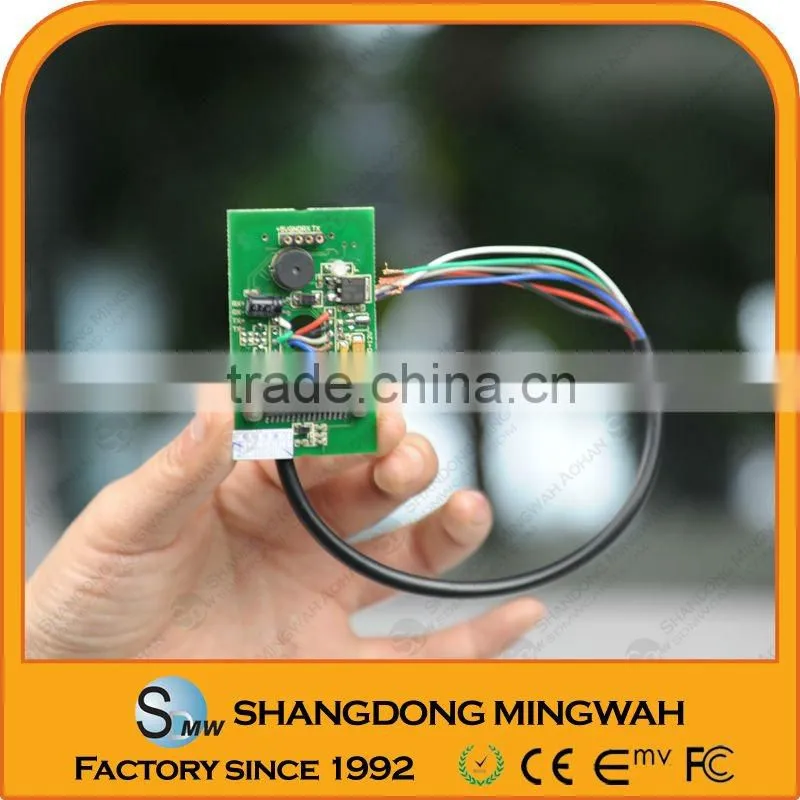

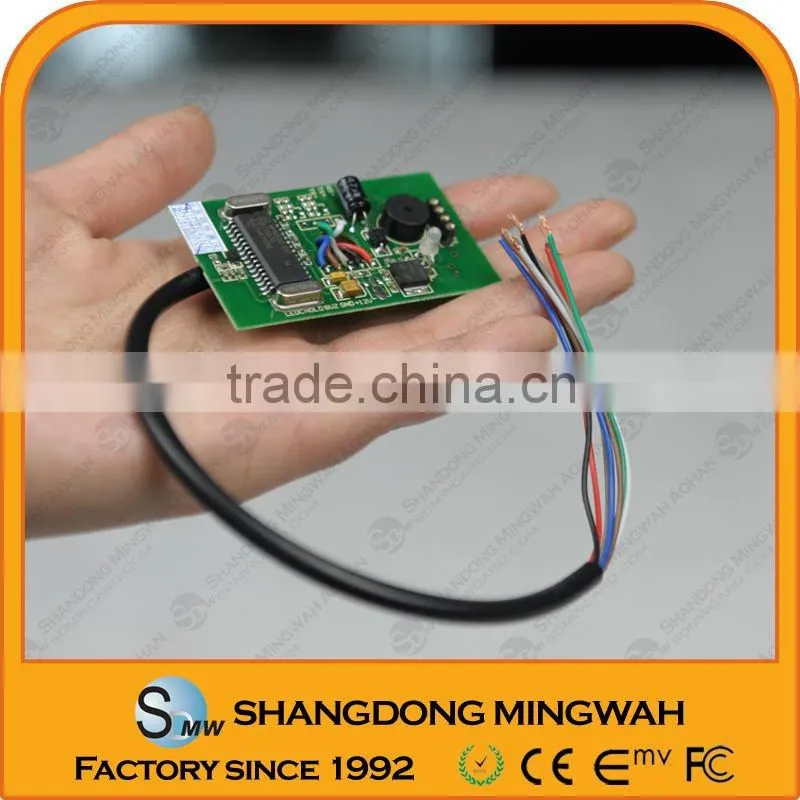

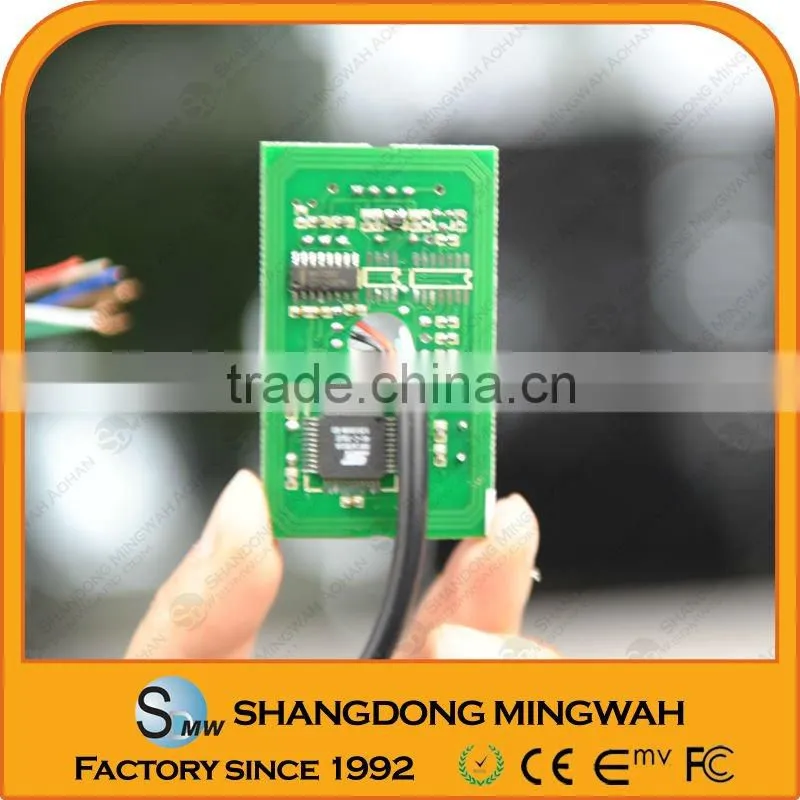

RFID Module With Long Range

Name: RFID Module With Long Range
Brand: Mingwah
SKU: 102798345
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Mingwah

Model Number:

MS-X9501 rfid UHF read module

Shandong Mingwah Aohan Smart Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Jinan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Mingwah

Model Number MS-X9501 rfid UHF read module

Specifications

RFID Module With Long Range
1.Interface: TTL
2..Sample in stock to test
4.timely delivery

RFID Module With Long Range

Product features

1, Small size can embed in a variety of products need to read and write RFID tags;

2, One external antenna or antenna built-in;

3, ISO18000 6B and 6C double protocol;

4, Multi-programming language SDK, easy to upgrade;

Specification
Work frequency	902MHz~928MHz(customizable)
*Protocol support*	*ISO18000-6B,EPC Class 1 GEN 2*
Work mode	FHSS or fixed frequency, adjustable by software
Antenna	Can connect 2 external antenna, MMC interface or antenna built-in
Max. RF output rate	30 dBm
Rate difference	<0.5 DB
Output rate adjust range	20~30 dBm,adjustable by software
Read method	Reading after receiving the command
Card identification time	Single card identification time less than 8ms
Read/write time	Read each 8 bytes less than 5ms,write each 4 bytes less than 25ms
*Interface*	*UART/RS-232,I2C,SPI*
Power	DC 5V
Rate consumption	≤5W
Size	60mm×80mm×2mm
Net weight	40g
Work temp.	-10°C~+55°C
Store temp.	-20°C~+85°C
*Certificate*	*FCC CE RoHS*
