Help CenterRubber Machine for Tire Valve/tyre Valve Curing Press
Related Products
-
Tire Tread Vulcanizing EquipmentUS$ 3,500 - 20,000MOQ: 1 Set -
Shoe Sole High Speed Eva Foam MachineUS$ 1,200 - 4,000MOQ: 1 Set
-
Inner Tube Curing Press / Inner Tube Vulcanizing PressUS$ 2,000 - 20,000MOQ: 1 Set
-
Tyre Curing Press / Tyre Vulcanizing Press /US$ 2,000 - 20,000MOQ: 1 Set
-
Double Mould Tyre Shaping and Curing PressUS$ 20,000 - 70,000MOQ: 1 Set
Specifications
1.High speed open/close mold2.High efficiency and good quality
3. safe and convenient
4.automatic,CE
rubber machine for tire valve :
Brief Introduction
My company is firm engaged in production enterprise, mechanism of rubber has more than 30 years of history.
Companies depend on the technical power, the strict scientific management expertise, product quality and good service, and won the majority of the customer's trust. north oil field, china's aviation industry group, xi'an by the science and technology, yangzhou yizheng rubber products co., harbin to beijing university and tsinghua and other state key projects have to choose a company's products, many of the product is exported to the united states, canada, australia and
We can product all kinds of non-standard rubber machinery,we can design by your requests.

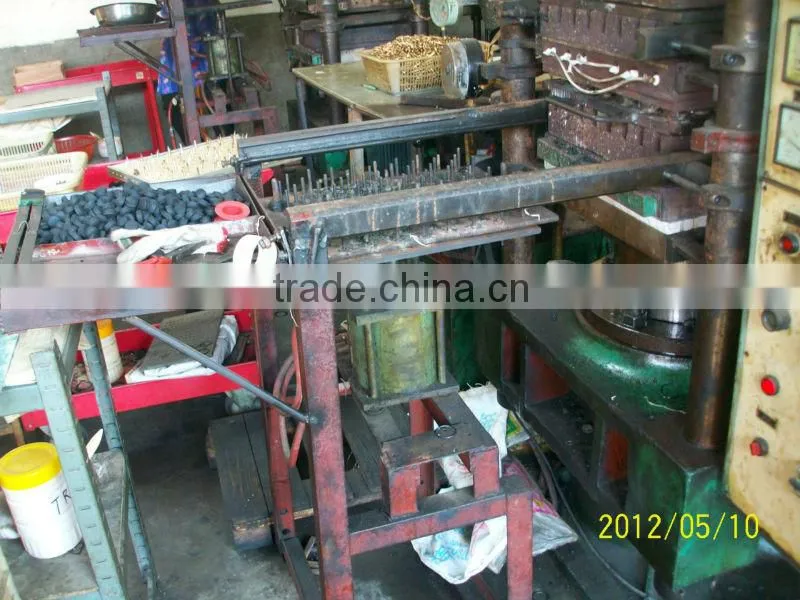

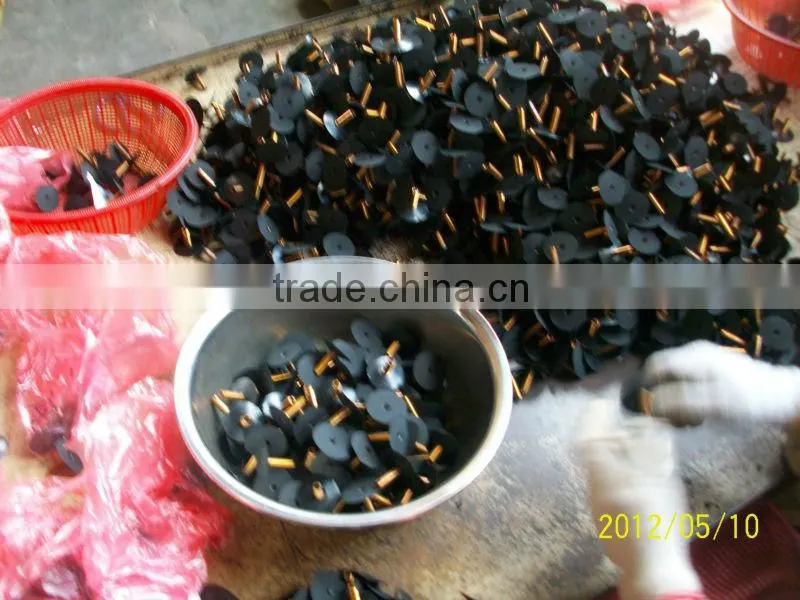

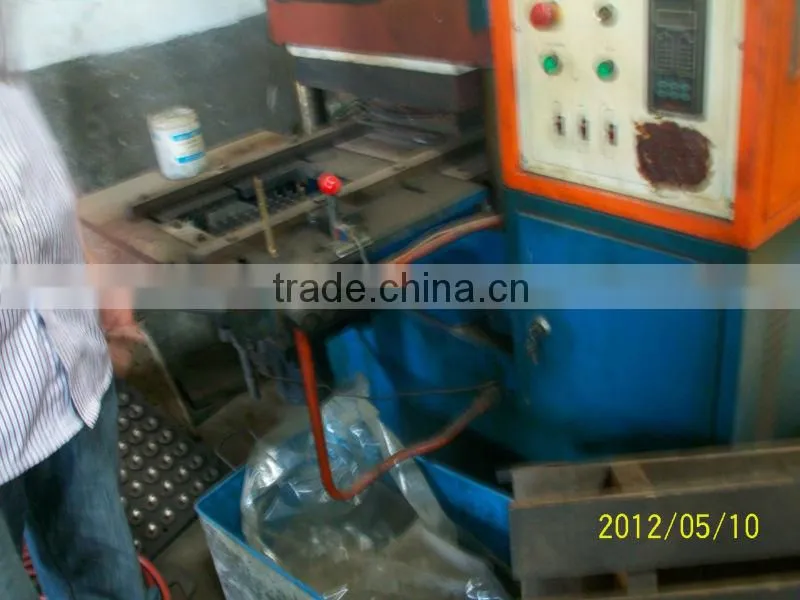

This machine is used to make tire valves
Model |
XLB-D600X600X2/1.0MN |
Total pressure(MN) |
1.0 |
Total working pressure(T) |
100 |
Plate size (mm) |
600×600×60 |
Plate unit pressure(Mpa) |
2.8 |
Daylight (mm) |
290 |
Daylight No. |
2 |
Piston stroke(mm) |
200 |
Clamping speed (mm/s) |
≥20 |
Openning speed (mm/s) |
≥25 |
Hydraulic system pressure (Mpa) |
14.5 |
Piston dia. (mm) |
Φ300 |
Piston quantity |
1 |
Motor power (kw) |
2.2 |
Overall size(L×W×H) (mm) |
2000×800×2000 |
Weight(kg) |
2800 |
Send Inquiry to This Supplier
