Specifications
1-Tyre tread vulcanizing press is used to produce different size of tyre tread, For Old tyre retreading.2-PLC control system
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor intensity and low energy consumption.
tyre tread pattern forming machine mainly used in tire surface forming machine, automatic sulfide has forced open mold, automatic mode, introduced in PLC control can be done automatically mould, vulcanization timing, exhaust time and frequency setting, mould, etc, and is equipped with working cycle is manual control rubber vulcanization products advanced and reliable automation equipment.
Item |
XLB-Q3600*410*4 tyre tread vulcanizing machine |
|
Total pressure |
MN |
6.00 (600T) |
Hot plate size |
MM |
3600*410*60 |
Plate clearance |
MM |
200 |
Piston stroke |
MM |
600 |
Workig layer |
layer |
4 |
Piston number |
set |
6 |
Piston diameter |
MM |
300 |
Structure form |

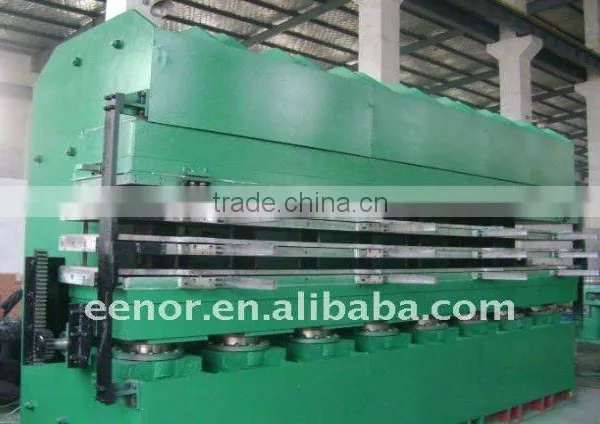

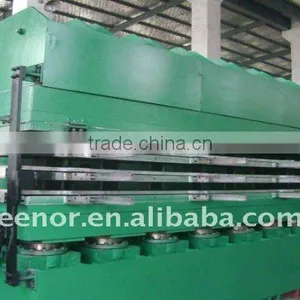

Jaw type (As picture) |
|
Heating mode |
Oil or steam heating |
|
Operation mode |
Automatic PLC system. |
|
Motor power |
kw |
17kw + 5.5kw |
Open speed |
MM/S |
12-15 |
Close speed |
MM/S |
12-20 |
Worktable pressure |
Mpa |
4.06 (40.6kg/m2) |
| Contact |
Mr. Gavin Ding Mobile: 0086 13583283100 |
Factory Name Address& Main Products |
Qingdao Eenor Rubber Machinery Co., Ltd. Binhai Industrial Zone, Jiaonan, Qingdao, China
We manufacture and export reclaimed rubber production line, tire recycling rubber powder production line, hydrulic vulcanizing press, rubber extruder, rubber strainer, rubber refiner, hose extruder, rubber tile vulcanizing press, rubber mat machine, tyre curing press, rubber sheet vulcanizer, inner tube vulcanizer, conveyor belt production line, conveyor belt jointing press, V belt production line, rotary curing press, rubber kneader, rubber calender, rubber cooling machine, rubber hose production line and other rubber machinery. |
Skype, MSN,G-talk&Email |
Skype: dingqinpeng MSN: dingqp <at> G-talk: dingqinpeng <at> Email: sales27 <at> |
Our motto: The honesty is the root, a promise is a promise.
