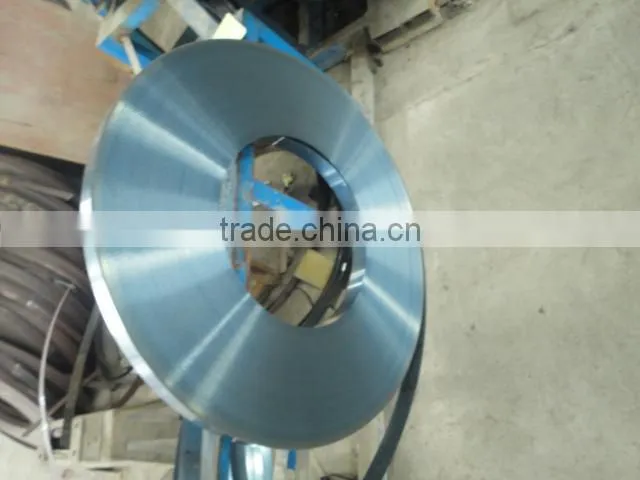

Help Center65MN COLD ROLLED SRPING STEEL STRIP
Related Products
-
C75, C67, 65Mn, 50#, C75Cr1, C75s Spring Steel StripUS$ 800 - 1,200MOQ: 5 Tons -
C75, C67, 65Mn, 50#, C75Cr1, C75s Spring Steel Strip With Hardened and TemperedUS$ 800 - 1,200MOQ: 5 Tons
-
C75, C67, 65Mn, C75Cr1, C75s Spring Steel StripUS$ 800 - 1,200MOQ: 5 Tons
-
Blue Rolling Shutter Door Spring Steel StripUS$ 800 - 1,200MOQ: 5 Tons
-
Blue Rolling Shutter Spring Steel Strip With Round EdgeUS$ 800 - 1,200MOQ: 5 Tons
Specifications
1. Good flatness2. Good straightness
3. Good round edge
4. Uniform hardness
5. Good and uniform color

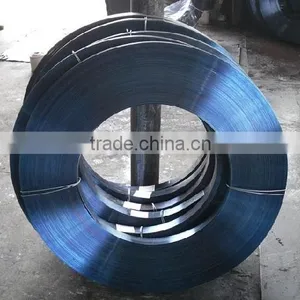

Rolling Shutter Spring Steel Strip
1. Material: C75, C67, 65Mn, 50#
2. Finish: Black; Grey blue; Polised Blue
3. Edge: Both side round edge
4. Hardness:43-49HRC as customer's requirements
5.Thickness: 1.2mm, 1.25m, 1.3mm, 1.4mm, 1.5mm, 1.6mm
6. Width: 45mm, 50mm, 55mm, 60mm
7. Strength of extension : ≥1450 Mpa
8. Percentage elongation : ≥ 4.5 %

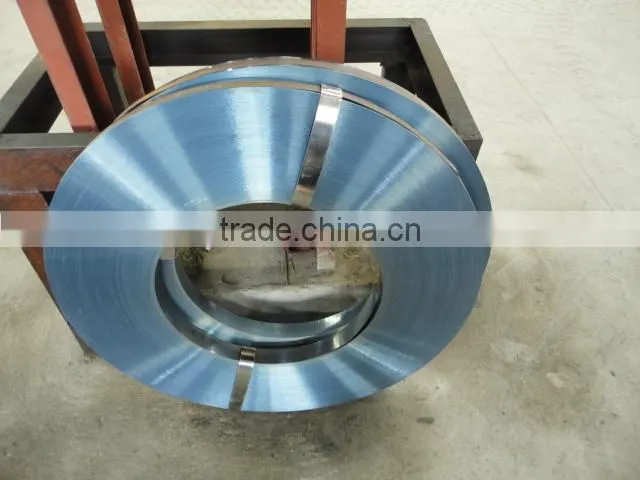

GOOD COLOR

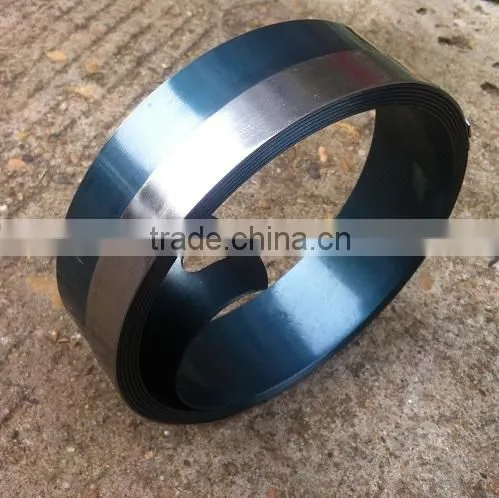

GOOD ROUND EDGE
Products range | |||||||
Sort (strip,coil) |
Grade base on Din standard |
Hardness<20HRC |
Hardness21-28HRC |
Hardness29-55HRC |
|||
Annealed |
Cold rolled |
Hardened and tempered |
|||||
Thickness |
Width |
Thickness |
Width |
Thickness |
Width |
||
Carbon steel |
Q195, Q235, Q295, Q345 |
0.35-3.0mm |
32-630mm |
0.35-3.0mm |
32-630mm |
0.35-3.0mm |
32-300mm |
High carbon Steel |
CK50 / CK60 |
0.15-2.5mm |
8-600mm |
0.15-2.7mm |
8-650mm |
0.15-2.5mm |
8-300mm |
Spring carbon steel |
CK67,CK70,CK75, C75Cr1 |
||||||
Alloy spring steel strip |
50CrV4, 60Si2Mn |
0.2-2.2mm |
8-180mm |
0.2-2.2mm |
8-180mm |
0.2-2.2mm |
8-180mm |
Stainless spring steel |
3Cr13-6Cr13, 420J2, 420J3 |
0.2-2.5mm |
8-150mm |
0.2-2.5mm |
8-150mm |
0.2-2.5mm |
8-150mm |
Edged process |
Mill edge, slit edge, both rounded, one side round, one side slit, square etc. |
||||||
Finished surface |
Polished ( Blue, Yellow, White, Grey-blue, Black, Bright) or Nature etc |
||||||
Tolerance |
Thickness: +/-0.03mm max; width: +/-0.1 mm max |
||||||
Our products are widely apply to automobile industry, electrical machine, stationary, rolling door, standard parts, clockwork feed. Such as various mud trowels, wood working band saws, automatic clutch patches, rolling shutter springs, horologe clockwork springs, lock making, shoes materials, hook materials, spin standard stamping, industrial knives, shims and washers for automobiles, petroleum fasteners, bearings and others.

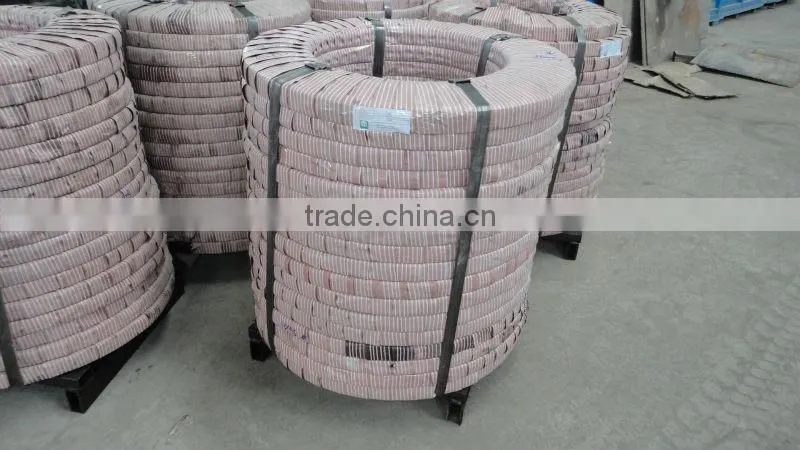

Packing each bundle with anti-rust paper and light oil then wrapped in plastic film with metallic pallet and put in 20ft container for standard sea worthy.
We do everything we can to achieve and offer our clients
- Prompt delivery
- High constant quality level
- Competitive price
- Reliablity
- Cooperate flexibility and innovational readiness
Established in 2002, Fengcheng Shunda Co., Ltd. is one of the largest companies that integrate in developing and researching, producing and selling steel strip. Our main products include Carbon Construction Steel, Carbon Tool Steel, Spring Steel, Alloy Tool Steel, Alloy Construction Steel, Chilled Hardened Steel, Cold rolled steel strip, which exported to Europe, America, South-east Asia and Middle East areas.
Our factory is located in High-tech Industry zone, Fengcheng city, Jiangxi province, China, which covers more than 10,000 square meters with more than 100 energetic staff. By taking advantage of the advanced hardening and tempering facilities and technology, and combining our professional manufacturing experience, we have been an entity with large-scale production ability which can supply more than 6,000Mts steel strip a year.
Our company has a whole system of quality control and customer service, using advanced testing equipment to guarantee product quality. All our departments optimize the process to serve and satisfy customers. Our continuing pursuit of first-rate quality, competitive price and comprehensive after-sales service offers both potential and long standing clients confidence in us.
Contact us
Candy Huang
Mob: +86-182-7955-0008
Email: shundasteel at
Skype: huangfenhaohao
Office Tel: +86-(0)795-6553666
Office Fax: +86-(0)795-6553788
