Specifications
1-Tyre tread vulcanizing press mainly use to produce different size of tyre tread, for old tyre retreading.2-PLC control
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor
intensity and low energy consumption
Tyre tread vulcanizing machine / plate vulcanizer:
1-make various of rubber tread, for retreading.
2-automatic PLC system.

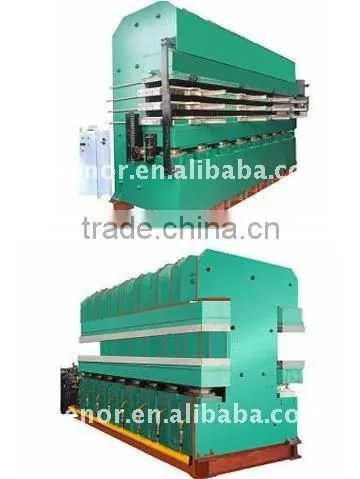

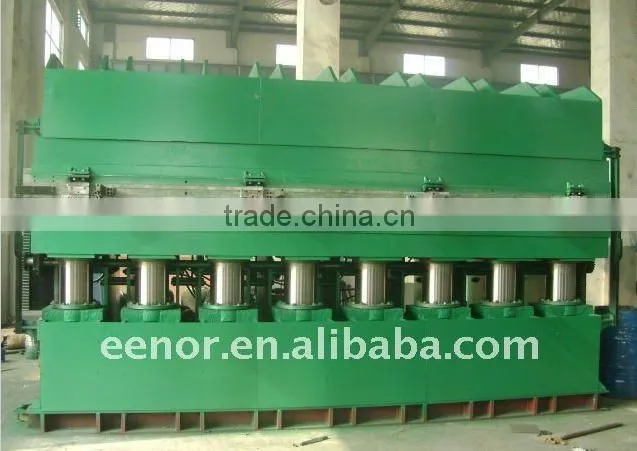

Tyre Tread Vulcanizing Machine / Plate Vulcanizer
Aplication:
1. Two dual-action cylinders for fast mold open / close;
2. Provided with mass flow prefill valve;
3. Automatic mold forward / backward;
4. PLC controlled;
5. Unit area pressure no less than 45kg/cm ² to ensure the density of the tyre-surface
6. Multiple options of layer number and tables;
7. Hydraulic pressure components and electrical equipment imported or of local famous brand, to ensure reliable performance.
8. We also can according to the customers' requirement, and design the nonstandard type of tire tread vulcanizing machine.
Main technical parameters:
NO. |
Type |
XLB-Q4100x460x5, Jaw type("C" shape) |
|
1 |
Total pressure |
MN |
7.00 (700 Tons) |
2 |
Plate size |
mm |
4100x460x70 |
3 |
Plate clearance |
mm |
125 |
4 |
Diameter of pistons |
mm |
285mm |
5 |
Number of piston |
Set |
7 sets |
6 |
Piston stroke |
mm |
600 mm |
7 |
Working layer |
5 layers |
|
8 |
Plate pressure |
Kg/cm2 |
37.0 kg |
9 |
Operation system |
PLC and touch screen control panel Brand: Mitsubishi |
|
10 |
Heating mode |
|
Steam or oil |
|
Remarks: 1. The machine has automatic alarm, opening and closing molds. Automatic fill pressure, Automatic exhaust, curing time etc. 2.we also can according to the customers' requirement, and design the non-standard type of tyre tread vulcanizing machine. | |||
| Contact |
Mr. Gavin Ding Mobile: 0086 13583283100 |
Factory Name Address& Product |
Qingdao Eenor Rubber Machinery Co., Ltd. Binhai Industrial Zone, Jiaonan, Qingdao, China We manufacture and export reclaimed rubber machine, tire recycling rubber powder production line, hydrulic vulcanizing press, rubber extruder, rubber strainer, rubber refiner, rubber tile vulcanizing press, rubber mat machine, conveyor belt production line, conveyor belt jointing press, V belt production line, rotary curing press, rubber kneader, rubber calender, rubber cooling machine, rubber hose production line and other rubber machinery. |
Skype, MSN, G-talk&Email |
Skype: dingqinpeng MSN: dingqp <at> G-talk: dingqinpeng <at> Email: sales27 <at> |
Item |
XLB-Q3600*410*4 tyre tread vulcanizing machine |
|
Total pressure |
MN |
6.00 (600T) |
Hot plate size |
MM |
3600*410*60 |
Plate clearance |
MM |
200 |
Piston stroke |
MM |
600 |
Workig layer |
layer |
4 |
Piston number |
set |
6 |
Piston diameter |
MM |
300 |
Structure form |
Jaw type (As picture) |
|
Heating mode |
Oil or steam heating |
|
Operation mode |
Automatic PLC system. |
|
Motor power |
kw |
17kw + 5.5kw |
Open speed |
MM/S |
12-15 |
Close speed |
MM/S |
12-20 |
Worktable pressure |
Mpa |
4.06 (40.6kg/m2) |
Our motto: The honesty is the root, a promise is a promise.
