Specifications
The conveyor belt vulcanizing press is used to make rubber belt, textile core conveyor belt, different kind of conveyor belt.Good quality with reasonable price. Easy operation with convenient maintenance. Low labor
intensity and low energy consumption.
Conveyor belt vulcanizing press / conveyor belt vulcanizer / conveyor belt production line
The conveyor belt vulcanizing press is used to make rubber belt, nylon sulfide conveyor, different kind of conveyor belt.
Our factory always adhere to the honesty is the root, a promise is a promise of business philosophy, adhere to the market as the guidance, providing advanced products and high quality service.
conveyor belt line/whole conveyor belt production machines
We can manufacture the whole conveyor belt production line for our customer.
The features of conveyor belt which produced by the whole conveyor belt production line:
1.Large conveying amount, simple structure;
2. Easy maintainance, high standardization degree, etc;
3.Widely used in mining, metallurgy, coal and other industries;
4.Can be used to transfer bulk materials or materials in pieces

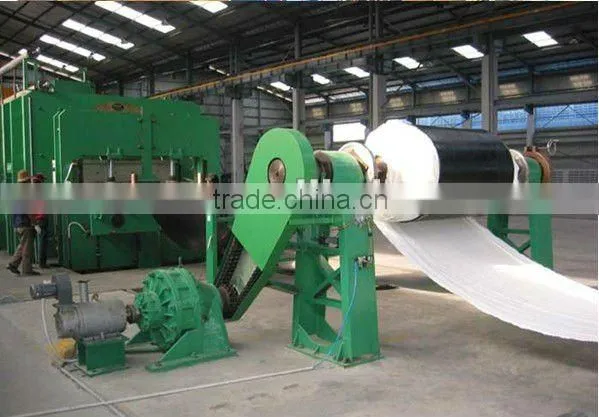

Above photo conveyor belt line we exported to India.

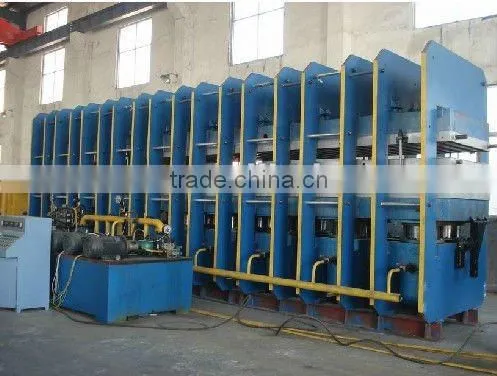

The line of conveyor belt vulcanzing presses are of high automation level and compact advanced structure , suitable to vulcanize giant conveyor belt such as nylon conveyoor belt . common conveyor blet. anti-fire conveyor belt , wire rope conveyor belt etc.
1-Conveyor belt vulcanizing machine is use to make rubber conveyor belt.
2-PLC operation system.
3-Good quality, Low price.
Performance introduction:
1). It is controlled by PLC and touch screen for manual control and auto control. The auto control can realize many auto works such as mould closing, air exhausting, temperature control, vulcanization timing, alarming and discharging load when mould opening etc; the touch screen will timely show the temperature of the heating platen at each heating zone.
2) .The hydraulic cylinder is made of ZG270-500, the ram is made of close-grained chilled alloy cast iron by casting and fine grinding; the hydraulic cylinder is well sealed by YX shape sealing ring.
3).The guard edge of heating platen adopts hydraulic pressure automatic prop up iron, under the function of four oil cylinder, the iron cushion at two sides of the lower platen will advance and retreat at the same time; there are anti-superpose iron cushion device at the two sides of platen.
4) .There is a set of valve group of temperature adjuster on each heating area for the platen. Under the controlling of PLC, it can guarantee the even temperature of each heating area.
5) .Hydraulic pressure system: We adopt the famous brand hydraulic pressure station from the domestic and abroad, under the controlling of PLC, it can realize the auto mould closing, air exhausting and load discharging when opening mould.
6).The in-phase balance device of the machine: there is an axis that runs through the machine sets below the platform, gear wheels and racks are designed on the two sides of the axis, which can guarantee the horizontal lifting for the platform.
7).The guiding device for mould closing: it is designed on the two sides of the lower mat platform, there are guiding seats for the frame board and platform, the guiding seats is produced with incline and the incline distance can be adjustable by the prop up screw.
8).Mould opening booster: during the mould opening, the four oil cylinder below the platform will start working and forcibly pull down the platform, which can prevent the mould from sticking.
type |
XLB-1400X5700X2 |
XLB-1400X10000X1 |
XLB-1600X10000X2 |
XLB-1800X8000X2 |
XLB-1800X12000X2 |
XLB-2000X10000X1 |
Plate size(mm) |
1400X5700 |
1400X10000 |
1600X10000 |
1800X8000 |
1800X120000 |
2000X10000 |
Total pressure(MN) |
25.00 |
49.00 |
56.00 |
51.00 |
74.00 |
70.00 |
Pressure unit of platen |
3.13 |
3.5 |
3.5 |
3.54 |
3.4 |
3.5 |
Ram. Dia. |
360 |
450 |
450 |
600 |
500 |
600 |
Ram number |
10 |
20 |
18 |
12 |
18 |
16 |
Max. ram stroke(mm) |
400 |
300 |
400 |
600 |
400 |
300 |
Clamping force(MN) |
0.72 |
0.90 |
1.20 |
1.20 |
1.20 |
1.20 |
Tensioning force(MPA) |
0.60 |
0.80 |
1.10 |
1.00 |
1.10 |
1.00 |
Steam pressure(MPA) |
0.63 |
0.63 |
0.63 |
0.63 |
0.63 |
0.63 |
Pressure of cooling water(MPA) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
Application |
Conveyor belt |
Conveyor belt |
Conveyor belt |
Conveyor belt |
Conveyor belt |
Conveyor belt |
Control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
Above technical parameter is on for your reference. We can also manufacture NON-STANDARD products just as per customers' specific requests.
Our motto: The honesty is the root, a promise is a promise.
