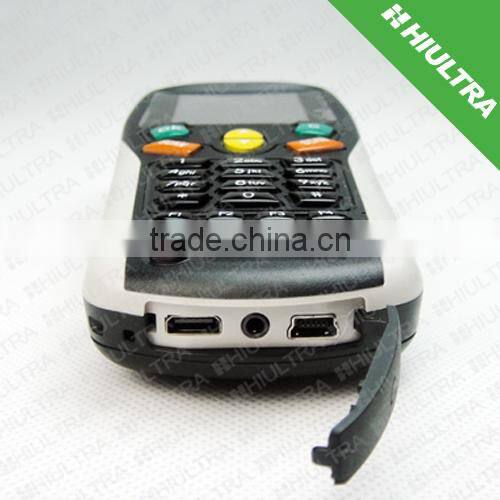

13.56mhz Chip Handheld Terminal, for Inventory

Name: 13.56mhz Chip Handheld Terminal, for Inventory
Brand: Hiultra
SKU: 102793495
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Hiultra

Model Number:

MS-P2200

Shandong Mingwah Aohan Smart Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Hiultra

Model Number MS-P2200

Specifications

13.56mhz chip handheld terminal
1.uhf reader with integrated antenna
2.Long read range
3.Free SDK

13.56mhz chip handheld terminal, original provider with 16 years of experience in RFID

Why do you choose us?

&16 years experience in RFID field

&Experienced in RFID software and hardware

&Timely delivery, competitive price and free sample for test

1. Brief Description:

13.56mhz chip handheld terminal

1) JAVA(MTK6225/6235)& Wince5.0 OS

2) 125KHZ LF & 13.56MHZ HF RFID reader

3) 1D & 2D Barcode reader

4) GPRS,WIFI,Blue Tooth wireless communication

5)Free SDK

2.Performance Characteristics:

Physical Parameters
Dimensions	180mmx68mmx33mm
Weight	400g with battery
Keyboard	27-key with 8 custom function keys
Display	2.4" QVGA 240x320 pixels, 64K TFT-LCD, LED backlight, touch screen
Battery	3.7V/2,000mAh lithium battery
Performance Parameters
Operating System	JAVA (MTK6225/6235 )/Win CE5.0
CPU	S3C2440A@400MHz
Memory	RAM 64MB/Flash 128MB
Audio	Stereophonic double horn speaker
Expansion	TF card Max 4GB; SAM card Max 2
Interface	Mini USB , RS232
Environment Parameters
Operating Temp	0°C to +50°C
Storage Temp	-20°C to +70°C
Humidity	10%RH to 85%RH Non-condensing
RFID
LF
Frequency Range	125KHz
Protocols	ISO11784
HF
Frequency Range	13.56MHz
Protocols	ISO14443/ISO15693
Wireless Data Communication
GPRS	GSM/GPRS (850/900/1800/1900MHz) (option)
WIFI	Option
Bluetooth	Option
Function Modules
Scanner	1D laser scanner, 2D Imager engine (option)
GPS	Option
