Home > Lights & Lighting > LED Interior Lighting > LED Tube > 24w Smd2835 T10 Led Hanging Tube Light

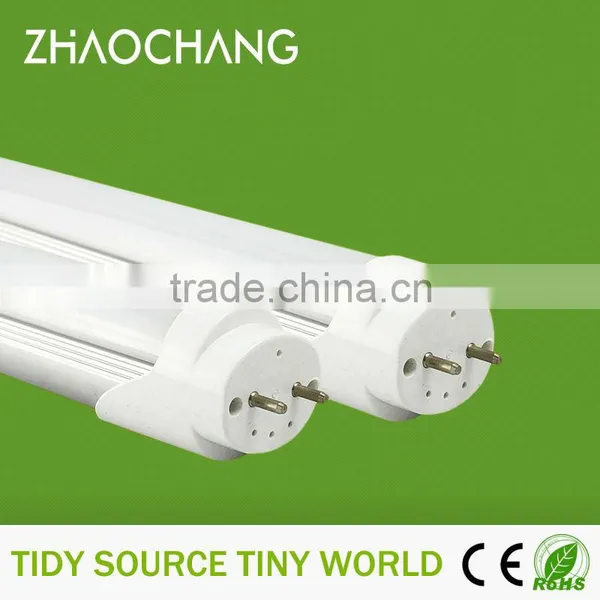

24w Smd2835 T10 Led Hanging Tube Light

Name: 24w Smd2835 T10 Led Hanging Tube Light
Brand: Zhaochang
SKU: 102793111
Availability: InStock

24w Smd2835 T10 Led Hanging Tube Light thumbnail-1

24w Smd2835 T10 Led Hanging Tube Light photo-1

US$ 8.5 - 17.8 MOQ: 1 Piece

Key Specifications

Get Latest Price

LED Light Source:

SMD2835

Warranty(Years):

Input Voltage(V):

AC85-265V

Contact Supplier Request Quote Chat Now

Suzhou Zhaochang Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD2835

Warranty(Years) 3

Input Voltage(V) AC85-265V

Lamp Power(W) 24

Lamp Luminous Flux(lm) 2400

Lamp Luminous Efficiency(lm/w) 100

Color Temperature(CCT) Other, 2700-7000k

Working Temperature(℃) -20, 50

Working Lifetime(Hour) 50000

Lamp Body Material Other, Aluminum+PC

IP Rating IP44

Certification CE, EMC, LVD

Place of Origin Jiangsu, China

Brand Name Zhaochang

Model Number Other, ZC-T10-24W tube10 led tube

Specifications

24w smd2835 t10 led hanging tube light
LED:SMD2835
3 years warranty
2400lm
CE&RoHS

24w smd2835 t10 led hanging tube light

Recommendation:

Model NO.:	ZC-T10-24W
Shape:	Straight
Shade Material:	PC
Lamp Holder/Base:	G13
Shell Type:	Transparent
Certification:	CE
LED Chips:	Epistar
Power:	24W
Item No.:	ZC-T10-24W
Cover Type:	Wave, Clear and Milky Cover
LED Type:	SMD2835
LED Qty:	135PCS
Power Factor(Pf):	>0.95
Power Efficiency:	>85%
Power Consumption:	40W
Lifespan:	>50, 000
Dimension:	26x1200mm
Voltage:	AC85-265V, 110V, 120, 220, 230V,
Export Markets:	Global

Technical parameter:

Shell material: aluminum alloy + PC (clear PC lens, milky PC lens are available).
LED source: SMD2835.
LED chip qty: 110pcs.
Power: 23W.
Luminous flux: 2100lm.
Power input: AC 85-265V.
Power output: DC 20-25V/400mA.
Power factor: 0.95.
Working temperature: -20-50 degree.
Color temperature: 3500-7000K (optional).
Size: 1200 x 26mm.

Advantage:

SMD2835 technique white LED package and advanced heat-sink frame design lowers down chip attenuation.
Use advanced package way make LED's life is much longer than conventional DIP and SMD white LED.
Special light-emitting angle of the mixed design. Light out evenly.
Isolated light source which is more safe.

Application:
1. Instead of the indoors ceiling light
2. School/Universities/Hospital
3. Conference/Meeting room,Show Room
4. Commercial Complexes
5. Factories/Offices
6. Super markets
7. Residential/Institution buildings

Trade term:

1. Payment term: T/T, L/C

2. Sample can be delivered within 5-7days,normal order within 15-30 days

3. Shipping port: Shanghai, China Mainland
4. Warranty: 3 Years

5. Discouts are offered based on order quantities
6. MOQ: 1pc, testing sample order is available
