Specifications
High efficiency u shaped t8 led tubeLED:SMD3014
Pure White
1600-1700lm
CE&RoHS

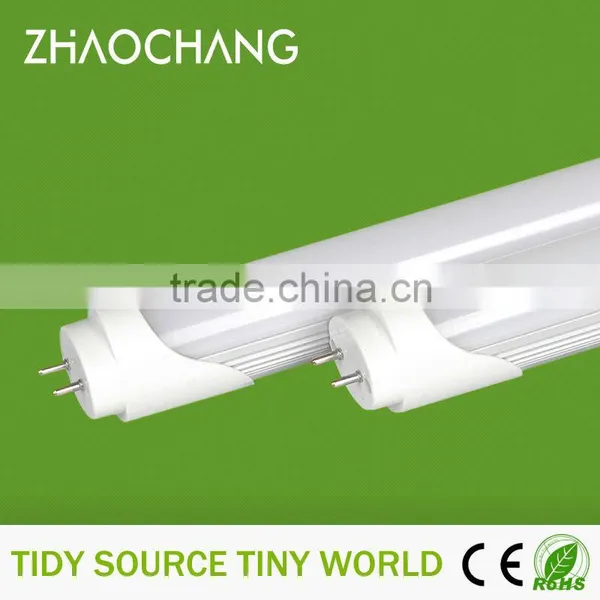

High efficiency u shaped t8 led tube

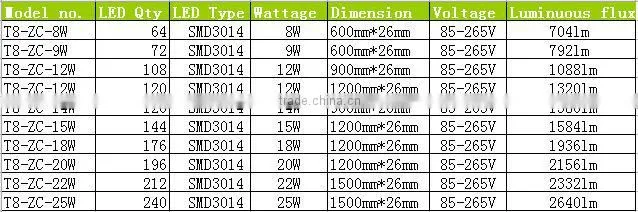

Specifications:
Model NO.: |
T8-ZC-15W |
Shape: |
Straight |
Shade Material: |
PC |
Lamp Holder/Base: |
G13 |
Shell Type: |
Transparent |
Certification: |
CE |
LED Chips: |
Epistar |
Power: |
15W |
Item No.: |
T8-ZC-15W |
Cover Type: |
Wave, Clear and Milky Cover |
LED Type: |
SMD3014 |
LED Qty: |
144PCS |
Power Factor(Pf): |
>0.95 |
Power Efficiency: |
>85% |
Power Consumption: |
15W |
Lifespan: |
>50, 000 |
Dimension: |
26x1200mm |
Voltage: |
AC85-265V, 110V, 120, 220, 230V, |
Export Markets: |
Global |
Technical parameter:
- Shell material: aluminum alloy + PC (clear PC lens, milky PC lens are available).
- LED source: SMD3014.
- LED chip qty: 176pcs.
- Power: 18W.
- Luminous flux: 1700lm.
- Power input: AC 85-265V.
- Power output: DC 20-25V/400mA.
- Power factor: 0.95.
- Working temperature: -20-50 degree.
- Color temperature: 3500-7000K (optional).
- Size: 1200 x 26mm.
Advantage:
- SMD3014 technique white LED package and advanced heat-sink frame design lowers down chip attenuation.
- Use advanced package way make LED's life is much longer than conventional DIP and SMD white LED.
- Special light-emitting angle of the mixed design. Light out evenly.
- Isolated light source which is more safe.
Application:
1. Instead of the indoors ceiling light
2. School/Universities/Hospital
3. Conference/Meeting room,Show Room
4. Commercial Complexes
5. Factories/Offices
6. Super markets
7. Residential/Institution buildings
Trade term:
1. Payment term: T/T, L/C
2. Sample can be delivered within 5-7days,normal order within 15-30 days
3. Shipping port: Shanghai, China Mainland
4. Warranty: 3 Years
5. Discouts are offered based on order quantities
6. MOQ: 1pc, testing sample order is available
