Banbury Intensive Rubber Kneader/Internal Mixer
Dear Customer:
Welcome to our website and hope our products will make you satisfied.
We think creatively,design bravely,manufacture precisely and loyalty to our customers.
And we own our own factory.So We can produce the products according to customer requirements .
You give us a chance, we give you a surprise.
Survive by quality, profit by management, development by creation.
Yours,
Eenor Science&Technology

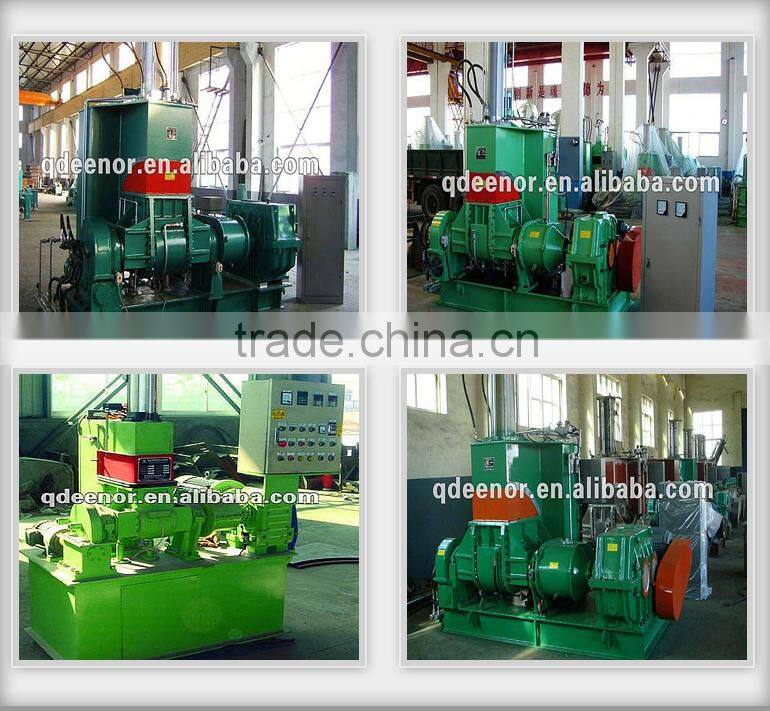

Product Picture
Product Information
Item Model |
X(S)N- 35×30 |
X(S)N- 55×30 |
X(S)N- 75×30 |
X(S)N-110×30 |
|
Total volume of mixing chamber(L) |
75 |
125 |
180 |
250 |
|
Working volume of mixing chamber(L) |
35 |
55 |
75 |
110 |
|
Driving motor power(KW) |
55 |
75 |
110 |
185 |
|
Tilting motor power(KW) |
2.2 |
2.2 |
4 |
4 |
|
Tilting angle(°) |
140 |
140 |
140 |
140 |
|
Rotational speed of the rotor(front/rear)(r/min) |
30/24.5 |
30/24.5 |
30/24.5 |
30/24.5 |
|
Pressure of compressed air(Mpa) |
0.5-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Capacity of compressed air(m³/min) |
≥0.9 |
≥1.0 |
≥1.0 |
≥1.5 |
|
Pressure of cooling water(rubber mixing)(Mpa) |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
0.3-0.4 |
|
Pressure of heating steam(plastics mixing)(Mpa) |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
0.5-0.8 |
|
|
Overall dimensions(mm)
|
L |
3280 |
3280 |
3330 |
3930 |
W |
1900 |
1930 |
2620 |
3000 |
|
H |
2950 |
3070 |
3340 |
3660 |
|
Weight(kg) |
6500 |
7500 |
10500 |
14500 |
|
Total amount |
USD18800 |
USD22000 |
USD25400 |
USD30300 |
|
Main features
1.With completely sealed condition, materials are mixed or plasticated under certain pressure, controllable temperature, which makes high production efficiency and obtains excellentstable quality.
2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to bedispersed uniformly.
3. Surface where is contacted with the materials are all platedwith hard chromium and polished, which is corrosion-resistantand wear-resistant.
4. Jacket construction is adopted in parts that surfaces contactwith materials to achieve excellent
water-cooling or steamheating effect and fit in with the needs of plastics and
rubber processing technology.
5. Feeding from back door on the frame(or a separate top door)is convenient for continuous process operation in aproduction line. The mixing chamber is able to turn forward by 140 aroud the front rotors to discharge and is easy for changingpigments and cleaning the chamber.
6. Programmable logic controller(PLC) is adopted in theelectric-control system, which has reliable
control function andalarm function, and interlock safety-protection function and itis provided with
serial interface of net.
