Help CenterCold Feed Rubber Extruder
Related Products
Specifications

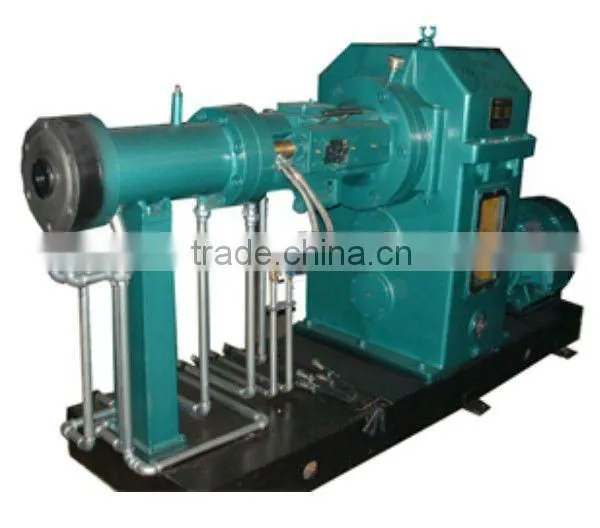

Cold Feed Rubber Extruder is used to extrude half-finished rubber productsPass ISO9001
Reliable and popular in the world
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor intensity and low energy consumption.
The machine is used for extruding half-finished rubber products such as tire tread, rubber pipe, inner tube, cable and feeding rubber, etc.
Without warm-up mill for the extruder, so investment and production cost can be reduced.
Stationary temperature and viscidity rubber materials can be fed continuously, so high precision and homogeneity.
Mounting the extruder has nothing to do with the compound-preparation workshop, more suitable for the company without a mixing workshop.
More use, the extrusion head or screw can be changed to extrude different kinds of rubber products.
| Type | XJW-90 | XJW-120 | XJW-150 |
| Screw Dia. (mm) | 90 | 120 | 150 |
| Max. Screw Speed (r/min) | 45 | 40 | 35 |
| Feeding Roll Dia. (mm) | 72 | 120 | 120 |
| Motor Model & Power | Motor Z4, the power will be decided according to the extrusion head equipped. | ||
| Zone of Hot Water Circulating | 3-4 | 3-4 | 3-4 |
| Max. Total Power of Hot Water Circulation Heating (KW) | 48 | 48 | 48 |
| Capacity (Kg/h) | It will be decided according to the extrusion head equipped. | ||
| Overall Dimensions(mm) (Without extrusion head and hopper) | 3045x2052x1453 | 4250x2290x1490 | 4277x2211x1503 |
| Weight (Kg) | 5000 | 5500 | 8000 |
Our motto: The honesty is the root, a promise is a promise.
