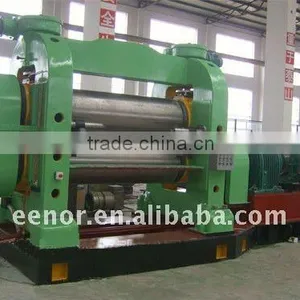

Help CenterVarious Models Rubber Calender With Competitive Price and High Quality
Related Products
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor intensity and low energy consumption.

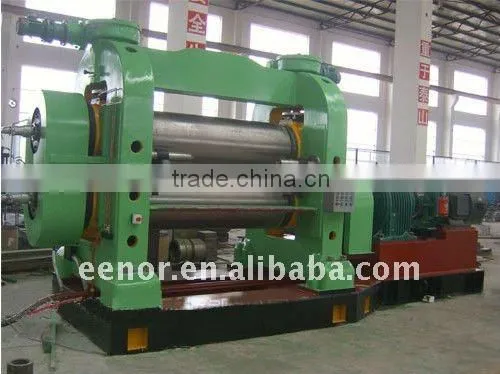

Two-roll rubber calender , we also can manufacture other models rubber calender. Pls feel free to ask us.
1. The use
The machine is mainly used for sheeting of rubber.
2. Construction introduction
The machine is consisted of bedplate, frame, rolls, motor, coupling, speed ratio gear, adjusting spacing device, the adjusting temperature device of roll.
The bedplate is whole model, Installation convenience.
Roll are made of chilled case alloy iron, The working surface of roll is hardness and smoothly. Steam and cooling water can pass through inner of the rolls so that surface temperature can be adjusted.
Roll fluctuation arrange, under roll is initiative roll, motor pass through coupling, To make under roll driving, above roll by under roll pass though speed radio driving.
Roll bearing adopt roll bearing, high precision, long service life, Axes pathway is no abrasion.
Adjusting spacing device is consisted of one left and one right hand wheel. The bearing bases need is moved and reached nip by worm and worm wheel.
There are airproof device inboard the bearing bases. The bearing is lubricated by oil.
|
Model Item |
XY-2I 160x320 |
XY-2I 252x720 |
XY-2I 360x1120 | XY-2I 450x1500 | XY-2I 550x1830 | XY-2I 610x1730 | XY-2I 810x2430 | ||
|
Roll dia |
mm | 160 | 252 | 360 | 450 | 550 | 610 | 810 | |
|
Roll working length |
mm | 320 | 620 | 1120 | 1500 | 1830 | 1730 | 2430 | |
|
Roll ratio |
1: 1 | 1: 1 | 1: 1 | 1: 1 | 1: 1.08 | 1: 1 | 1: 1 | ||
| roll linear speed | m/min | 7.79 | 1.2-12 | 3-20.2 | 2.5-24.8 | 2-18.7 | 4-36 | 2-20 | |
| Adjusting nip range | mm | 0-4.5 | 0-6 | 0-10 | 0-10 | 0-12 | 0-15 | 0.5-25 | |
|
Min. Calendering Product thickness |
mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.5 | |
|
Calendering product width |
mm | 250 | 580 | 920 | 1250 | 1600 | 1500 | 2150 | |
|
Motor power |
kw | 5.5 | 15 | 37 | 45 | 75 | 90 | 160 | |
|
Overall dimensions |
L |
mm | 2200 | 3950 | 5400 | 7113 | 7420 | 5987 | 8690 |
|
W |
mm | 530 | 770 | 1542 | 1595 | 1760 | 1860 | 3139 | |
|
H |
mm | 1470 | 1590 | 1681 | 2446 | 2760 | 2988 | 4270 | |
|
About weight |
t | ~1.2 | ~5 | ~14.5 | ~22 | ~24 | ~30 | ~62 | |
| Contact |
Mr. Gavin Ding Mobile: 0086 13583283100 (WhatsApp & Wechat) |
Factory Name Address& Main Products |
Qingdao Eenor Rubber Machinery Co., Ltd. Binhai Industrial Zone, Jiaonan, Qingdao, China
We manufacture and export reclaimed rubber production line, tyre recycling rubber powder production line, hydrulic vulcanizing press, various tyres making machines, rubber extruder, rubber strainer, rubber refiner, hose extruder, rubber tile vulcanizing press, rubber mat machine, tyre curing press, rubber sheet vulcanizer, motorcycle tyre production line, tyre inner tube vulcanizer, rubber conveyor belt production line, conveyor belt jointing press, V belt production line, rotary curing press, rubber kneader, rubber fender making machine, rubber calender, tire flap vulcanizer, tire making machines, rubber cooling machine, rubber flooring making machine, rubber hose production line, rubber wheel making machine and other rubber machinery. |
Skype, MSN,G-talk&Email |
Skype & Yahoo MSG: dingqinpeng MSN: dingqp <at> G-talk: dingqinpeng <at> Email: sales27 <at> |
Our motto: The honesty is the root, a promise is a promise.
