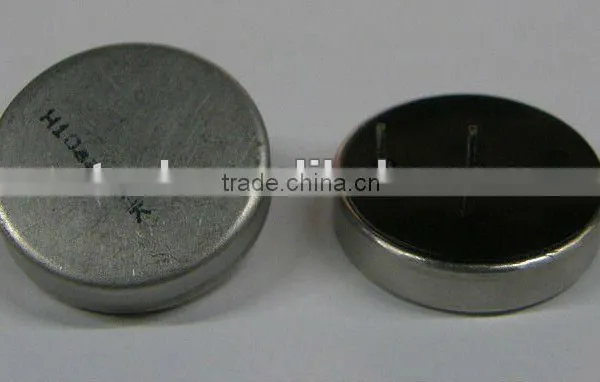

Lithium Button Cell ER2450

FANSO 3.6V LITHIUM BATTERY BUTTON BATTERY ER2450 FOR TPMS

Key Features:

1. Max Dimension: 24.5x4.5mm;

2. Nominal capacity: 500mAh (0.5mA/2.0V)

3. Nominal voltage:3.6V

4. Max constant discharge current: 8mA;

5. Max pulse current: 20mA;

6. Operating temperature range: -55°C~+125°C

Advantages:

1. High energy density

2. High open circuit voltage

3. Wide range of operating temperature

4. Stable operating voltage and current

5. Long operating time

6. Low self-discharge rate (less than 1% per year at 25°C).

Main Applications : TPMS(Tire Pressure Monitoring System)

1. Utility meter (water, electricity, gas meter,AMR)

2. Alarm or security equipment (smoke alarm system, detector)

3. GPS tracking

4. Teal time clock

5. Digital control machine

6. Military

7. Remote monitoring systems

8. Car electronics ( TPMS )
