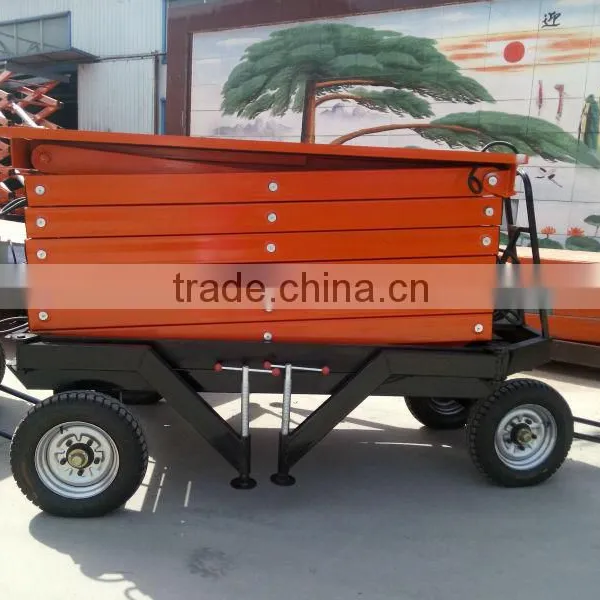

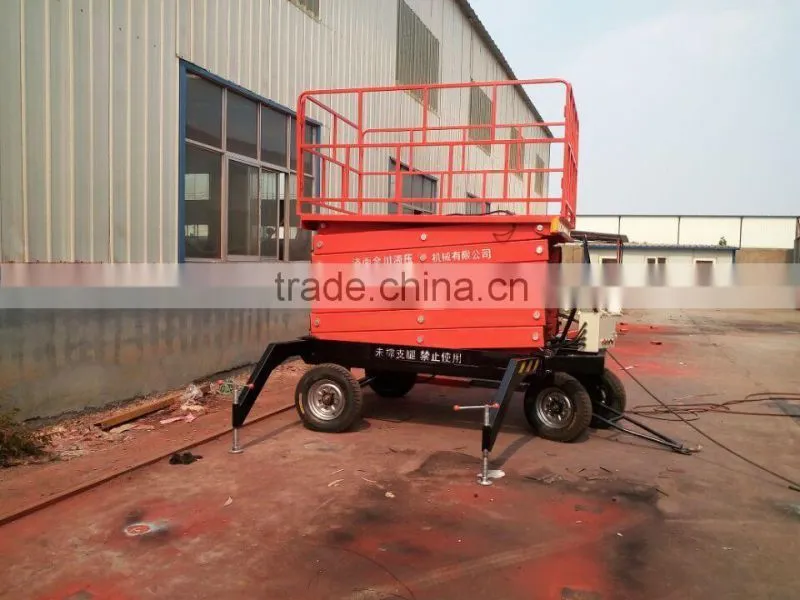

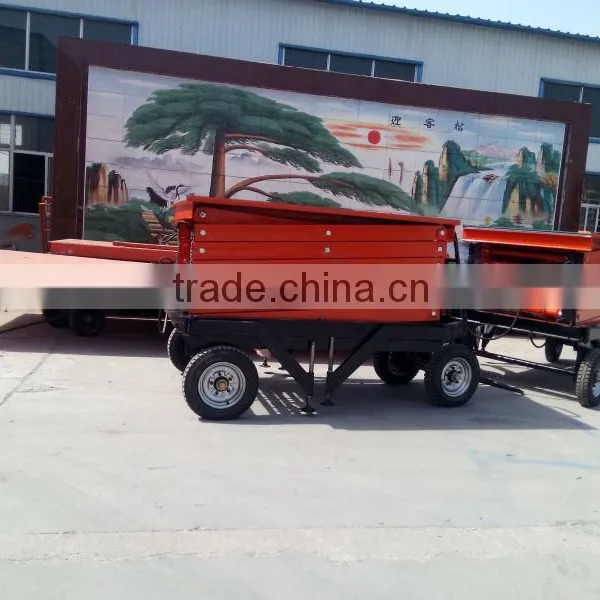

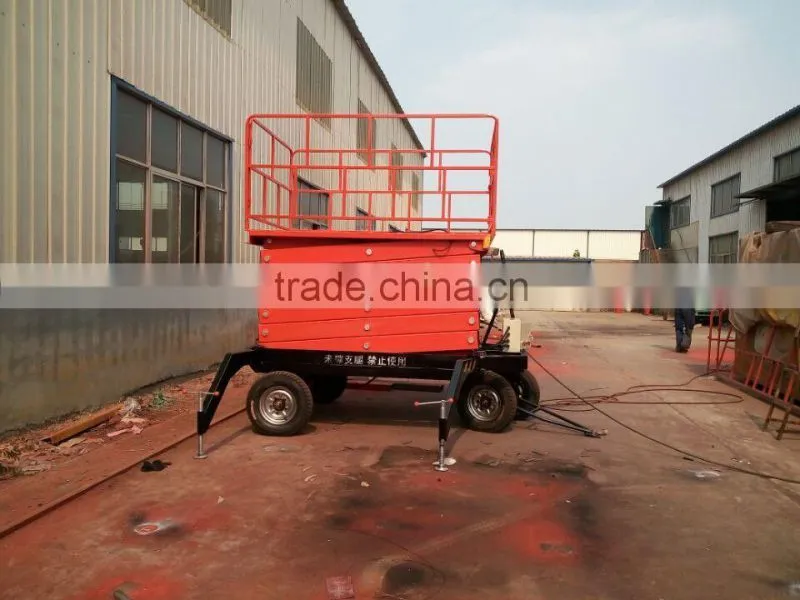

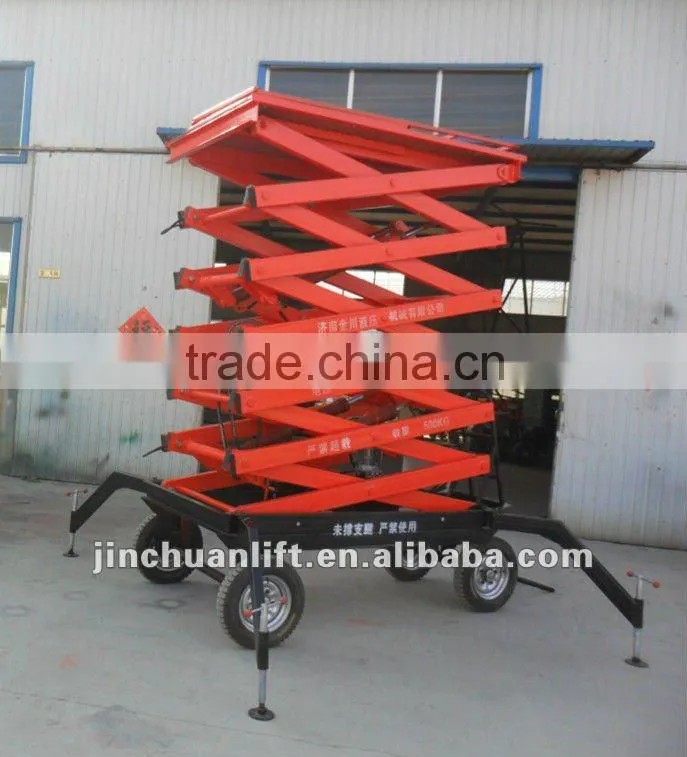

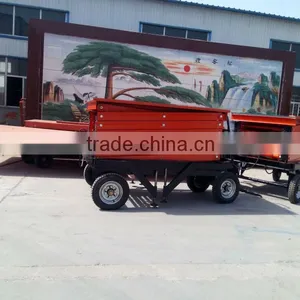

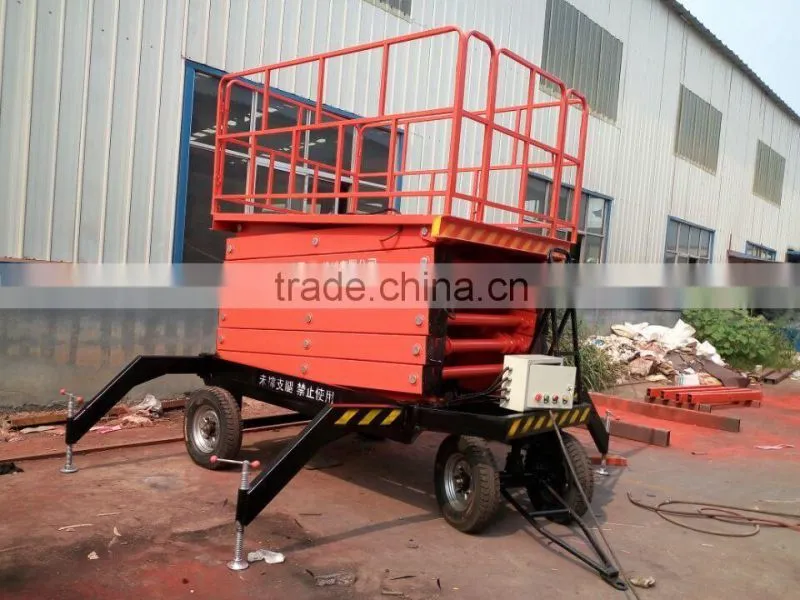

Hydraulic four wheels mobile scissor lift table
(1) Hydraulic four wheels mobile scissor lift table structure generally consists of three parts ,a underframe, scissor body frame and a platform.
(2)Surface material:platform with 5mm tread plate
(3)Underframe:Using a special 16 #U-steel
Scissor body frame:200*100mmmanganese rectangular steel tube
(4)Bearing :Use of Harbin Bearing
(5)Cylinder:The use of special grinding hydraulic cylinder, diameter 90m
(6)Hydraulic tubing:High pressure rubber tube dual-network
(7)Power supply voltage:220v
(8)Hydraulic oil:The use of anti-wear hydraulic oil 32 #
(9)Ring:Brand from Japan Valqua
Note: we can make hydraulic four wheels mobile scissor lift table,lifting weight:300- 1000kg,lifting height:4-18m,we can also according to customer's special request make.
Products List
| Four wheels mobile scissorlift platform | ||||||
| Item | Lifting height(travel) | Working height | Platfoem size | Overall dimension | Power | Weight |
| Model | m | m | m | m | kw | kg |
| SJY0.3-4 | 4 | 5.5 | 1.6*0.75 | 1.7*0.9*1.1 | 2.2 | 400 |
| SJY0.3-6 | 6 | 7.5 | 1.60.75 | 1.7*0.9*1.29 | 2.2 | 650 |
| SJY0.5-6 | 6 | 7.5 | 1.6*0.9 | 1.7*1.15*1.29 | 2.2 | 700 |
| SJY0.3-8 | 8 | 9.5 | 1.7*0.9 | 1.85*1.2*1.35 | 2.2 | 720 |
| SJY0.5-8 | 8 | 9.5 | 1.7*0.9 | 1.85*1.2*1.35 | 2.2 | 750 |
| SJY1.0-8 | 8 | 9.5 | 2*1.2 | 2.4*1.5*1.53 | 2.2 | 1700 |
| SJY0.3-10 | 10 | 11.5 | 2.1*1.2 | 2.6*1.5*1.53 | 2.2 | 1500 |
| SJY0.5-10 | 10 | 11.5 | 2.1*1.2 | 2.6*1.5*1.53 | 2.2 | 1600 |
| SJY1.0-10 | 10 | 11.5 | 2.2*1.5 | 2.65*1.9*1.74 | 2.2 | 2200 |
| SJY0.3-12 | 12 | 13.5 | 2.53*1.5 | 2.95*1.95*1.75 | 3.0 | 2580 |
| SJY0.5-12 | 12 | 13.5 | 2.55*1.5 | 3*1.95*1.85 | 3.0 | 2700 |
| SJY1.0-12 | 12 | 13.5 | 2.6*1.5 | 3.2*2*2.13 | 3.0 | 3400 |
| SJY0.3-14 | 14 | 15.5 | 2.75*1.5 | 3.25*1.95*1.97 | 3.0 | 2900 |
| SJY0.5-14 | 14 | 15.5 | 2.98*1.5 | 3.3*2*1.97 | 3.0 | 3000 |
| SJY1.0-14 | 14 | 15.5 | 3*1.6 | 3.4*2.2*2.3 | 3.0 | 3600 |
| SJY0.3-16 | 16 | 17.5 | 3*1.5 | 3.6*2*2.3 | 3.0 | 3650 |
| SJY0.5-16 | 16 | 17.5 | 3.2*1.5 | 3.6*2*2.3 | 3.0 | 3700 |
Finished products

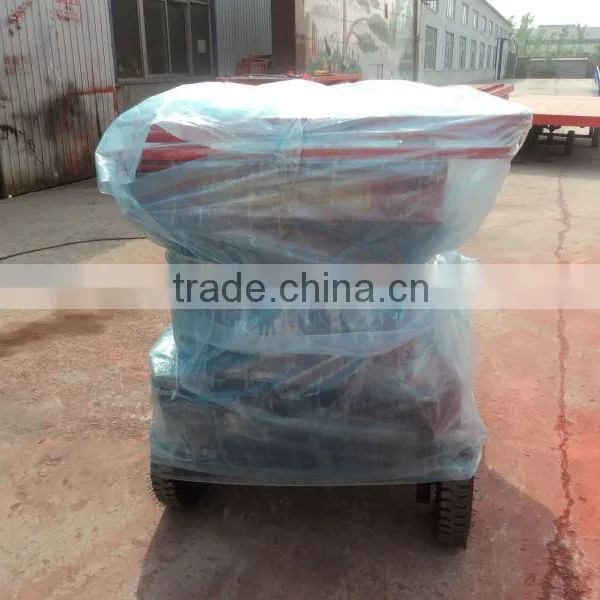

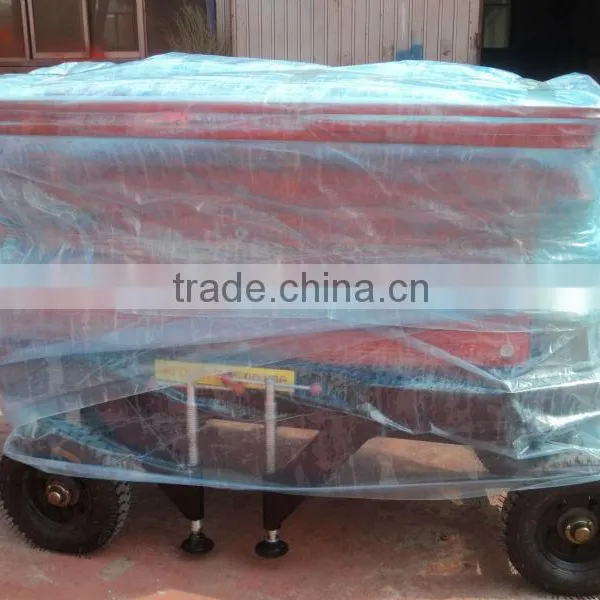

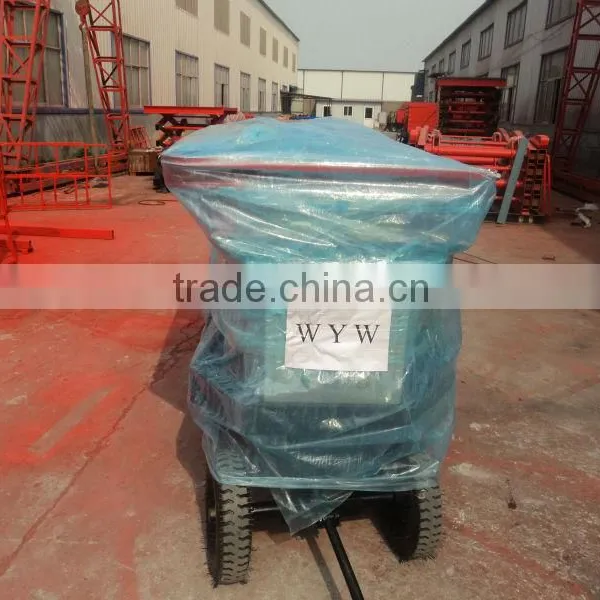

1.Package

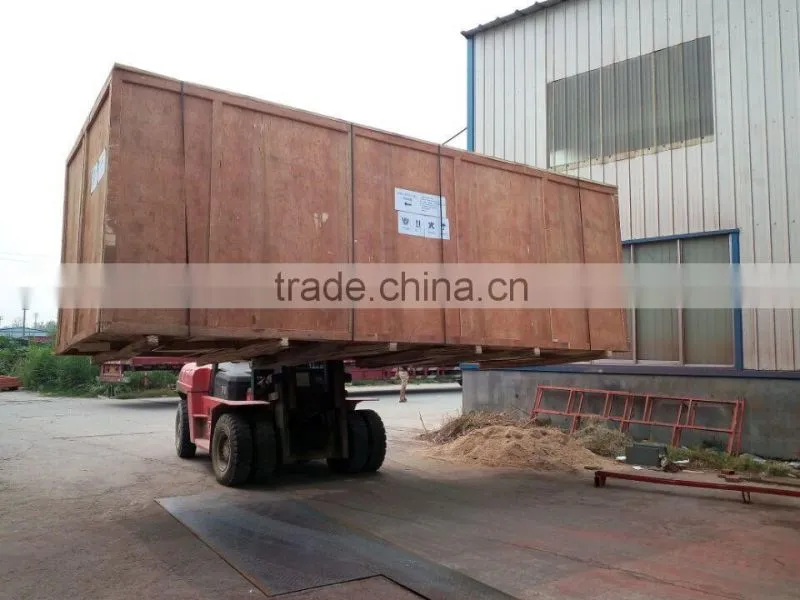

We use plywood to make standard case to load machine and there is no need to do customs fumigation when machine reach port
And of course we accept other package ways after you send us your requirement.

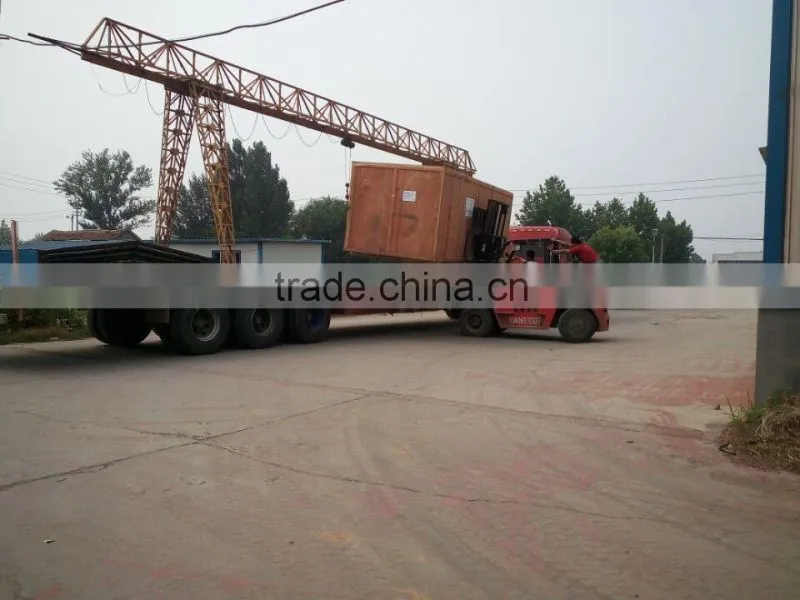

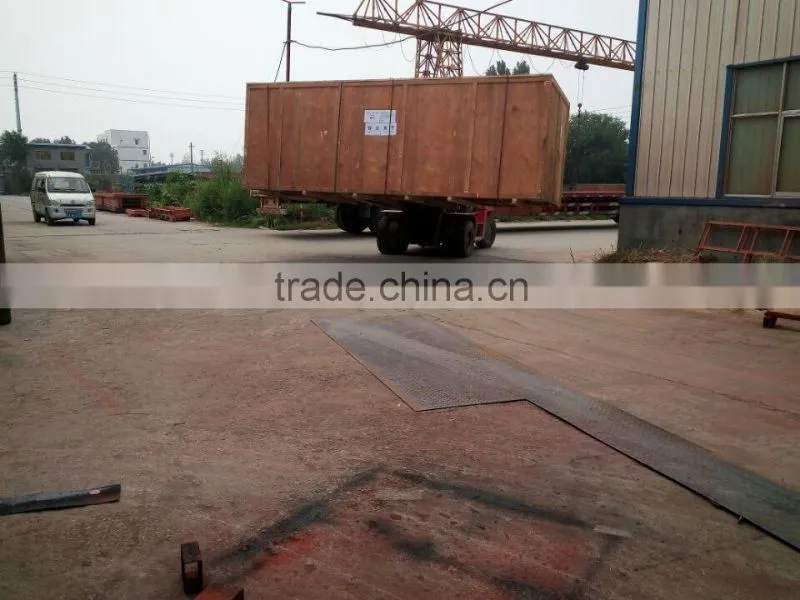

2.Shipping
We generally quote FOB price.About the shipping ,we promise to deliver goods within 7 days after receive payment.If the quantity of machine is small,we will do LCL and FCL if your order is one container.The shipping price will adjust according to the shipping
company's information
