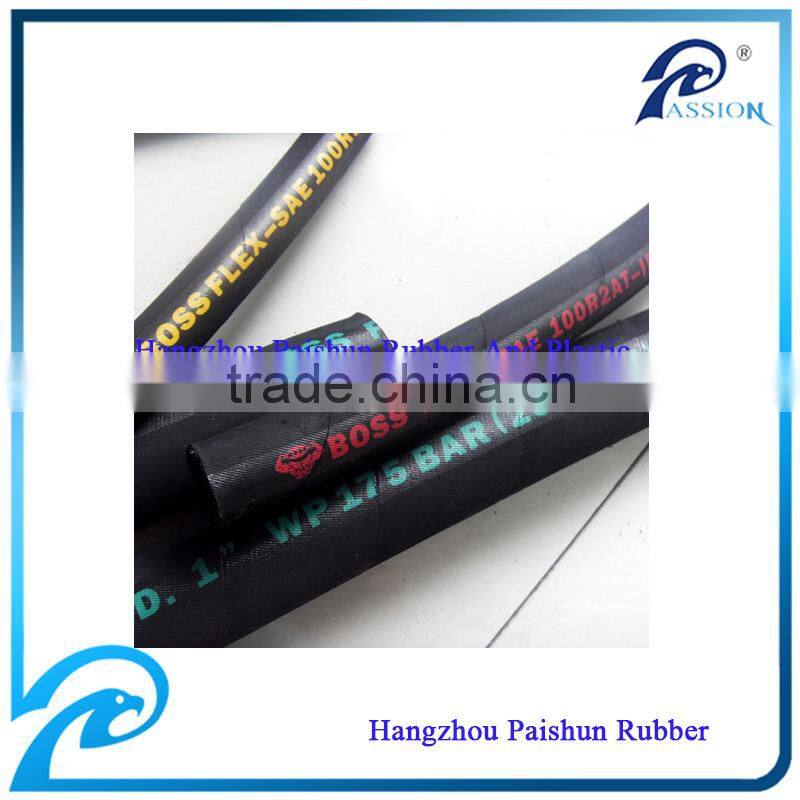

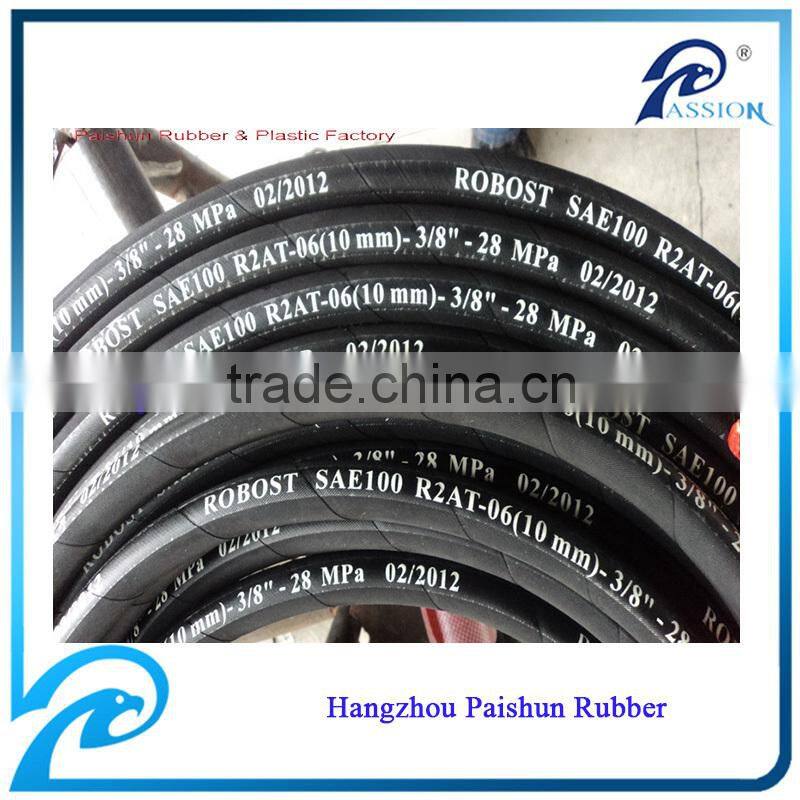

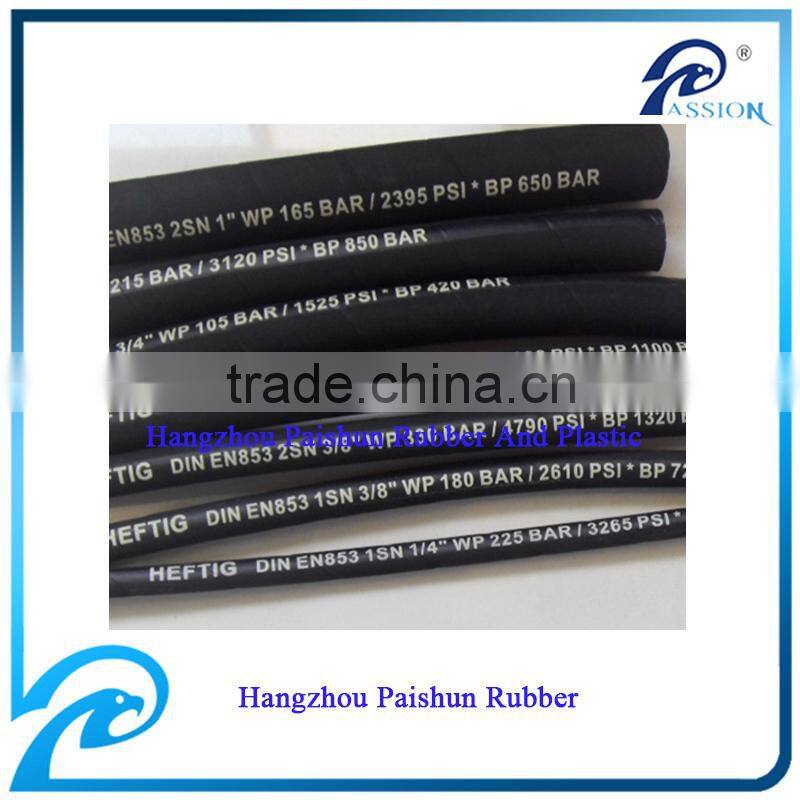

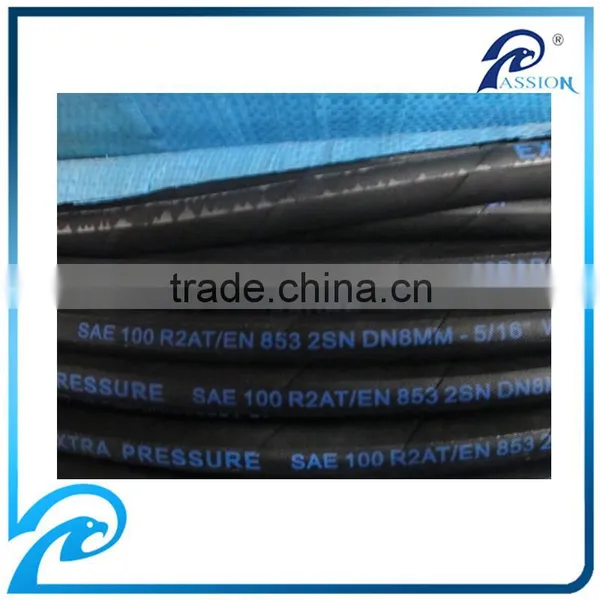

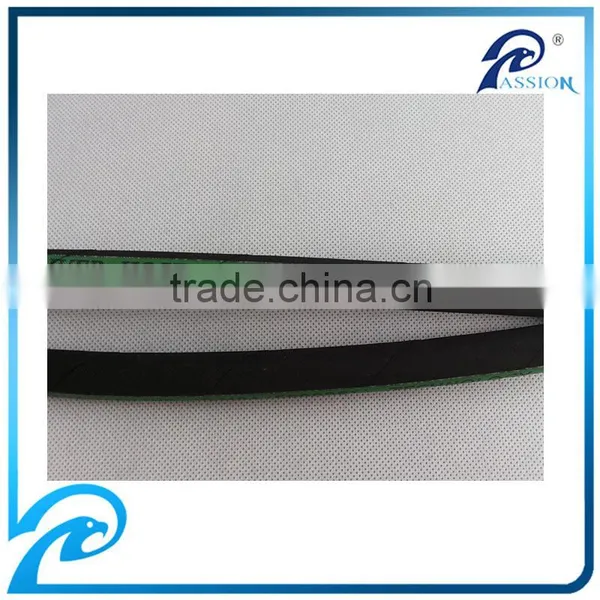

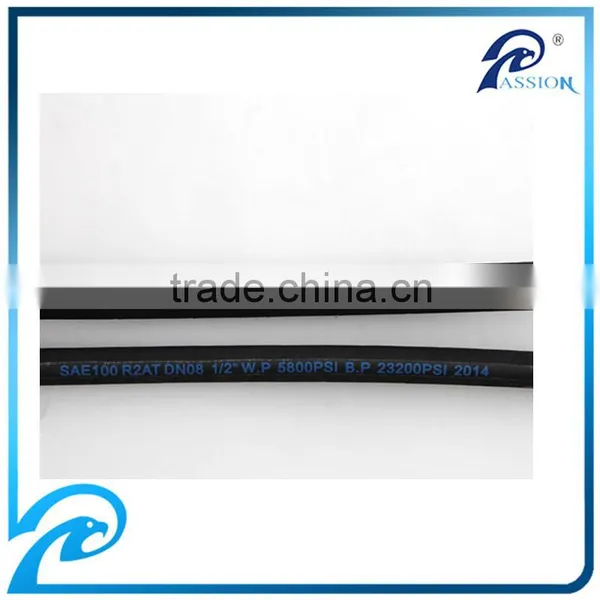

Help CenterSAE 100R2 /2SN Fabric Surface/Smooth Surface Hydraulic Rubber Hose
Related Products
-
304 Stainless Steel Braided Smooth Surface PTFE HosesUS$ 1.4 - 5.2MOQ: 500 Meters -
3/16" SAE 100r6 Rubber Hydraulic Hose With Single Braided FiberUS$ 0.67 - 3.52MOQ: 500 Meters
-
High Pressure SAE 100r1 Rubber Hydraulic HoseUS$ 0.67 - 3.52MOQ: 500 Meters
-
4" SAE 100r4 Steel Wire Helix Hydraulic Suction HoseUS$ 0.67 - 3.52MOQ: 500 Meters
-
Good Quality Stainless Steel 304 Braided Covered PTFE Hydraulic HosesUS$ 0.65 - 2.18MOQ: 500 Meters

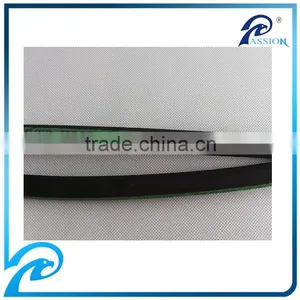

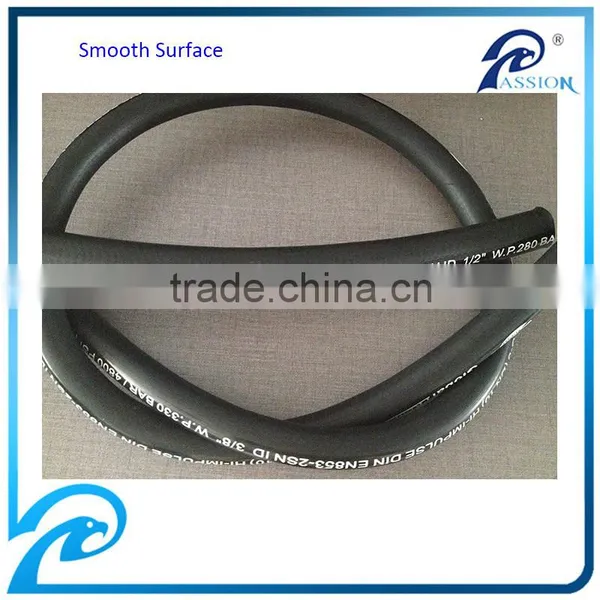

SAE 100R2 AT/EN853 2SN(cloth wrapped surface)
Construction: Tube: NBR synthetic rubber.
Reinforcement: Two layers of high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black.
Application: Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool, agricultural applications etc.
Standard length: 100m, 50m, 40m, 20m.
Specification:
Item Code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
R1-05 |
3/16 |
4.8 |
12.3 |
414 |
6000 |
1655 |
24000 |
100 |
|
0.32 |
R1-06 |
1/4 |
6.4 |
15.5 |
400 |
5800 |
1600 |
23200 |
100 |
0.0514 |
0.37 |
R1-08 |
5/16 |
8.0 |
16.5 |
350 |
5075 |
1400 |
20300 |
100 |
0.0612 |
0.412 |
R1-10 |
3/8 |
9.5 |
19.5 |
331 |
4800 |
1324 |
19200 |
100 |
0.0784 |
0.53 |
R1-13 |
1/2 |
12.7 |
22.5 |
276 |
4000 |
1103 |
16000 |
100 |
0.0833 |
0.64 |
R1-16 |
5/8 |
16.0 |
25.5 |
250 |
3630 |
1001 |
14520 |
50 |
0.074 |
0.77 |
R1-19 |
3/4 |
19.0 |
29.5 |
215 |
3120 |
860 |
12480 |
50 |
0.0833 |
0.96 |
R1-25 |
1 |
25.4 |
38.1 |
165 |
2400 |
662 |
9600 |
50 |
0.1445 |
1.35 |
R1-32 |
1 1/4 |
32.0 |
48.0 |
125 |
1820 |
502 |
7280 |
20 |
0.209 |
2.05 |
R1-38 |
1 1/2 |
38.0 |
55.0 |
90 |
1310 |
361 |
5240 |
20 |
0.2509 |
2.511 |
R1-51 |
2 |
50.8 |
68.6 |
80 |
1160 |
320 |
4640 |
20 |
0.3796 |
3.165 |
* Hangzhou Paishun Rubber and Plastic Co.,Ltd is a company that specialized in manufacturing various Rubber Hoses, Rubber Products,Rubber Fittings and Hydraulic Hose Assembly.
*Established in 2000
* Most of our products get TS16949 certification and ROHS certification.
Dear Sir, if you are interested into, please contact our sales team, we will contact you ASAP.
