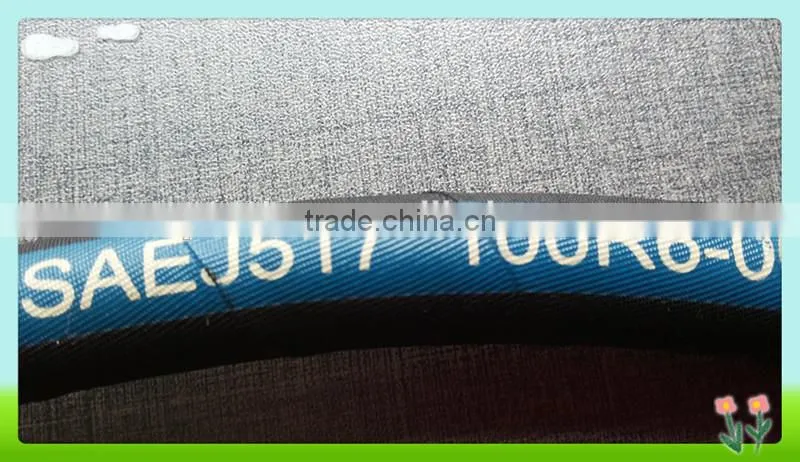

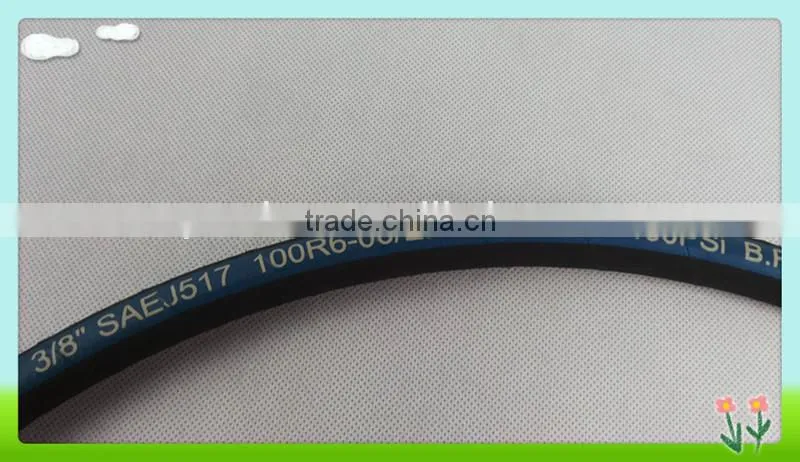

3/16" SAE 100r6 Rubber Hydraulic Hose with Single Braided Fiber
Single Fibre Braid Hydraulic Hose - SAE 100R6
This Hose consists of
1) An inner tube of oil-resistant synthetic rubber.
2) A single fiber braid reinforcement.
3) An oil and weather-resistant synthetic rubber cover.
Application: This section covers Hose for use with petroleum base hydraulic fluids within a temperature range of -40C-+100C.
Standard: SAE 100 R6
Item code |
I.D |
O.D |
W.P |
B.P |
Length |
Min. Bend Radius |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
mm |
kg/m |
PR6-05 |
3/16" |
5.0 |
10.3 |
35 |
507.5 |
420 |
2030 |
100 |
50 |
0.10 |
PR6-06 |
1/4" |
6.3 |
11.9 |
28 |
406 |
350 |
1624 |
100 |
65 |
0.13 |
PR6-08 |
5/16" |
8.0 |
13.5 |
28 |
406 |
335 |
1624 |
100 |
75 |
0.15 |
PR6-10 |
3/8" |
10.0 |
15.1 |
28 |
406 |
315 |
1624 |
100 |
75 |
0.18 |
PR6-13 |
1/2" |
12.5 |
19.0 |
28 |
406 |
280 |
1624 |
100 |
100 |
0.26 |
PR6-16 |
5/8" |
16.0 |
22.2 |
24 |
348 |
245 |
1421 |
50 |
125 |
0.31 |
PR6-19 |
3/4" |
19.0 |
25.4 |
21 |
304.5 |
210 |
1218 |
50 |
150 |
0.40 |
About Us:
<passion>
High quality products, Low prices, Convenient payment procedure
We are a leading manufacturer specialized in designing and manufacturing various kinds of rubber hoses and hydraulic high pressure in China with experience more than 10 years, manufacturing in accordance ISO 9001: 2008, ISO / TS CE, 29001 and API Q1. We help our clients to develop special qualities and hydraulic rubber hose for their needs.
Factory of R6 Rubber Hydraulic Hose :
Q1. Do you produce smooth or cloth wrapped cover?
A. Both, we can produce both cover, which depends on customer’s request.
Q2. Do you produce embossed marking?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, we can offer OEM services.
