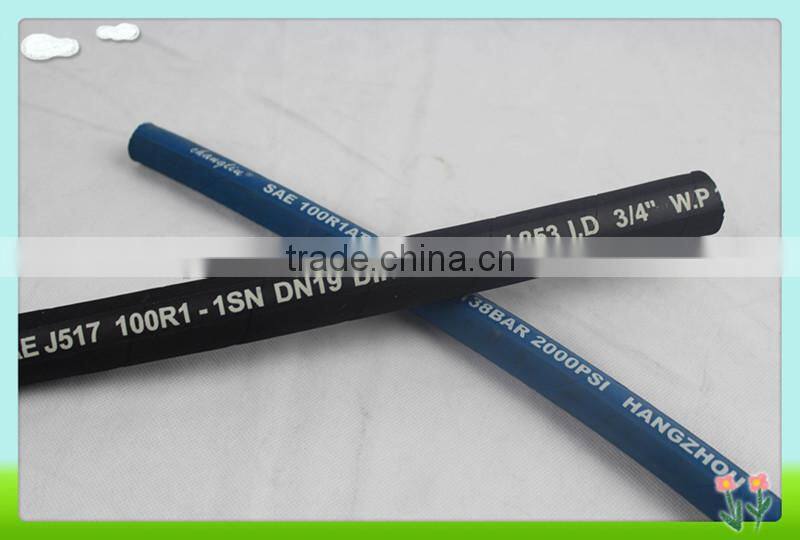

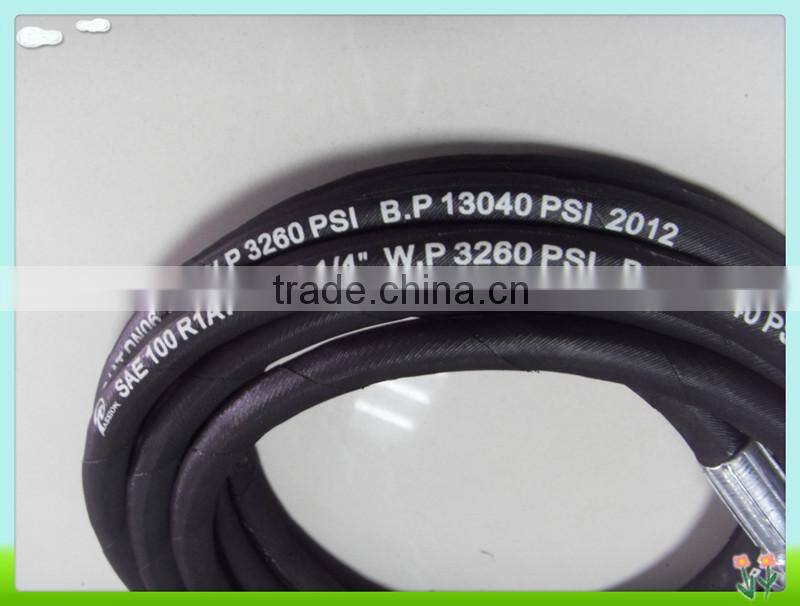

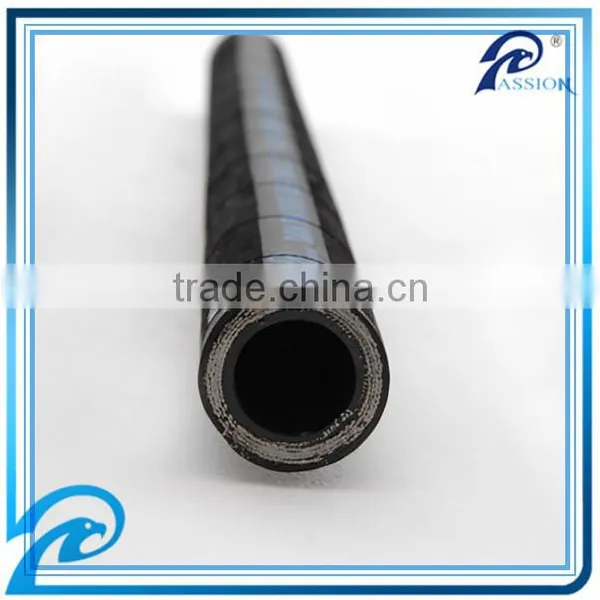

High Pressure Hydraulic Rubber Hose for Machine Tool and Engineering
SAE 100R1 AT/EN853 1SN(cloth wrapped surface)
Construction: Tube: NBR synthetic rubber.
Reinforcement: A single high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black.

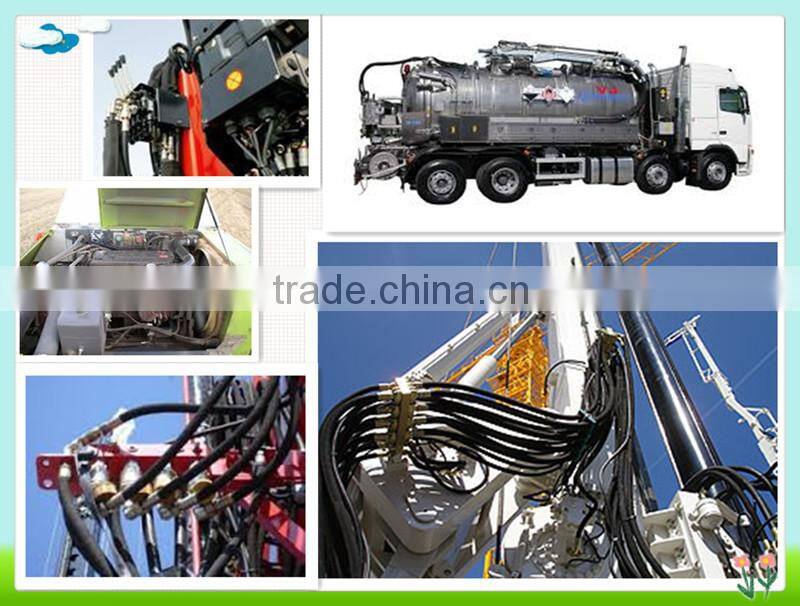

Application: Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool, agricultural applications etc.
Standard length: 100m, 50m, 40m, 20m.
Specification:
Item Code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
R1-05 |
3/16 |
5.0 |
12.0 |
250 |
3630 |
1001 |
14520 |
100 |
|
0.20 |
R1-06 |
1/4 |
6.4 |
14.0 |
225 |
3270 |
902 |
13080 |
100 |
0.0454 |
0.24 |
R1-08 |
5/16 |
8.0 |
15.1 |
215 |
3120 |
860 |
12480 |
100 |
0.0487 |
0.28 |
R1-10 |
3/8 |
10.0 |
17.5 |
180 |
2615 |
721 |
10460 |
100 |
0.0735 |
0.36 |
R1-13 |
1/2 |
12.5 |
20.0 |
160 |
2320 |
640 |
9280 |
100 |
0.0487 |
0.45 |
R1-16 |
5/8 |
16.0 |
24.0 |
130 |
1890 |
521 |
7560 |
50 |
0.0784 |
0.51 |
R1-19 |
3/4 |
19.0 |
28.0 |
105 |
1530 |
422 |
6120 |
50 |
0.0686 |
0.65 |
R1-25 |
1 |
25.0 |
36.0 |
88 |
1280 |
353 |
5120 |
50 |
0.0949 |
0.96 |
R1-32 |
1 1/4 |
32.0 |
43.5 |
63 |
920 |
254 |
3680 |
20 |
0.121 |
1.25 |
R1-38 |
1 1/2 |
38.0 |
50.1 |
50 |
730 |
201 |
2920 |
20 |
0.1452 |
1.60 |
R1-51 |
2 |
51.0 |
63.6 |
40 |
580 |
160 |
2320 |
20 |
0.2197 |
2.20 |
About Us:
<passion>
High quality products, Low prices, Convenient payment procedure
We are a leading manufacturer specialized in designing and manufacturing various kinds of rubber hoses and hydraulic high pressure in China with experience more than 10 years, manufacturing in accordance ISO 9001: 2008, ISO / TS CE, 29001 and API Q1. We help our clients to develop special qualities and hydraulic rubber hose for their needs.

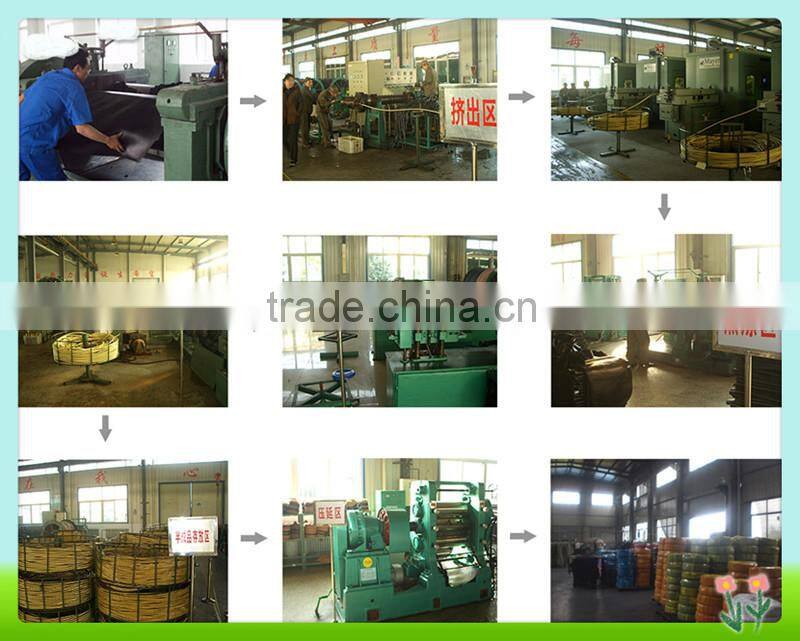

Factory of Hydraulic Rubber Hose:
Q1. Do you produce smooth or cloth wrapped cover?
A. Both, we can produce both cover, which depends on customer’s request.
Q2. Do you produce embossed marking?
A. Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
A. Yes, we can offer OEM services.
