1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14

1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 thumbnail-1
1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 thumbnail-2
1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 thumbnail-3
1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 thumbnail-4
1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 thumbnail-5
1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 thumbnail-6
1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 photo-1

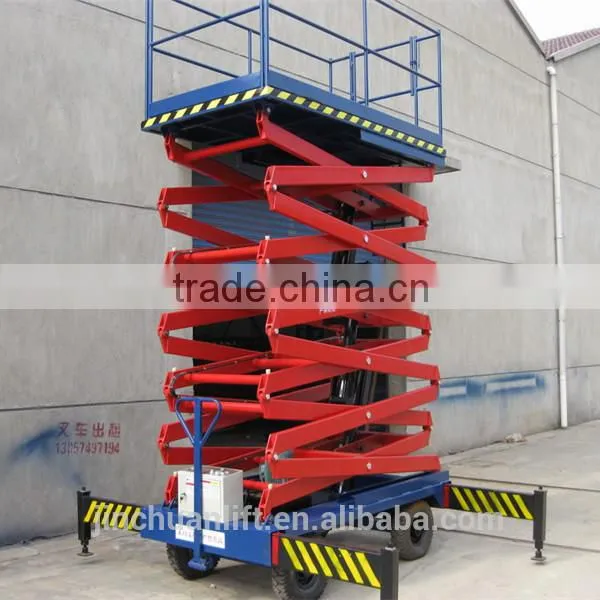

1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 photo-2

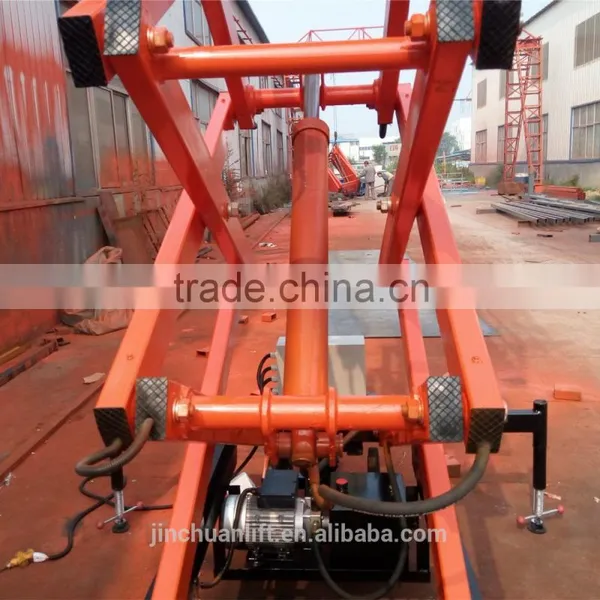

1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 photo-3

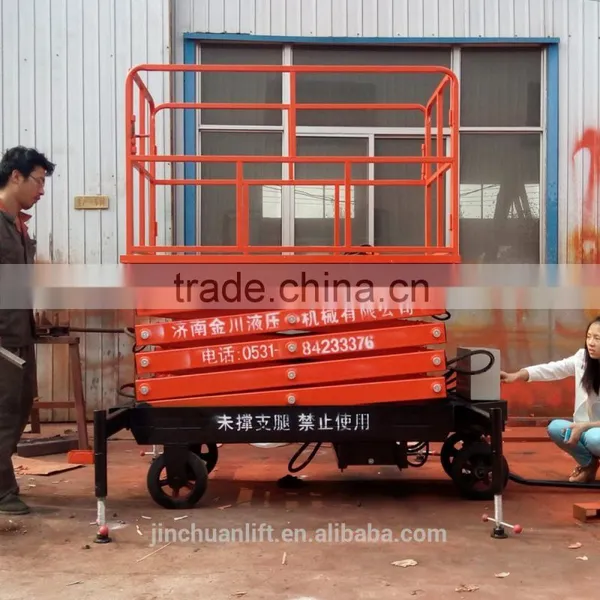

1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 photo-4

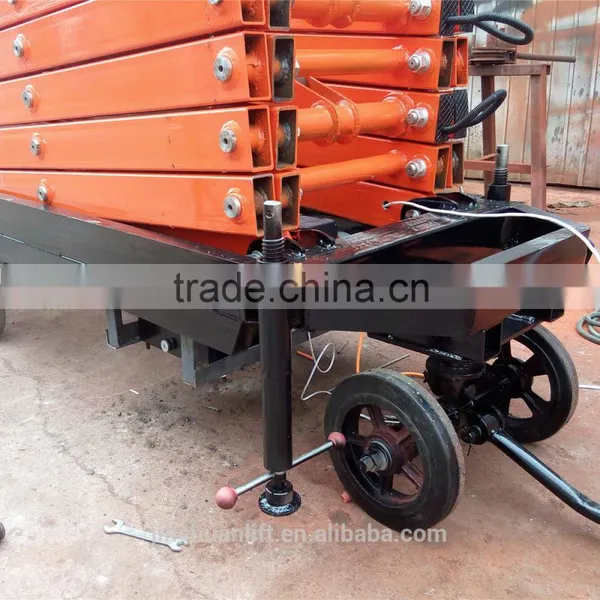

1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 photo-5
1.35~14m, 0.3 Ton Hydraulic Small Air Motorcycle Mobile Scissor Lift Table With Roller SJY0.3-14 photo-6
US$ 6,694 - 6,694 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
JINCHUAN
Model Number:
SJY0.3-14
Contact Supplier Request Quote Chat Now
Jinan Jinchuan Hydraulic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name JINCHUAN
Model Number SJY0.3-14
Lift Mechanism Scissor Lift
Lift Drive / Actuation Hydraulic
Power 3.0 kw
Rated Loading Capacity 300 kg
Min. Lifting Height 1350 mm
Max. Lifting Height 14 m
Table Size 2750*1500
Overall Dimensions 3250*1950*1970
Weight 2900 kg
Certification CE&ISO9001:2000
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas
Certifications



1.35~14m, 0.3 ton hydraulic small air motorcycle mobile scissor lift table with roller SJY0.3-14





Product Description

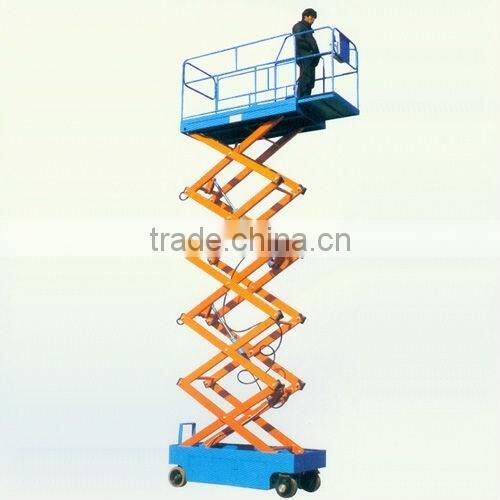

Scissor lift is the professional high-altitude operation equipment, widely used for the installations maintenance, highworking capacity, most spacious platforms to load several people to work on, moved by tow or push, high strength steelmaterial, going up and down stably, operated easily with few faults.



 1.35~14m, 0.3 ton hydraulic small air motorcycle mobile scissor lift table with roller SJY0.3-14







Operate & Power:



A. Standard operating methods:

pendent controller with push buttons

 remote control with push buttons

cabin (space capsule seat) control with joystick

B. Electric powered

The usual power supply is external connection electricity variety of 220v, 240v, 380v, 400v

 1.35~14m, 0.3 ton hydraulic small air motorcycle mobile scissor lift table with roller SJY0.3-141.35~14m, 0.3 ton hydraulic small air motorcycle mobile scissor lift table with roller SJY0.3-14





Detail Features



A.  Smooth starting and stopping

B.  Low noise, commodious cabin and good view
C. Convenient maintenance, excellent exchangeability for parts and components
D.  Energy saving,reduce energy consumption
E. Using transducer for travelling or traversing crane to realize step speed or stepless speed change
F. Primer and finishing paint
G. Crane structure:steel box type

1.35~14m, 0.3 ton hydraulic small air motorcycle mobile scissor lift table with roller SJY0.3-14 1.35~14m, 0.3 ton hydraulic small air motorcycle mobile scissor lift table with roller SJY0.3-14
1.35~14m, 0.3 ton hydraulic small air motorcycle mobile scissor lift table with roller SJY0.3-141.35~14m, 0.3 ton hydraulic small air motorcycle mobile scissor lift table with roller SJY0.3-14



Specification







Model

Work height

Capacity

Table size

Total dismension

Mating power

SJY0.3-4

4 m

300 kg

1600*750 mm²

1700*900*1100 mm³

2.2 kw

SJY0.3-6

6 m

300 kg

1600*750 mm ²

1700*900*1290 mm ³

2.2 kw

SJY0.3-8

8 m

300 kg

1700*900 mm ²

1850*1200*1350 mm ³

2.2 kw

SJY0.3-9

9 m

300 kg

1800*1200 mm ²

2200*1500*1450 mm ³

2.2 kw

SJY0.3-10

10 m

300 kg

2100*1200 mm ²

2600*1500*1530 mm ³

2.2 kw

SJY0.3-11

11 m

300 kg

2100*1200 mm ²

2600*1500*1650 mm ³

2.2kw

SJY0.3-12

12 m

300 kg

2530*1500 mm ²

2950*1950*1740 mm ³

3.0 kw

SJY0.3-14

14 m

300 kg

2750*1500 mm ²

3250*1950*1970 mm ³

3.0 kw

SJY0.3-16

16 m

300 kg

3000*1500 mm ²

3600*2000*2300 mm ³

3.0 kw

SJY0.3-18

18 M

300 kg

3200*1600 mm ²

3700*2100*2500 mm ³

3.0 kw



Our Services



 We supply products with customized design by professionals

The English operation instruction will be attached  before shipment

The professionals will be sent aboard  for installation and instruction at customer's request

The warranty period of the machinery is 12 months

 1.35~14m, 0.3 ton hydraulic small air motorcycle mobile scissor lift table with roller SJY0.3-141.35~14m, 0.3 ton hydraulic small air motorcycle mobile scissor lift table with roller SJY0.3-14





Packaging & Shipping
