Introduction:
This kind of working platfrom is with 4 wheels, elevated by strong hydraulic system, could move easily and easy to control, high effieiency, durable and long service life
It is a common tool to be widely used in workshop, the max. Elevating height could be 16m.
Feature:
1. Easy to move
2. Cap:300~1000kgs
3. Lifting height: Max. 16m
4. Voltage: 220/380/400/415V
5. Siemens main electric parts
6. Control mode: Press button, wireless
Model list
| tem | Lifting height | Working height | Capacity | Platform size | Bottom shelf size | Overall dimension | Power supply | Net weight | |
| Model | m | m | kg | m | m | m | V(AV | Kw | kg |
| SJY0.3-4 | 4 | 5.5 | 300 | 1.6*0.75 | 1.7*0.9 | 1.7*0.9*1.1 | 220 | 2.2 | 400 |
| SJY0.3-6 | 6 | 7.5 | 300 | 1.6*0.75 | 1.7*0.9 | 1.7*0.9*1.29 | 220 | 2.2 | 650 |
| SJY0.5-6 | 6 | 7.5 | 500 | 1.6*0.9 | 1.7*1.15 | 1.7*1.15*1.29 | 220 | 2.2 | 700 |
| SJY0.3-8 | 8 | 9.5 | 300 | 1.7*0.9 | 1.85*1.2 | 1.85*1.2*1.35 | 220 | 2.2 | 720 |
| SJY0.5-8 | 8 | 9.5 | 500 | 1.7*0.9 | 1.85*1.2 | 1.85*1.2*1.35 | 220 | 2.2 | 750 |
| SJY1.0-8 | 8 | 9.5 | 1000 | 2*1.2 | 2.4*1.5 | 2.4*1.5*1.53 | 220 | 2.2 | 1700 |
| SJY0.3-9 | 9 | 10.5 | 300 | 1.8*1.2 | 2.2*1.5 | 2.2*1.5*1.45 | 220 | 2.2 | 850 |
| SJY0.3-10 | 10 | 11.5 | 300 | 2.1*1.2 | 2.6*1.5 | 2.6*1.5*1.53 | 380 | 2.2 | 1500 |
| SJY0.5-10 | 10 | 11.5 | 500 | 2.1*1.2 | 2.6*1.5 | 2.6*1.5*1.53 | 380 | 2.2 | 1600 |
| SJY1.0-10 | 10 | 11.5 | 1000 | 2.2*1.5 | 2.65*1.9 | 2.65*1.9*1.74 | 380 | 3.0 | 2200 |
| SJY0.3-1.1 | 11 | 12.5 | 300 | 2.1*1.2 | 2.6*1.5 | 2.6*1.5*1.65 | 380 | 2.2 | 1650 |
| SJY0.3-12 | 12 | 13.5 | 300 | 2.53*1.5 | 2.95*1.95 | 2.95*1.95*1.74 | 380 | 3.0 | 2580 |
| SJY0.5-12 | 12 | 13.5 | 500 | 2.55*1.5 | 3.0*1.95 | 3.0*1.95*1.85 | 380 | 3.0 | 2700 |
| SJY1.0-12 | 12 | 13.5 | 1000 | 2.6*1.5 | 3.2*2.0 | 3.2*2.0*2.13 | 380 | 3.0 | 3400 |
| SJY0.3-14 | 14 | 15.5 | 300 | 2.75*-1.5 | 3.25*1.95 | 3.25*1.95*1.97 | 380 | 3.0 | 2900 |
| SJY0.5-14 | 14 | 15.5 | 500 | 2.98*1.5 | 3.3*2.0 | 3.3*2.0*1.97 | 380 | 3.0 | 3000 |
| SJY1.0-14 | 14 | 15.5 | 1000 | 3.0*1.6 | 3.4*2.2 | 3.4*2.2*2.3 | 380 | 3.0 | 3600 |
| SJY0.3-16 | 16 | 17.5 | 300 | 3.0*1.5 | 3.6*2.0 | 3.6*2.0*2.3 | 380 | 3.0 | 3650 |
| SJY0.5-16 | 16 | 17.5 | 500 | 3.2*1.5 | 3.6*2.0 | 3.6*2.0*2.3 | 380 | 3.0 | 3700 |
| SJY1.0-16 | 16 | 17.5 | 1000 | 3.2*1.6 | 3.7*2.1 | 3.7*2.1*2.5 | 380 | 3.0 | 3900 |

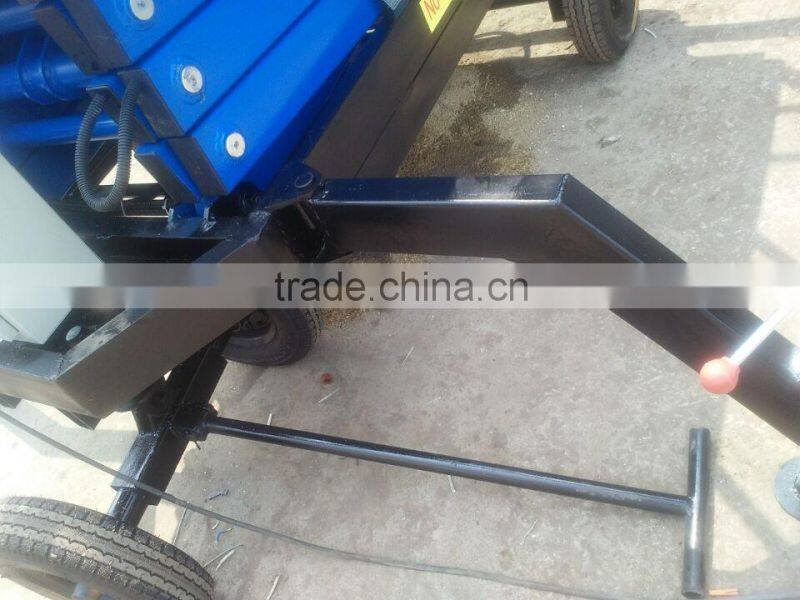

The Bottom shelf size is based on the situation that the support legs is closed.There are four support legs and each is 0.9m.The legs can be opened or closed . | |||||||||

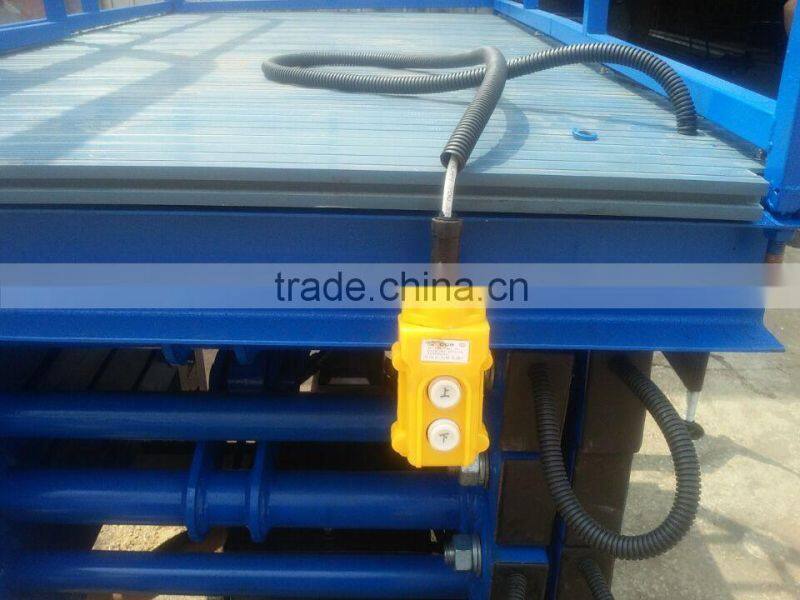

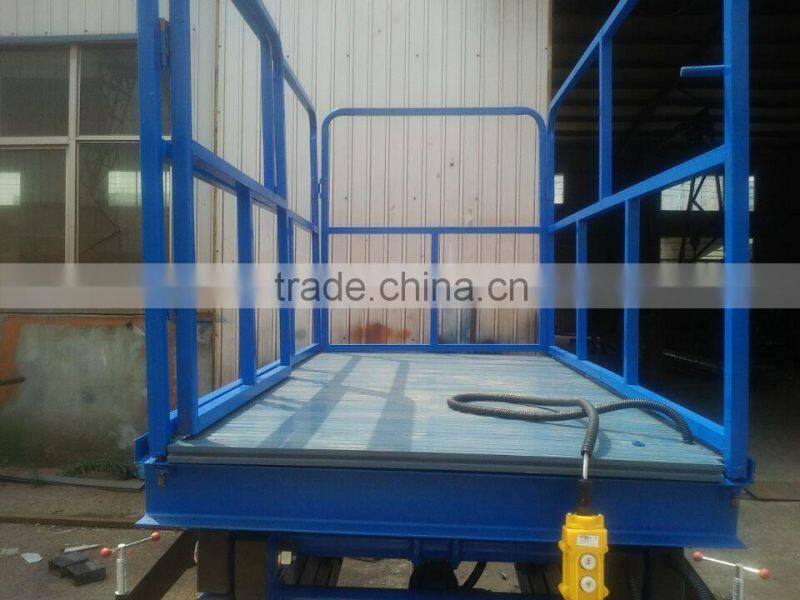

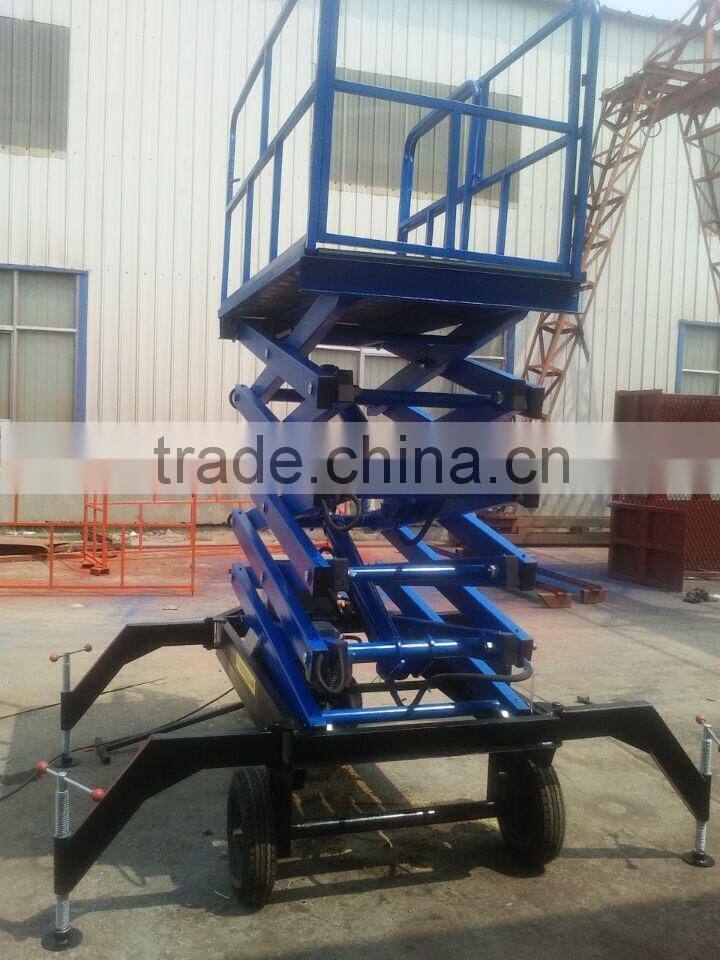

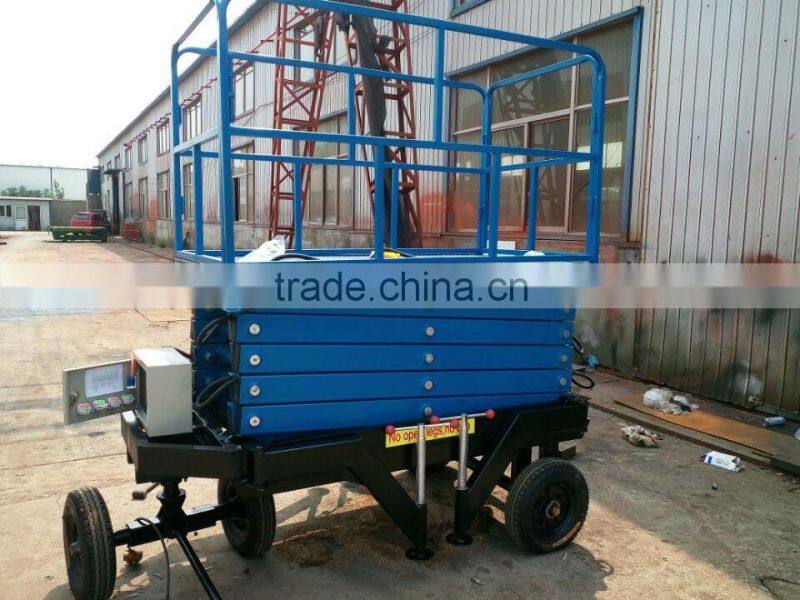

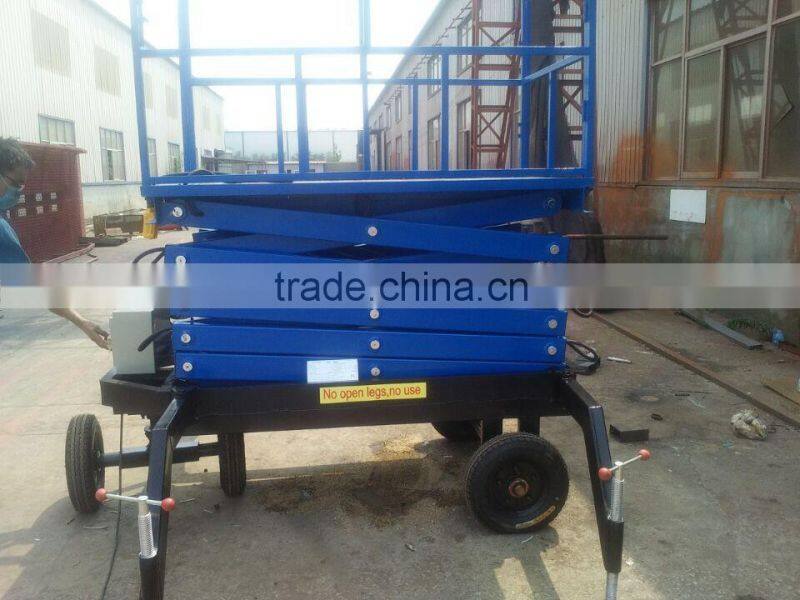

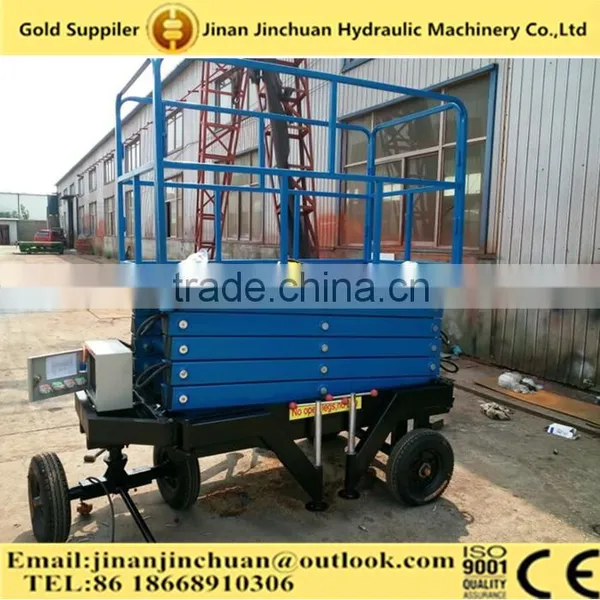

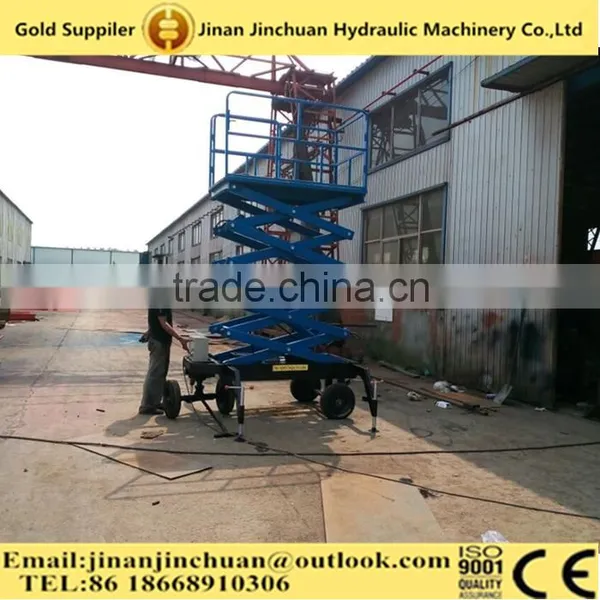

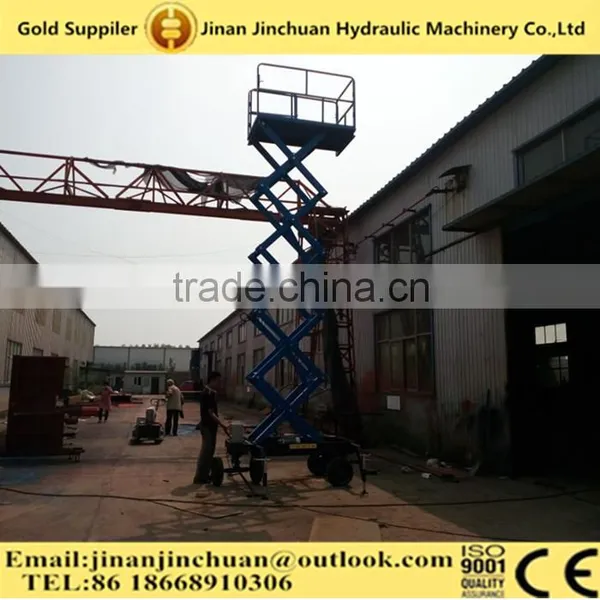

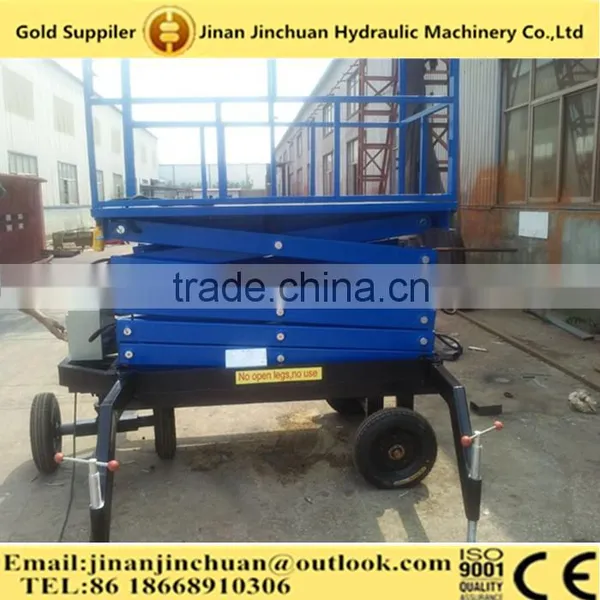

Products show:
Customization:
If you intend to buy the product, pls kindly tell us below information:
1. Capacity
2. Table size
3. Lifting height
4. Voltage.
5.Package
1. We are in Jiyang which is the Scissor Lift Hometown of China, could supply you the best quality crane , grab bucket and electromagnet with high technique, and the price is the best.
2. We could supply you all kinds of industry cranes from 0.25tons to 900tons, pass GB/T 19001-2000 idt ISO 9001:2000, GB/T 24001-2004 idt ISO 14001:2004, GB/T 28001-2001,OHSAS 18001:1999, CE,GOST and so on.
