Home > Products > Hydraulic Rubber Hose > 1/4", 5/16", 3/8" High Pressure Washer Hose with M22 x 1.5 Connection
1/4", 5/16", 3/8" High Pressure Washer Hose with M22 x 1.5 Connection
USD $1.7 - $50
/ Piece
100 Pieces(Min.Order)
- 500000 Meter / Meters per Month
- Ningbo or Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | PASSION | |
| Model Number | High pressure washer hose |
Product Description
1/4" SAE 100 R1AT Hydraulic Hose Assemblies
Product Description
Construction:
Tube: NBR synthetic rubber.
Reinforcement : A single or two high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black, Grey, Blue, etc.
Standard length: 100m, 50m, 40m, 20m.

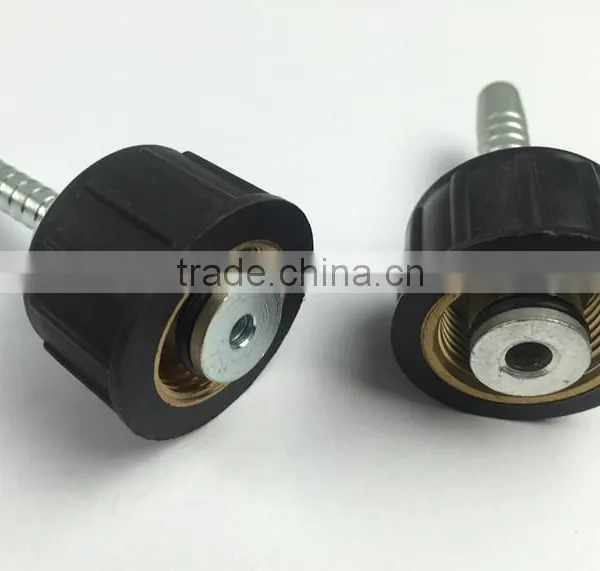

Couplings: Metric female connection or according to different washer machines
Specifications:
| Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Min Bend Radius | Length | Weight | ||||
| inch | mm | mm | mpa | psi | mpa | psi | mm | m | kg/m | ||
| 1S-04 | 1/4 | 6.4 | 12.0 | 21 | 3000 | 84 | 12000 | 102 | 100 | 0.24 | |
| 2S-04 | 1/4 | 6.4 | 15.0 | 40 | 5800 | 160 | 23200 | 102 | 100 | 0.40 | |
| 1S-05 | 5/16 | 7.9 | 15.1 | 21.5 | 3120 | 86 | 12480 | 114 | 100 | 0.30 | |
| 2S-05 | 5/16 | 7.9 | 16.5 | 35 | 5075 | 140 | 20300 | 114 | 100 | 0.47 | |
| 1S-06 | 3/8 | 9.5 | 17.5 | 18 | 2615 | 72.1 | 10460 | 127 | 100 | 0.37 | |
| 2S-06 | 3/8 | 9.5 | 19.1 | 33 | 4800 | 132 | 19200 | 127 | 100 | 0.55 | |
Products
Other High pressure rubber products.
Production Flow
Packaging & Shipping
Application
- high pressure washer machines
