Home > Products > Hydraulic Rubber Hose > AISI 304 Stainless Steel 1/2'' Corrugated PTFE Tube

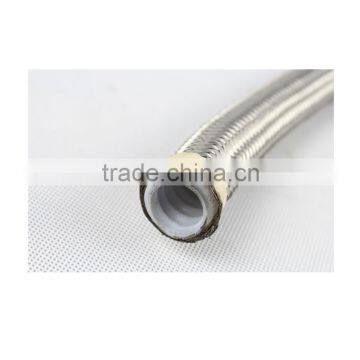

AISI 304 Stainless Steel 1/2'' Corrugated PTFE Tube
- 500000 Meter / Meters per Month
- Ningbo or Shanghai
- T/T Credit Card
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | PASSION | |
Model Number | PS-13 | Material | Other, PTFE | |
Specification | ID 1/2'' | Length | 50 to 100m (random length) | |
Thickness | 0.85mm | Standard | SAE100 R14, SAE 100R14 |
Product Description
Construction:
Tube: PTFE CORRUGATED FIBER REINFORCED EXTERNALLY impregnated glass PTFE.
Cover: AISI SS304 / SS316 Braided
Temperature: -50℃ to +200℃ (Domestic Material)
-50℃ to +260℃ (Imported Material)
Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc
Coil length: 50-100m (Random Length).
Standard: SAE100 R14
Connector: Customize as per request
Item code | Inner Diameter | Outer Diameter | Working Pressure | Min. Bending Radius | Approx. Weight
| Unit FOB Ningbo Price | |
inch | mm | mm | Bar | mm | Kg/m | USD/M | |
PS-12 | 1/2" | 13.0 | 19.1 | 50 | 30 | 0.31 | 7.10 |
PS-16 | 5/8" | 16.0 | 22.5 | 45 | 40 | 0.47 |
|
PS-19 | 3/4" | 19.2 | 26.0 | 38 | 50 | 0.57 |
|
PS-19 | 7/8" | 21.9 | 29.2 | 35 | 60 | 0.7 |
|
PS-25 | 1" | 25.0 | 32.0 | 30 | 65 | 0.8 |
|
PS-32 | 1-1/4’’ | 32.0 | 39.0 | 26 | 65 | 0.98 |
|
PS-38 | 1-1/2’’ | 38.0 | 45.0 | 20 | 65 | 1.30 |
|
