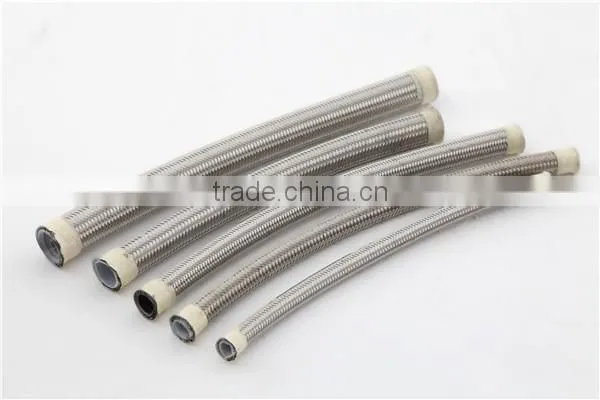

ISO 9001 Manufacturer 304 Stainless Steel 1/2'' PTFE Flexible Hose

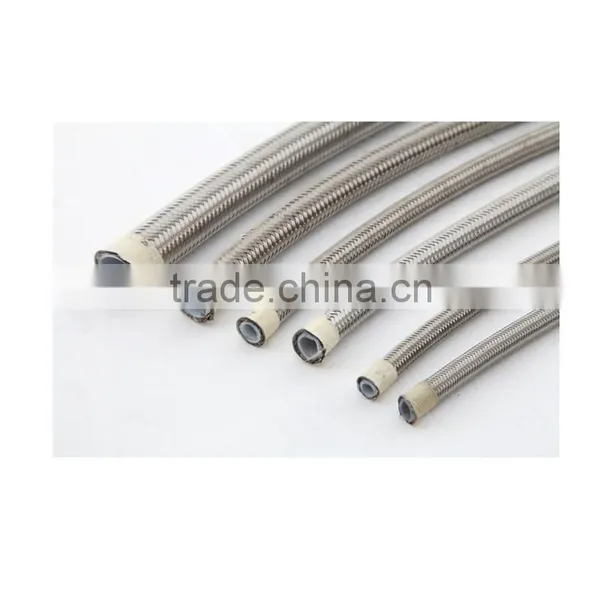

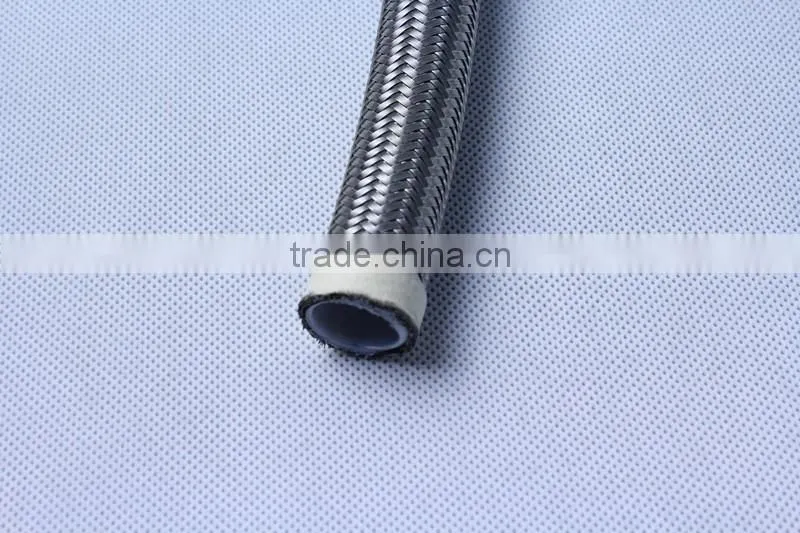

Construction:
Tube: PTFE CORRUGATED FIBER REINFORCED EXTERNALLY impregnated glass PTFE.

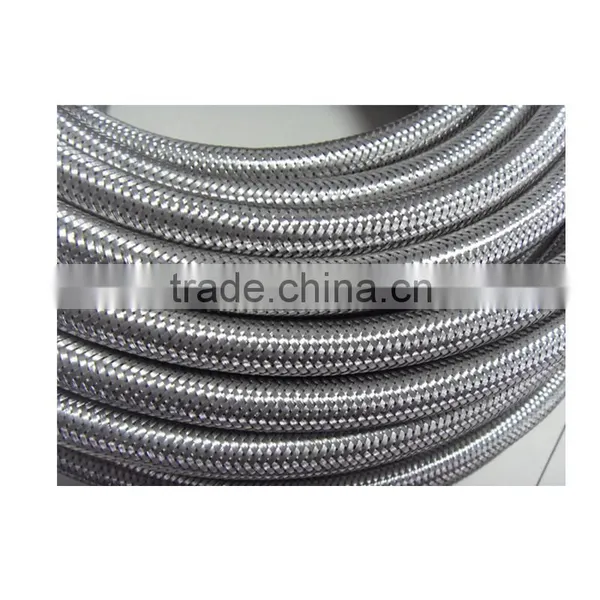

Cover: AISI SS304 / SS316 Braided
Temperature: -50℃ to +200℃ (Domestic Material)
-50℃ to +260℃ (Imported Material)
Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc

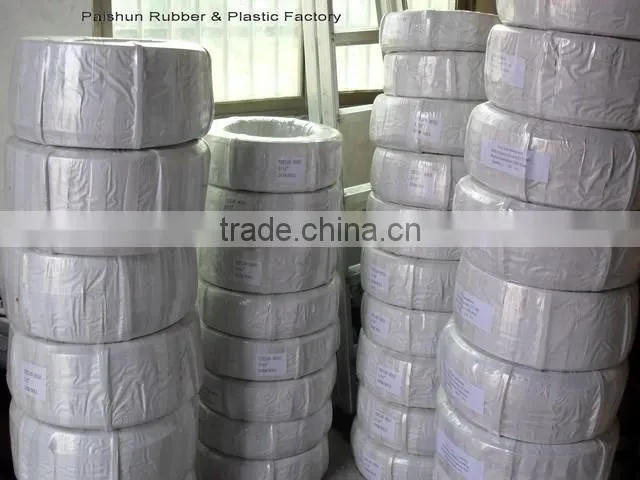

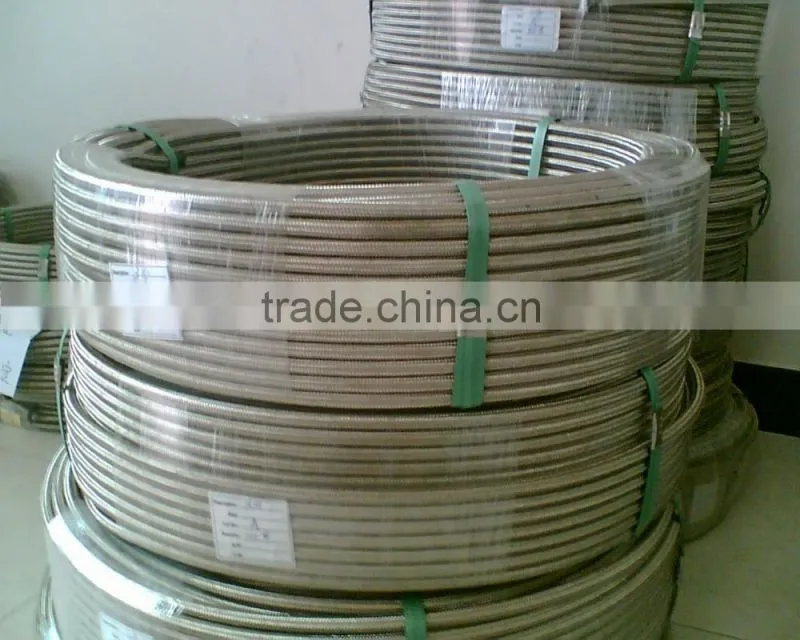

Coil length: 50-100m (Random Length).
Standard: SAE100 R14
Connector: Customize as per request
Item code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Min. Bending Radius |
Approx. Weight
|
Unit FOB Ningbo Price |
|
inch |
mm |
mm |
Bar |
mm |
Kg/m |
USD/M |
|
PS-12 |
1/2" |
13.0 |
19.1 |
50 |
30 |
0.31 |
7.10 |
PS-16 |
5/8" |
16.0 |
22.5 |
45 |
40 |
0.47 |
|
PS-19 |
3/4" |
19.2 |
26.0 |
38 |
50 |
0.57 |
|
PS-19 |
7/8" |
21.9 |
29.2 |
35 |
60 |
0.7 |
|
PS-25 |
1" |
25.0 |
32.0 |
30 |
65 |
0.8 |
|
PS-32 |
1-1/4’’ |
32.0 |
39.0 |
26 |
65 |
0.98 |
|
PS-38 |
1-1/2’’ |
38.0 |
45.0 |
20 |
65 |
1.30 |
|
PASSION TEAM
PASSION for Production: It's the essential of our enterprise. We invest continuous resources on our production equipments, as well as the testing machines. Our experienced engineers will assure the quality control.
PASSION for Sales: We have experience selling to foreign markets. We offer our favorable factory prices directly to help you win your markets. We also have a professional after-sales team to help you solve any problem you may have.
PASSION for Service: PASSION people are one team of passion and service esprit. You will find it's very easy to communicate with us. 24 hours x 7 days waiting for your contact!
Cooperative Brand:
WELDMAN, Max Weld, Goldenflex, SAEFLEX. REDI-WELD
Company Slogan:
PASSION FOR HOSE! PASSION FOR YOU!
1.Q:Are you a factory or trading company?
A:We are a factory
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, ISO, SGS, TUV etc. Authentication.
