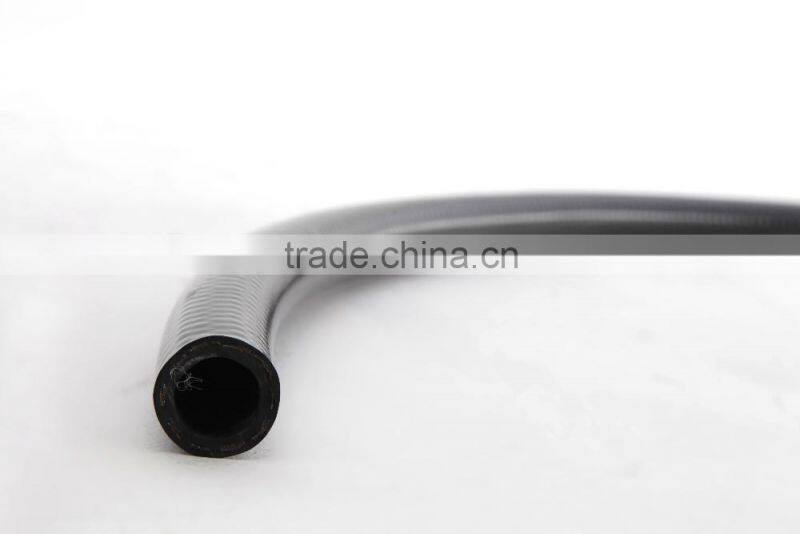

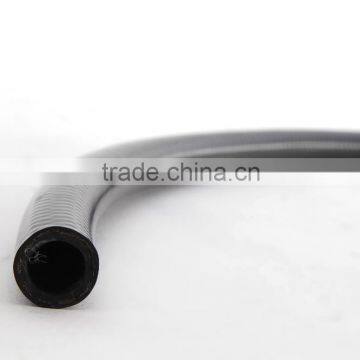

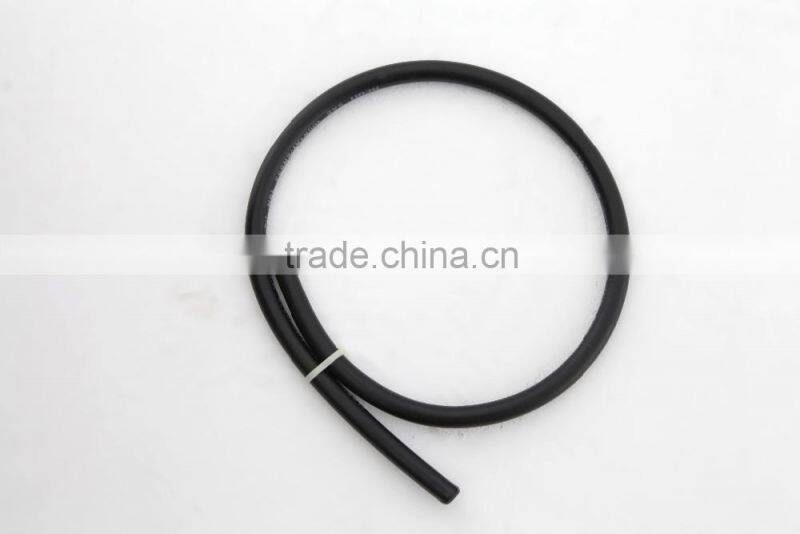

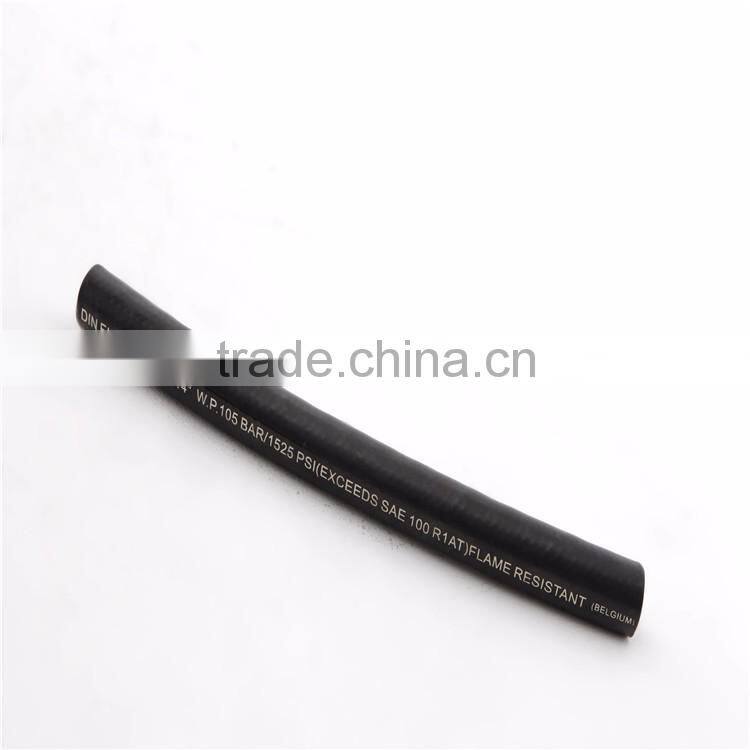

Flexible Steel Wire Braided Hydraulic Hose R1
High Pressure Hose (cloth wrapped surface)
Construction: Tube: NBR synthetic rubber.
Reinforcement: A single high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black.
Application: Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool, agricultural applications etc.
Standard length: 100m, 50m, 40m, 20m.
Standard: SAE100 R1 / EN853 1SN
Specification:
Item Code |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
|
R1-05 |
3/16 |
5.0 |
12.0 |
250 |
3630 |
1001 |
14520 |
100 |
|
0.20 |
R1-06 |
1/4 |
6.4 |
14.0 |
225 |
3270 |
902 |
13080 |
100 |
0.0454 |
0.24 |
R1-08 |
5/16 |
8.0 |
15.1 |
215 |
3120 |
860 |
12480 |
100 |
0.0487 |
0.28 |
R1-10 |
3/8 |
10.0 |
17.5 |
180 |
2615 |
721 |
10460 |
100 |
0.0735 |
0.36 |
R1-13 |
1/2 |
12.5 |
20.0 |
160 |
2320 |
640 |
9280 |
100 |
0.0487 |
0.45 |
R1-16 |
5/8 |
16.0 |
24.0 |
130 |
1890 |
521 |
7560 |
50 |
0.0784 |
0.51 |
R1-19 |
3/4 |
19.0 |
28.0 |
105 |
1530 |
422 |
6120 |
50 |
0.0686 |
0.65 |
R1-25 |
1 |
25.0 |
36.0 |
88 |
1280 |
353 |
5120 |
50 |
0.0949 |
0.96 |
R1-32 |
1 1/4 |
32.0 |
43.5 |
63 |
920 |
254 |
3680 |
20 |
0.121 |
1.25 |
R1-38 |
1 1/2 |
38.0 |
50.1 |
50 |
730 |
201 |
2920 |
20 |
0.1452 |
1.60 |
R1-51 |
2 |
51.0 |
63.6 |
40 |
580 |
160 |
2320 |
20 |
0.2197 |
2.20 |

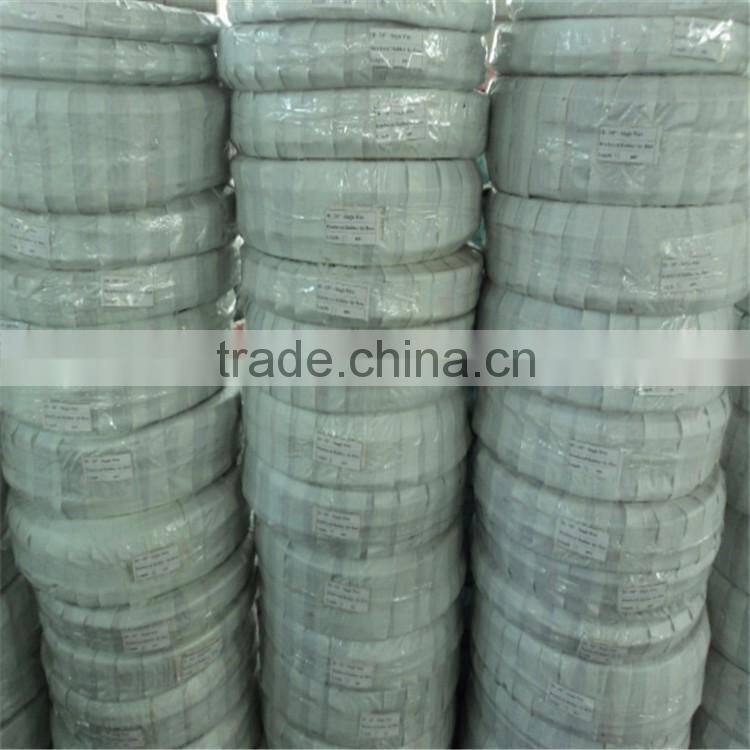

Packaging: Well packed by poly stripes or according to your requirement.
Shipping: We ship the goods by express, by air, by sea or according to your requirement.
Lead time: according to your quantity, generally speaking, 35 days 20' container.
♦ What is your terms of payment?
• T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
♦ How about your delivery time?
• Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
♦ Can you produce according to the samples?
• Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
♦ What is your sample policy?
• We can supply the sample for free, but the courier cost for you to pay.
♦ Do you test all your goods before delivery?
• Yes, we have 100% test before delivery
♦ How do you make our business long-term and good relationship?
• We keep good quality and competitive price to ensure our customers benefit ;
• We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
If you want to Know More Details. Please feel free to Contact Us!
