Hydraulic coupling is widely used in the hydraulic and fluid conveying ststem of machinery,
oilfield, mine, building, transportation and other industries.
It is ORFS Female style, our part number is 24211, if the material is stainless steel, the part number is 24211SS.
Specification:
ORFS FEMALE FLAT SEAT ISO 12151-1 -- SAE J516
24211 24211-T 24211W
| Part No. | Thread E | Hose Bore | Dimensions | |||
| DN | DASH | A | B | S2 | ||
| 24211-04-04 | 9/16"x18 | 6 | 04 | 22.5 | 8.5 | 19 |
| 24211-04-05 | 9/16"x18 | 8 | 05 | 22.5 | 8.5 | 19 |
| 24211-04-06 | 9/16"x18 | 10 | 06 | 22.5 | 8.5 | 19 |
| 24211-06-04T | 11/16"x16 | 6 | 04 | 23.5 | 10 | 22 |
| 24211-06-05T | 11/16"x16 | 8 | 05 | 23.5 | 10 | 22 |
| 24211-06-06 | 11/16"x16 | 10 | 06 | 25.5 | 10 | 22 |
| 24211-06-08 | 11/16"x16 | 12 | 08 | 26 | 10 | 22 |
| 24211-08-05T | 13/16"x16 | 8 | 05 | 25 | 11 | 27 |
| 24211-08-06T | 13/16"x16 | 10 | 06 | 25 | 11 | 27 |
| 24211-08-08 | 13/16"x16 | 12 | 08 | 28 | 11 | 27 |
| 24211-08-10 | 13/16"x16 | 16 | 10 | 29 | 11 | 27 |
| 24211-10-08T | 1"x14 | 12 | 08 | 29.5 | 13.5 | 30 |
| 24211-10-10 | 1"x14 | 16 | 10 | 33 | 13.5 | 30 |
| 24211-10-12 | 1"x14 | 20 | 12 | 33.5 | 13.5 | 30 |
| 24211-12-08T | 1.3/16"x12 | 12 | 08 | 30.5 | 15 | 36 |
| 24211-12-10T | 1.3/16"x12 | 16 | 10 | 31.5 | 15 | 36 |
| 24211-12-12 | 1.3/16"x12 | 20 | 12 | 35 | 15 | 36 |
| 24211-12-16 | 1.3/16"x12 | 25 | 16 | 36 | 15 | 36 |
| 24211-16-12T | 1.7/16"x12 | 20 | 12 | 35 | 14.8 | 41 |
| 24211-16-14T | 1.7/16"x12 | 22 | 14 | 35 | 14.8 | 41 |
| 24211-16-16T | 1.7/16"x12 | 25 | 16 | 35 | 14.8 | 41 |
| 24211-16-20 | 1.7/16"x12 | 32 | 20 | 39.5 | 14.8 | 41 |
| 24211-20-16T | 1.11/16"x12 | 25 | 16 | 35 | 15 | 50 |
| 24211-20-20W | 1.11/16"x12 | 32 | 20 | 42.5 | 15 | 50 |
| 24211-20-24W | 1.11/16"x12 | 40 | 24 | 42.5 | 15 | 50 |
| 24211-24-20T | 2"x12 | 32 | 20 | 36 | 14.8 | 60 |
| 24211-24-24T | 2"x12 | 40 | 24 | 36 | 14.8 | 60 |

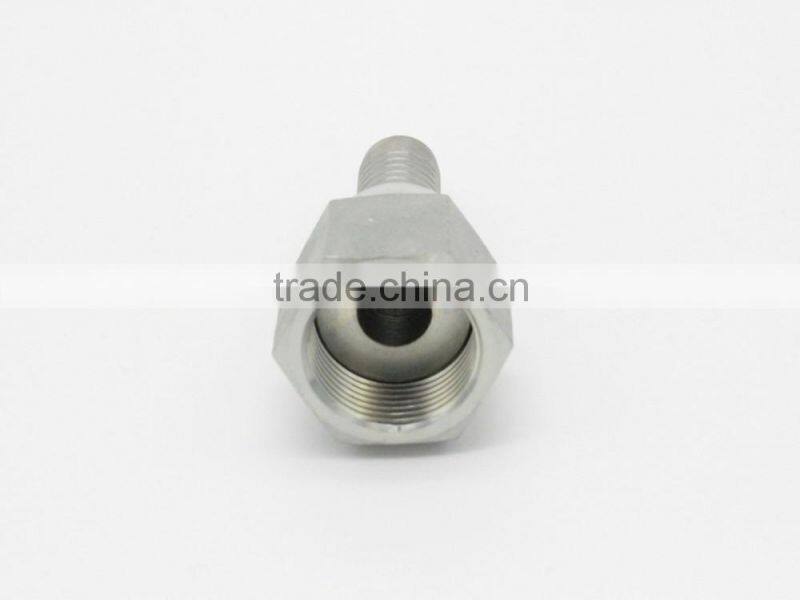

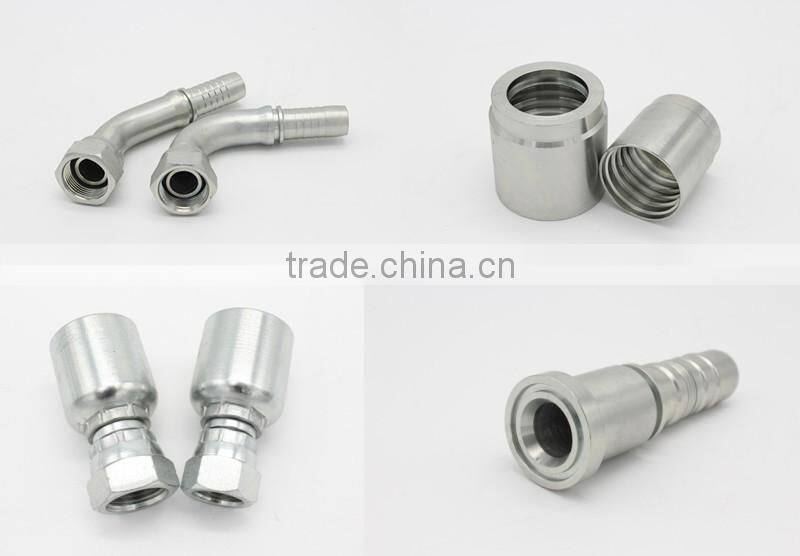

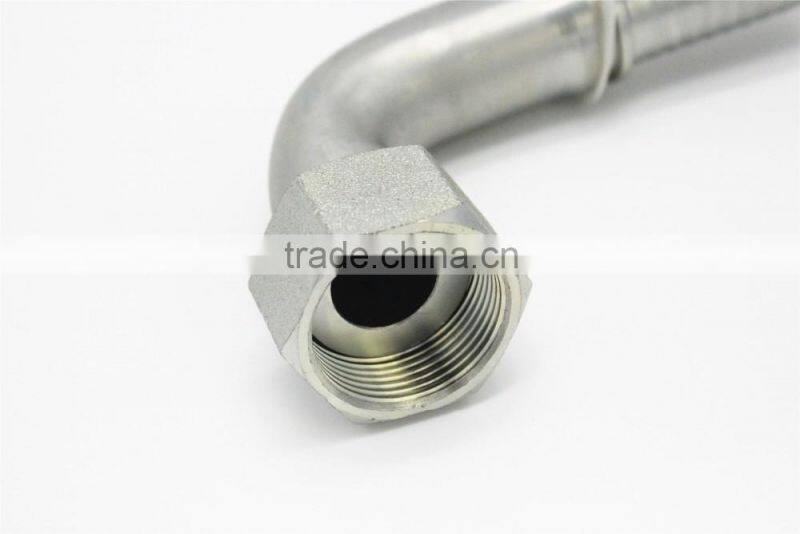

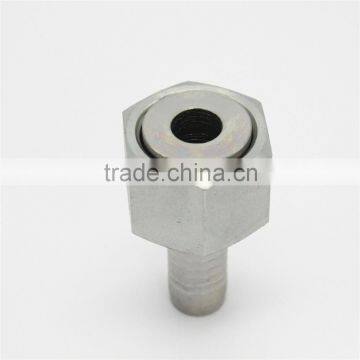

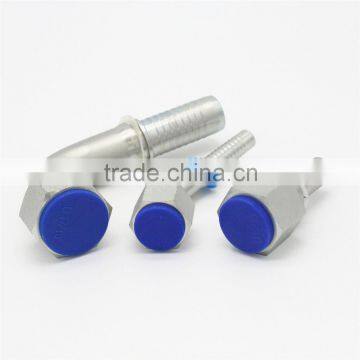

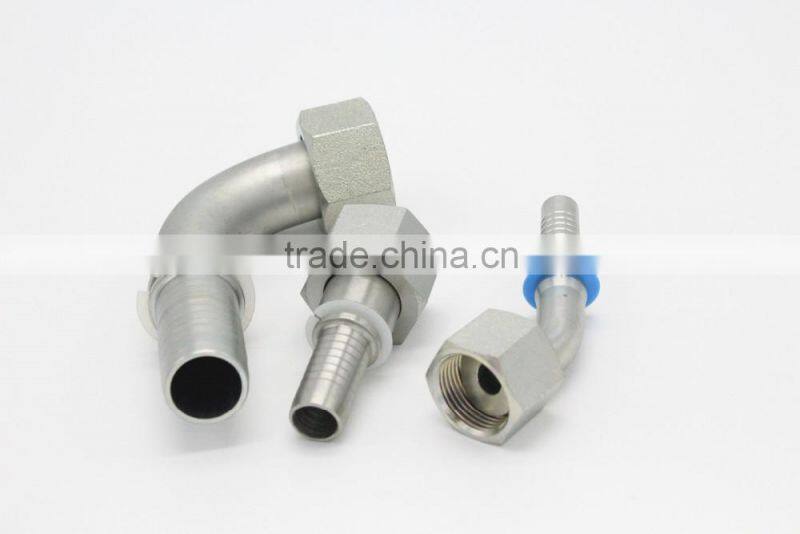

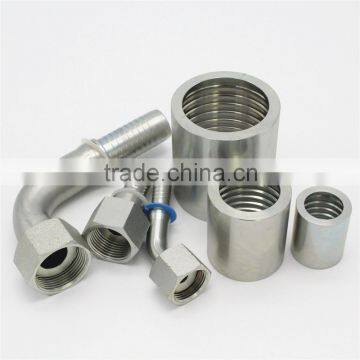

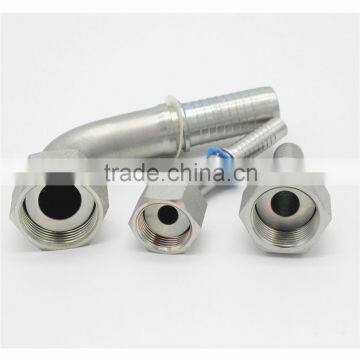

Pictures of Hydraulic Hose Fitting
Material of ferrule: carton steel 20#
Material of fitting: carton steel 45#

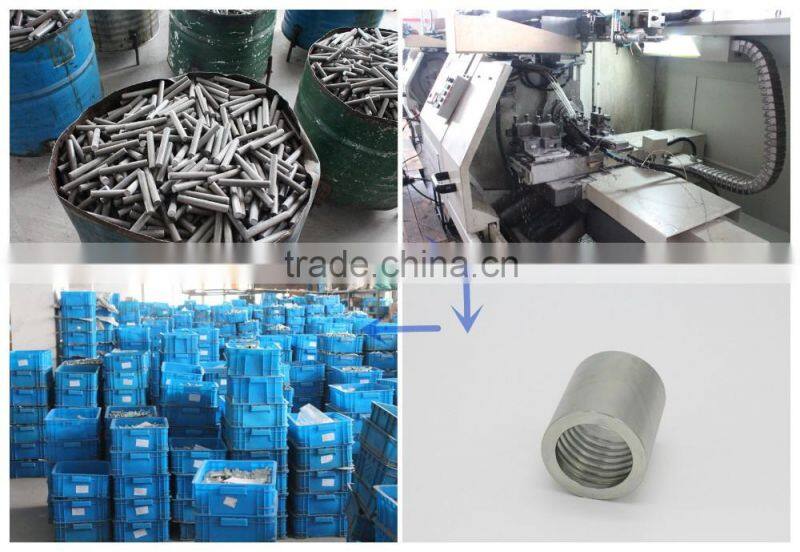

All of our machines are CNC machines

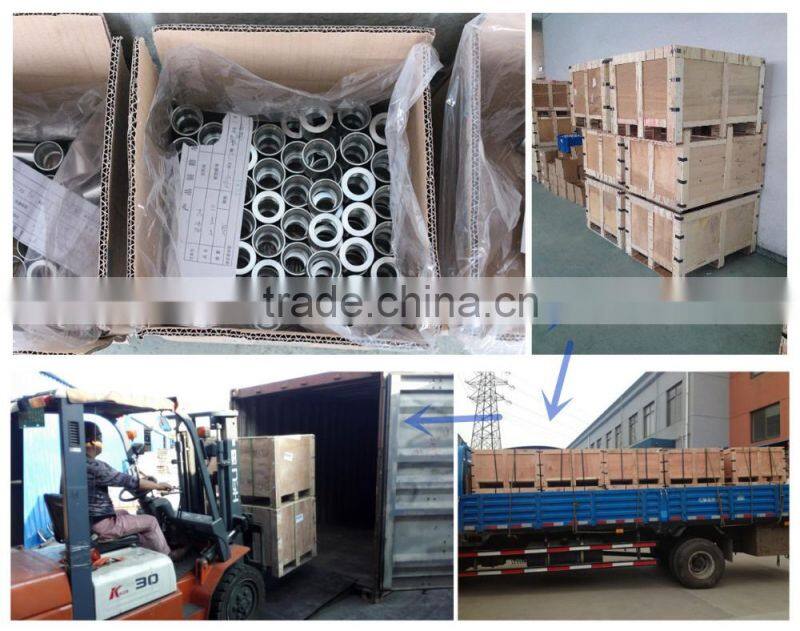

Packaging of Hydraulic Hose Fitting
Carton: 5 layers corrugated carton 24cm X 24cm X 16cm
Wooden Case: 110cm X 80cm X 75cm
Usually 42 corragetd cartons are packed in a wooden case.

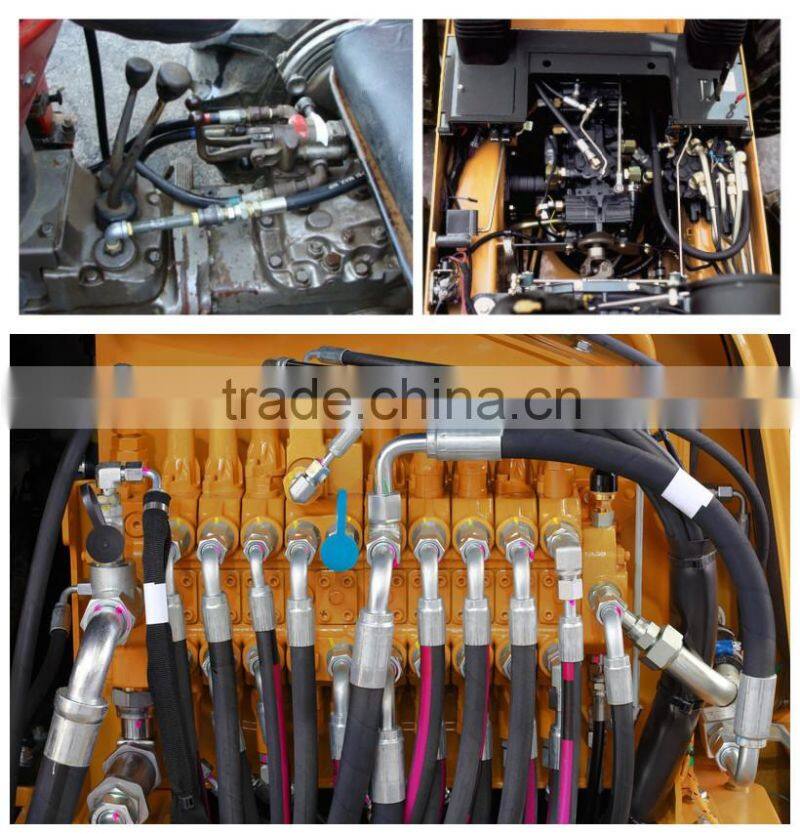

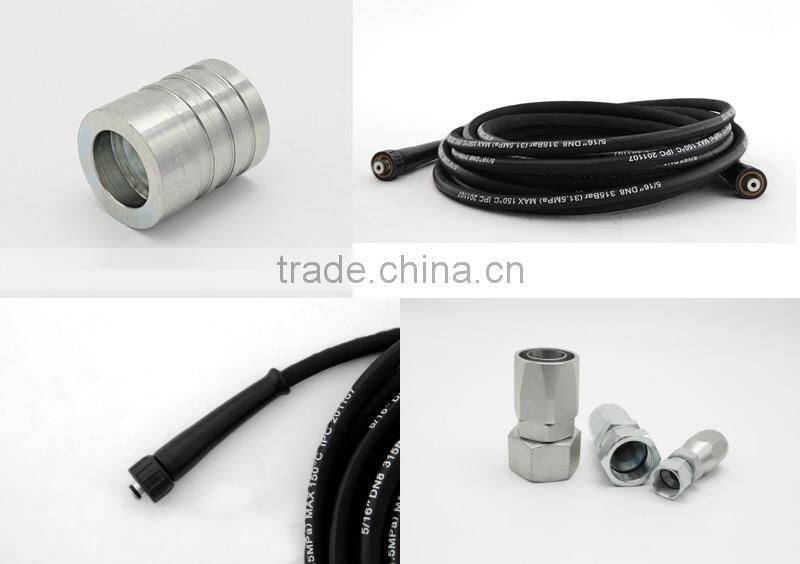

Application of Hydraulic Hose Fitting and Hydraulic Hose
Q: Is it stainless steel fitting?
A: It is made of carbon steel, if you need stainless steel one, we also can produce it for you.
Q: Is it standard hydraulic fitting?
A: Yes, all of our hydraulic fittings are standard parts.Each of hydraulic hose can find our hydraulic fittings to fit for.
Q: Can you print model and our brand on the ferrule and fitting?
A: We can print model and your brand on the ferrule, but there is no enough space to print them on the fitting, just logo is ok.
Q: Can you produce fitting according to sample or drawings?
A: Yes, we can produce fitting according to your samples or drawings.
Q: Can you galvanize zinc in golden color?
A: Yes, it can be made in golden color, anyway, we suggest galvanizing it in siliver color, it is enviroment-friendly.
