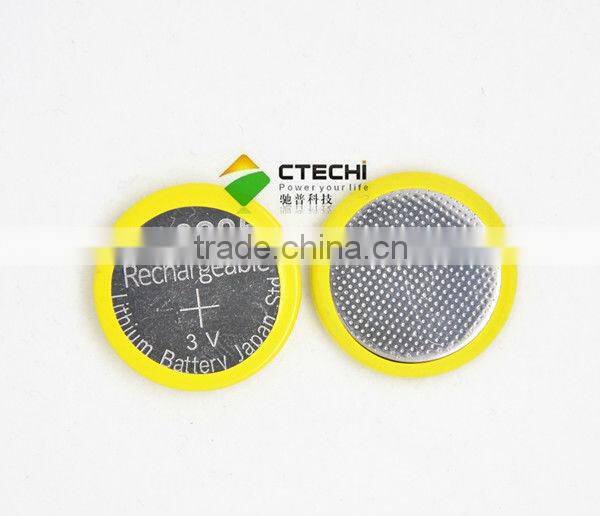

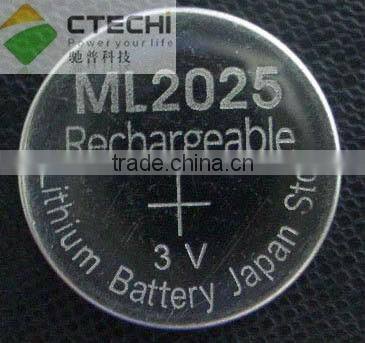

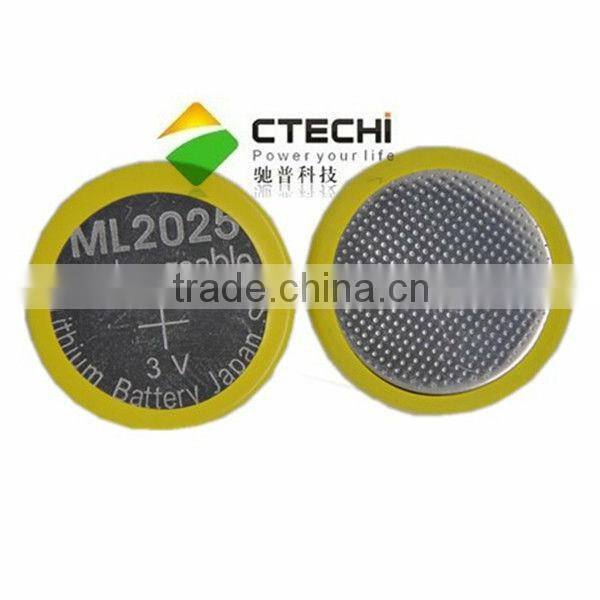

ML2025 Rechargeable Battery

Name: ML2025 Rechargeable Battery
Brand: neutral/power ultra
SKU: 102767237
Availability: InStock

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

neutral/power ultra

Model Number:

ML2025

Shenzhen Chipu Electronic Technology Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen\Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name neutral/power ultra

Model Number ML2025

Battery Type LiMnO2

Size 20*2.5mm

Nominal Capacity 45mAh

Nominal Voltage 3V

rechargebale button cell ML2025 battery

Our catalogue:

Model	Nomina rechargebale button cell ML2025 rechargebale button cell ML2025 l Voltage (V)	Nominal Capacity (mAh)	Dimension		Operating Current (max.mA)		Cut off Voltage (V)	Weight Approx (g)	Operating Temperature (°C)
IEC		Nominal Capacity (mAh)	Diameter (mm)	Height (mm)	Continuous	Pulse	Cut off Voltage (V)	Weight Approx (g)	Operating Temperature (°C)
ML1025	3.0	8	10	2.5	0.05	0.05	2.0	0.5	-20~+60
ML1216	3.0	10	12.5	1.6	0.05	0.05	2.0	0.5	-20~+60
ML1220	3.0	15	12.5	2.0	0.1	0.1	2.0	0.7	-20~+60
ML1225	3.0	18	12.5	2.5	0.1	0.1	2.0	0.8	-20~+60
ML1616	3.0	20	16	1.6	0.1	0.1	2.0	1.0	-20~+60
ML1620	3.0	25	16	2.0	0.2	0.2	2.0	1.1	-20~+60
ML1632	3.0	40	16	3.2	0.2	0.2	2.0	1.8	-20~+60
ML2025	3.0	45	20	2.5	0.4	0.4	2.0	2.2	-20~+60
ML2032	3.0	65	20	3.2	0.5	0.5	2.0	2.7	-20~+60
ML2320	3.0	55	23	2.0	0.4	0.4	2.0	2.9	-20~+60
ML2325	3.0	60	23	2.5	0.4	0.4	2.0	3.1	-20~+60
ML2330	3.0	85	23	3.0	0.4	0.4	2.0	3.2	-20~+60
ML2354	3.0	120	23	5.4	0.5	0.5	2.0	5.9	-20~+60
ML2430	3.0	100	24	3.0	0.5	0.5	2.0	3.9	-20~+60
ML2450	3.0	130	24	5.0	0.5	0.5	2.0	5.6	-20~+60
ML2477	3.0	180	24	7.7	0.5	0.5	2.0	8.0	-20~+60
ML3032	3.0	110	30	3.2	0.5	0.5	2.0	4.6	-20~+60

Characteristics:

ExcellentSafety performance, vibration, short circuit, pint, collision, compression, drop testing and other security related test items, are up to UL certification requirements.
Little change in high temperature, good stability and stronger resistance to overcharge.
Good discharge performance, discharging curve of ML button battery is very stable, has nice cycle life and high charge-discharge efficiency.
Superior cycle performance, ML button battery electrode material does not affect the volume effect in charging and discharging process, even after 300 to 500 cycles, its capacity remains above 80% of the initial capacity.
Great storage performance, storage performance of lithium-ion battery can be measured by the size of self-discharge. The loss of Self-discharging capacity is divided into unrecoverable capacity and recoverable capacity. Up to 95% to 98% capacity can be recovered.
