Specifications
1* high quality with competitive price2* quick delivery time
3* meet customers special rquests

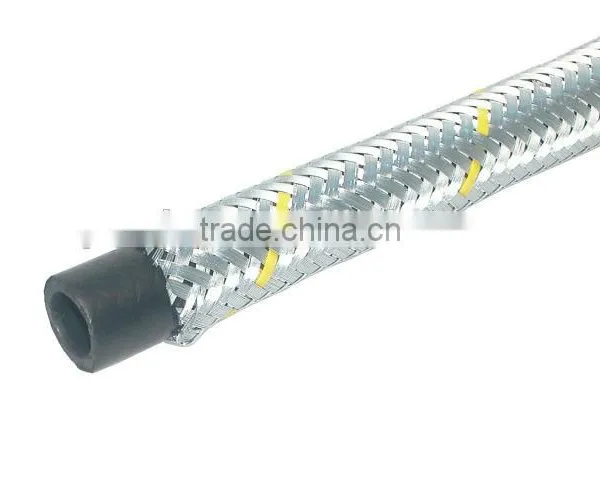

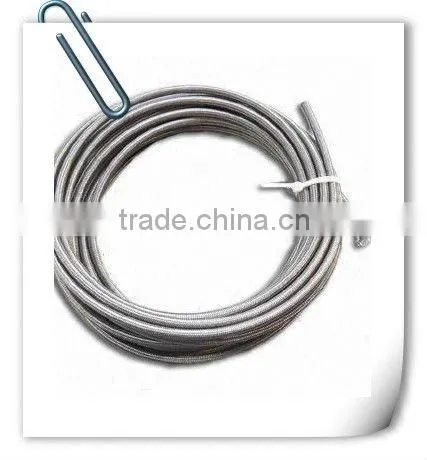

Stainless steel braided brake hose with structure Nylon/Teflon//304 steel//Nylon/PU at difference sizes, hose must be able to meet SAE J1401 tests.
The hoses are braided with high strength, manifold, polyester threads and have such very good performances as the following:
1)good flexibility,bursting resistance, high tensile strength, low swell increment of the internal volume,ozone resistance.
2) primary competitive advantages: Brand-name parts, international approvals. Competitive price, good performance. Prompt delivery, good reputation.
3)American style and European style,per brake hose with female thread connector.
4)A manufacturer of specilize in producing pipe connector with good quality and favorable price at home and abroad makert.Strict Quality Control.According to BSP,JIC,METRIC,and SAE. ISO standards.
5)Advanced production line and equipments.skilled workers and good management.According to you samples or drawings, all size is ok.
| I.D(tolerance0.5mm) | O.D(tolerance0.5mm) | working pressure | blast pressure | bend radius | ||||
| mm | inch | mm | bar | psi | bar | psi | mm | inch |
| 1/8" | 3.20 | 6.2 | 189 | 2793 | 770 | 8365 | 25 | 0.98 |
| 3/16" | 4.80 | 7.8 | 140 | 2030 | 560 | 8120 | 35 | 1.37 |
| 1/4" | 6.30 | 9.3 | 119 | 1778 | 490 | 7105 | 45 | 1.77 |
| 5/16" | 7.90 | 10.9 | 105 | 1519 | 420 | 6090 | 50 | 1.96 |
| 3/8" | 9.50 | 12.5 | 91 | 1372 | 378 | 5481 | 55 | 2.16 |
| 13/32" | 10.30 | 13.3 | 84 | 1299.2 | 357 | 5176.5 | 60 | 2.45 |
| 1/2" | 12.70 | 15.7 | 84 | 1218 | 336 | 4872 | 70 | 2.75 |
| 5/8" | 16.00 | 19 | 70 | 1015 | 280 | 4060 | 130 | 5.11 |
| 3/4" | 19.00 | 22 | 63 | 917 | 252 | 3654 | 190 | 7.48 |
| 1" | 25.40 | 28.4 | 42 | 658 | 182 | 2639 | 270 | 10.62 |
