Specifications
hose assembly rubberSAE 100R1AT/1SN
Oil resistant
7-year-manufacturer

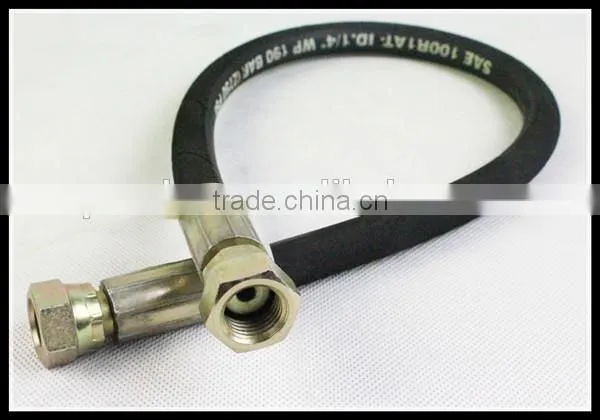

China hydraulic rubber hose prices SAE 100R1AT/SN
Application: Medium pressure hydraulic applications including
mobile, machine tool and agricultural applications,
using petroleum or water based hydraulic fluids.
Inner Tube: Nitrile
Reinforcement: One braids of high-tensile steel wire
Cover Compound: Neoprene
Temperature Range: -40℃~+100℃
part |
In |
Hose Size ID DIN Dash Size |
Hose OD |
Max.Working pressure |
Min.Bend Radius |
Min..burst pressure |
Weight (ibs/foot) |
||||
in |
mm |
psi |
mpa |
in |
mm |
psi |
mpa |
||||
GR1SN-03 |
3/16 |
4.8 Din Dash size |
0.47 |
11.9 |
3630 |
25 |
3.5 |
89 |
14520 |
100.1 |
0.12 |
GR1SN-04 |
1/4 |
6.4 Din Dash size |
0.534 |
13.6 |
3270 |
22.5 |
4 |
102 |
13080 |
90.2 |
0.15 |
GR1SN-05 |
5/16 |
7.9 Din Dash size |
0.595 |
15.1 |
3120 |
21.5 |
4.5 |
114 |
12480 |
86 |
0.17 |
GR1SN-06 |
3/8 |
9.5 Din Dash size |
0.689 |
17.5 |
2615 |
18 |
5 |
127 |
10460 |
72.1 |
0.22 |
GR1SN-08 |
1/2 |
12.7 Din Dash size |
0.813 |
20.7 |
2320 |
16 |
7 |
178 |
9280 |
64 |
0.28 |
GR1SN-10 |
5/8 |
15.9 Din Dash size |
0.938 |
23.8 |
1890 |
13 |
8 |
203 |
7560 |
52.1 |
0.33 |
GR1SN-12 |
3/4 |
19 Din Dash size |
1.096 |
27.8 |
1530 |
10.5 |
9.5 |
241 |
6120 |
42.2 |
0.41 |
GR1SN-16 |
1 |
25.4 Din Dash size |
1.408 |
35.8 |
1280 |
8.8 |
12 |
305 |
5120 |
35.3 |
0.62 |
GR1SN-20 |
11/4 |
31.8 Din Dash size |
1.696 |
43.1 |
920 |
6.3 |
16.5 |
419 |
3680 |
25.4 |
0.8368 |
GR1SN-24 |
11/2 |
38.1 Din Dash size |
1.971 |
50.1 |
730 |
5 |
20 |
508 |
2920 |
20.1 |
1.0921 |
GR1SN-32 |
2 |
50.8 Din Dash size |
2.503 |
63.6 |
580 |
4 |
25 |
635 |
2320 |
16 |
1.3413 |
|
|
|
|
|
|
|
|
|
|
|
|
2" I.D.
580 PSI
Stays flexible in -40℃~+100℃
Made from oil resistant rubber.
Ideal for industrial, as well as home use.
Every hose is hand inspected, so quality is always top of the line.
Made in the Great China!!!
These hydraulic rubber hose are designed to be used with most types of non-fuel injected gasoline and diesel engines. Constructed with a neoprene cover and nitrile tube reinforced with a single ply of braided cord, these hoses provide great resistance to gasoline, oil, grease, and weather.
Hydraulic Rubber Hose:
wire braided reinforced hoses |
SAE 100 R1AT/1SN, SAE 100 R2AT/2SN, SAE100R5, SAE 100R16 |
textile braided reinforced hoses |
SAE 100R3, SAE 100R4, SAE 100R6 |
|
wire spiralled reinforced hoses |
EN856 4SP, EN856 4SH, SAE 100R12, SAE 100R13 |
Fiber Braid Rubber Hose:
| Oil resistant Hose |
| Oxygen Acetylene Hose |
| Acid Aikali Resistant Hose |
| Special Pure Rubber Hose |
| Heat Resistant Hose |
| Wear Resistant Hose |
| Air Hose |
| Gas LPG Hose |
| Twin Welding Hose |
| Freon Charging Hose |
Trade Terms: EXW, FOB, CIF.
Payment Terms: T/T, L/C, Western Union, Paypal, Escrow, MoneyGram.
Delivery Time: Depend on your quantity.(Usally 30 working days for a 20' container)
Packing: OPP film, neutral carton or customize.
Shipping: By sea, by air and by express delivery.
Q1. Do you produce smooth or cloth wrapped cover?
A. We can produce both cover, according to your request.
Q2. Can you produce the products with our logo?
A. Yes, OEM services is available.
Q3. Are you a trade company of a factory?
A. We are a factory, welcome to visit our factory.
Q4. How long does my order take to be delivered?
A. Depends on the quantity of your order.(Usually 30 working days for a 20' container)
