Specifications
Hydraulic hose and fittingsBSP, JIC, NPT etc, fitting as your request
CE approved
Exported to Europe
R1 R2, 4SH, 4SP, etc

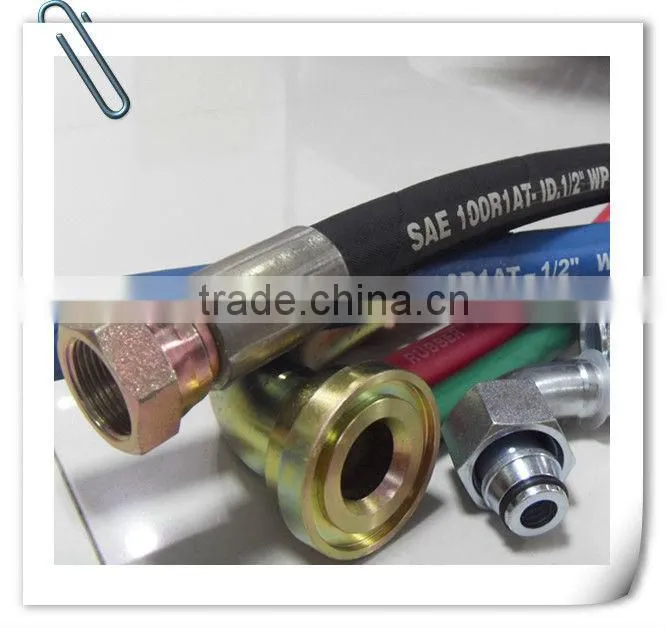

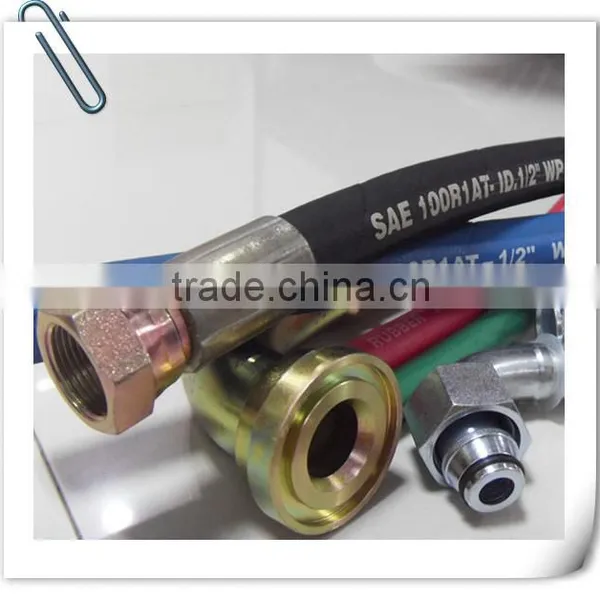

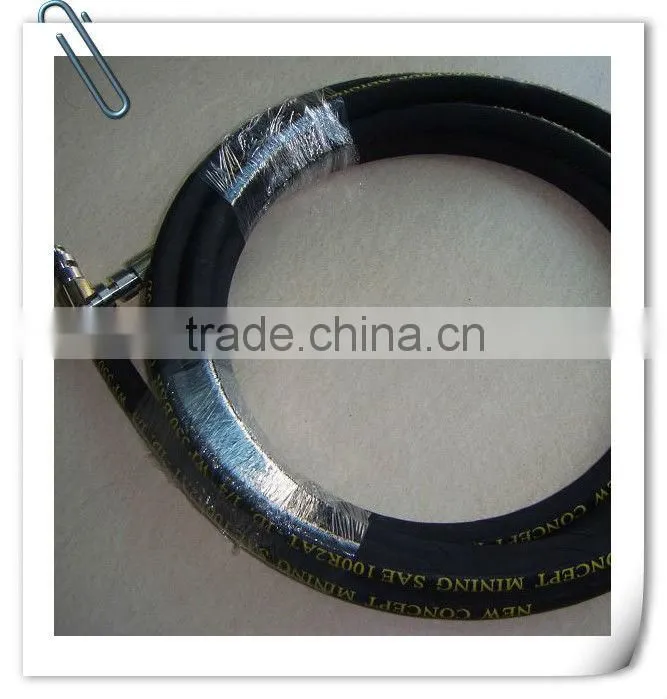

Hydraulic Hose and fittings:
Middle pressure, High pressure Hydraulic hose assembly

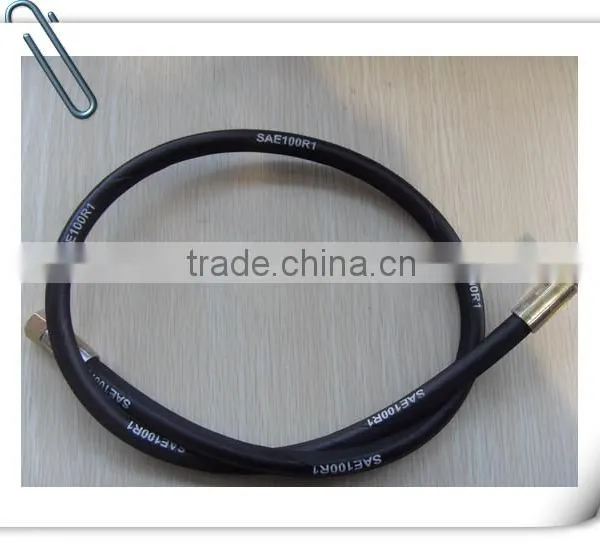

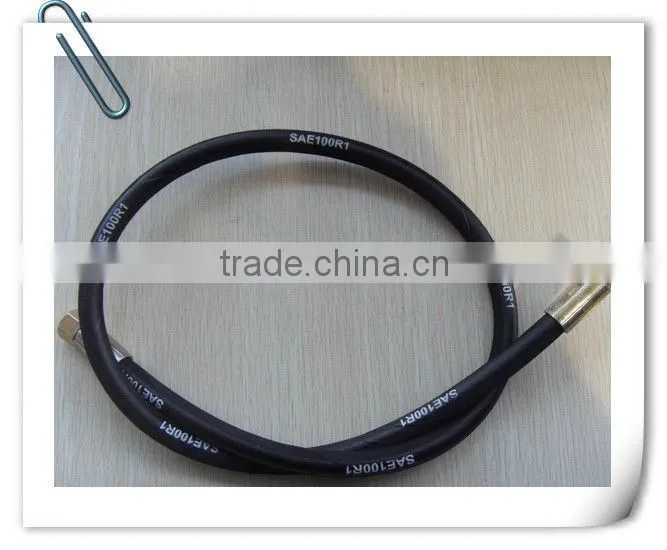

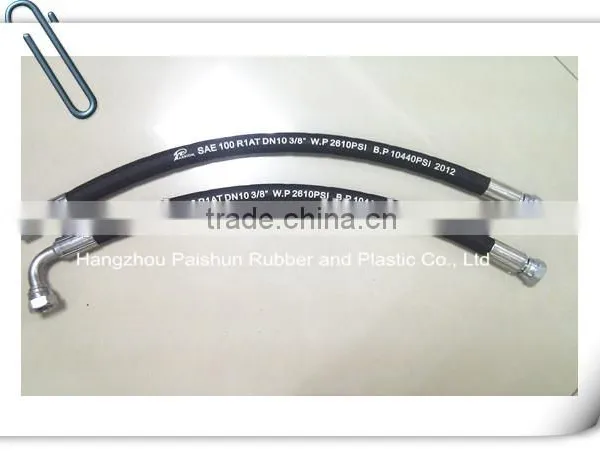

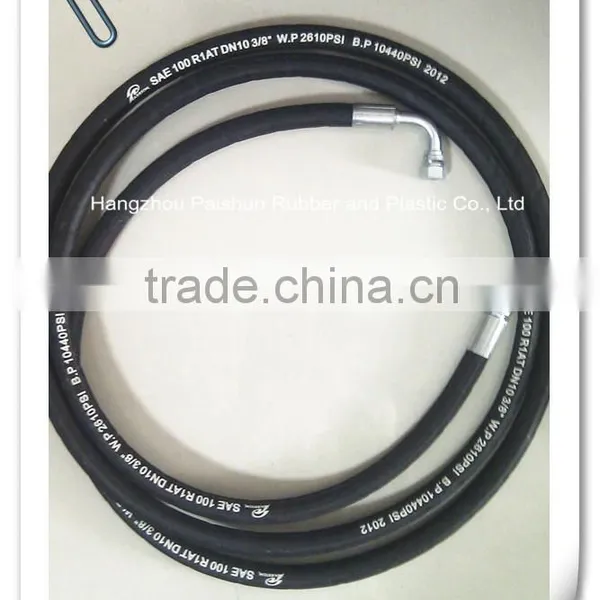

Hydraulic Rubber Hose SAE 100 R1 AT
WIRE BRAID REINFORCEMENT HOSE
Application: Mediun or high pressure hydraulic oil lines used in
construction, machine tool and agricultural
applications using petroleum or water
based hydraulic fluids
Inner Tube: Nitrile
Reinforcement: One braid of high-tensile steel wire
Cover Compound: Neoprene
Temperature Range: -40C~+100C
part |
In |
Hose Size ID DIN Dash Size |
Hose OD |
Max.Working pressure |
Min.Bend Radius |
Min..burst pressure |
Weight (ibs/foot) |
||||
in |
mm |
psi |
mpa |
in |
mm |
psi |
mpa |
||||
GR1SN-03 |
3/16 |
4.8 Din Dash size |
0.47 |
11.9 |
3630 |
25 |
3.5 |
89 |
14520 |
100.1 |
0.12 |
GR1SN-04 |
1/4 |
6.4 Din Dash size |
0.534 |
13.6 |
3270 |
22.5 |
4 |
102 |
13080 |
90.2 |
0.15 |
GR1SN-05 |
5/16 |
7.9 Din Dash size |
0.595 |
15.1 |
3120 |
21.5 |
4.5 |
114 |
12480 |
86 |
0.17 |
GR1SN-06 |
3/8 |
9.5 Din Dash size |
0.689 |
17.5 |
2615 |
18 |
5 |
127 |
10460 |
72.1 |
0.22 |
GR1SN-08 |
1/2 |
12.7 Din Dash size |
0.813 |
20.7 |
2320 |
16 |
7 |
178 |
9280 |
64 |
0.28 |
GR1SN-10 |
5/8 |
15.9 Din Dash size |
0.938 |
23.8 |
1890 |
13 |
8 |
203 |
7560 |
52.1 |
0.33 |
GR1SN-12 |
3/4 |
19 Din Dash size |
1.096 |
27.8 |
1530 |
10.5 |
9.5 |
241 |
6120 |
42.2 |
0.41 |
GR1SN-16 |
1 |
25.4 Din Dash size |
1.408 |
35.8 |
1280 |
8.8 |
12 |
305 |
5120 |
35.3 |
0.62 |
GR1SN-20 |
11/4 |
31.8 Din Dash size |
1.696 |
43.1 |
920 |
6.3 |
16.5 |
419 |
3680 |
25.4 |
0.8368 |
GR1SN-24 |
11/2 |
38.1 Din Dash size |
1.971 |
50.1 |
730 |
5 |
20 |
508 |
2920 |
20.1 |
1.0921 |
GR1SN-32 |
2 |
50.8 Din Dash size |
2.503 |
63.6 |
580 |
4 |
25 |
635 |
2320 |
16 |
1.3413 |
|
|
|
|
|
|
|
|
|
|
|
|
