Help CenterCR2330 Battery
Related Products
Specifications
CR2330 Battery1.3V lithium batterty
2.ROHS and ISO 9000 Certificate
3.Excellent performance

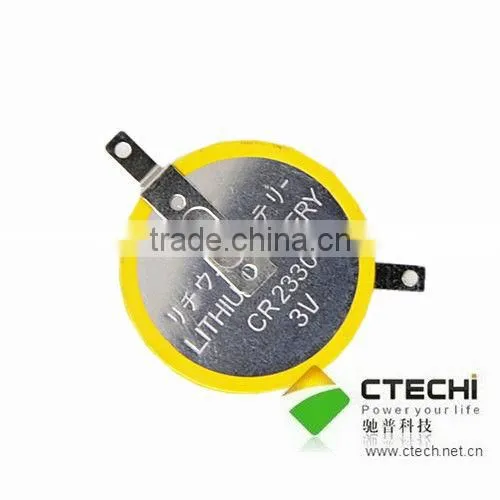

CR2330 battery
Model: CR2330
Nominal Voltage: 3.0V
Nominal Capacity: 250mAh
Shelf Life: 3 years
Application: Watches, Calculators, Portable Computers, Electric Keys, Electronic Dictionaries, Card-type Recorders, IC Card, Memory Cards for medical treatment equipment,etc.
Main Features:
3V nominal voltage, double that of conventional dry battery;
Stable and reliable discharge voltage;
Excellent storage characteristics;
Low self discharge rate of less than 2 percent;
Long shelf life
Excellent fast pulse discharge characteristics;
Wide operating temperature range from -20°C to 60°C
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Standard Load (Ω) | Discharge Time (H) | Current (uA) | Diameter (mm) | Height (mm) | Approx. Weight (g) |
| CR3032 | 3.0 | 520 | 15 | 2600 | 13 | 30 | 3.2 | 8 |
| CR2477 | 3.0 | 1050 | 7.5 | 2625 | 15 | 24.5 | 7.7 | 8.5 |
| CR2450 | 3.0 | 540 | 15 | 2700 | 13 | 24.5 | 5 | 6.5 |
| CR2430 | 3.0 | 275 | 15 | 1375 | 10 | 24.5 | 3 | 4.5 |
| CR2335 | 3.0 | 300 | 15 | 1500 | 10 | 23 | 3.5 | 4.1 |
| CR2354 | 3.0 | 490 | 15 | 2450 | 10 | 23 | 5.4 | 6 |
| CR2332 | 3.0 | 300 | 15 | 1500 | 8 | 23 | 3.2 | 4.2 |
| CR2330 | 3.0 | 250 | 15 | 1250 | 8 | 23 | 3 | 4 |
| CR2325 | 3.0 | 210 | 15 | 1050 | 8 | 23 | 2.5 | 3.3 |
| CR2320 | 3.0 | 175 | 15 | 875 | 8 | 23 | 2 | 3 |
| CR2050 | 3.0 | 300 | 15 | 1500 | 8 | 20 | 5 | 4.2 |
| CR2032 | 3.0 | 210 | 15 | 1050 | 5 | 20 | 3.20 | 3 |
| CR2032 | 3.0 | 190 | 15 | 950 | 5 | 20 | 3 | 2.8 |
| CR2025 | 3.0 | 150 | 15 | 750 | 3 | 20 | 2.5 | 2.4 |
| CR2020 | 3.0 | 125 | 15 | 625 | 3 | 20 | 2 | 2.1 |
| CR2016 | 3.0 | 75 | 30 | 750 | 2 | 20 | 1.6 | 1.8 |
| CR2012 | 3.0 | 50 | 62 | 1030 | 1 | 20 | 1.2 | 1.5 |
| And more, such as CR1632, CR1625, CR1620,CR1616, CR1530, CR1225, CR1220, CR1216, CR1212, CR1130, CR1025, CR927, CR920, CR816,CR632 |
SOLDERING TABS PRODUCTS CAN ALSO BE SUPPLIED, PLEASE CHECK BELOW:
