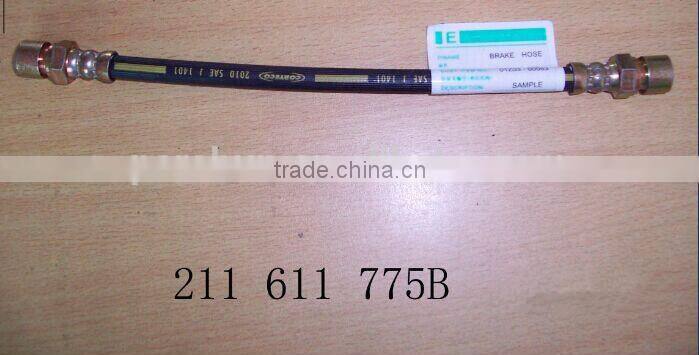

SAEJ1401 GB16897-1997 MS263-49 Hdraulic Brake Hose Assembly 211 611 775B

SAEJ1401 GB16897-1997 MS263-49 Hdraulic Brake Hose Assembly 211 611 775B photo-1
SAEJ1401 GB16897-1997 MS263-49 Hdraulic Brake Hose Assembly 211 611 775B photo-2
SAEJ1401 GB16897-1997 MS263-49 Hdraulic Brake Hose Assembly 211 611 775B photo-3
SAEJ1401 GB16897-1997 MS263-49 Hdraulic Brake Hose Assembly 211 611 775B photo-4
SAEJ1401 GB16897-1997 MS263-49 Hdraulic Brake Hose Assembly 211 611 775B photo-5
Negotiable MOQ: 800 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
PASSION
Model Number:
211 611 775B
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name PASSION
Model Number 211 611 775B

SAEJ1401 GB16897-1997 MS263-49 Hdraulic Brake Hose Assembly 211 611 775B



Hydraulic pressure brake hose:



Standard: SAEJ1401 GB16897-1997 MS263-49

Working temperature range: -40℃ ~ +100℃



Innter Tube: NBR/EPDM

Reinforcement: PVA and PET

Outside Tube: CR/EPDM



Uses: act as apressure transmission for auto hydraulic pressure brake system.

Features: the hoses are braided with high strength, manifold, polyester threads and have such

good performances as the followings: good flexibility bursting resistance, high tensile strength,

low swell increment of the internal volume, ozone resistance, low-temperature, bending resistance

and good compatibility, with stable, sate and reliable braking effects.



Number I.D. O.D. Wall Wall Diff  Expansion ml/m max BrustPress
mm mm mm max. mm 6.9mpa 10.3mpa Min. Mpa
1 3.2+0.1 -0.2 (1/8) 10.5+0.3-0.2 3.65 ≤0.25 <1.08 <1.38 >49.03
2 4.8+-0.2 (3/16) 13+-0.3 4.35 ≤0.30 <1.81 <2.36 >34.5
3 6.3+-0.2 (1/4) 15+-0.3 3.75 ≤0.30 <2.69 <3.84 >34.5



OEM:  211 611 775B



SAEJ1401 GB16897-1997 MS263-49 Hdraulic Brake Hose Assembly 211 611 775B



Others:

SAEJ1401 GB16897-1997 MS263-49 Hdraulic Brake Hose Assembly 211 611 775B
