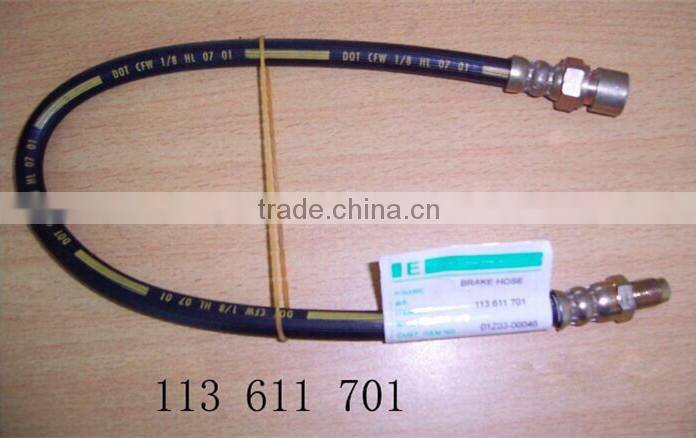

dot sae j1401 brake hose assembly 113 611 701
Hydraulic pressure brake hose:
Standard: SAEJ1401 GB16897-1997 MS263-49
Working temperature range: -40℃ ~ +100℃
Innter Tube: NBR/EPDM
Reinforcement: PVA and PET
Outside Tube: CR/EPDM
Uses: act as apressure transmission for auto hydraulic pressure brake system.
Features: the hoses are braided with high strength, manifold, polyester threads and have such
good performances as the followings: good flexibility bursting resistance, high tensile strength,
low swell increment of the internal volume, ozone resistance, low-temperature, bending resistance
and good compatibility, with stable, sate and reliable braking effects.
| Number | I.D. | O.D. | Wall | Wall Diff | Expansion ml/m max | BrustPress | |
| mm | mm | mm | max. mm | 6.9mpa | 10.3mpa | Min. Mpa | |
| 1 | 3.2+0.1 -0.2 (1/8) | 10.5+0.3-0.2 | 3.65 | ≤0.25 | <1.08 | <1.38 | >49.03 |
| 2 | 4.8+-0.2 (3/16) | 13+-0.3 | 4.35 | ≤0.30 | <1.81 | <2.36 | >34.5 |
| 3 | 6.3+-0.2 (1/4) | 15+-0.3 | 3.75 | ≤0.30 | <2.69 | <3.84 | >34.5 |
OEM: 113 611 701
