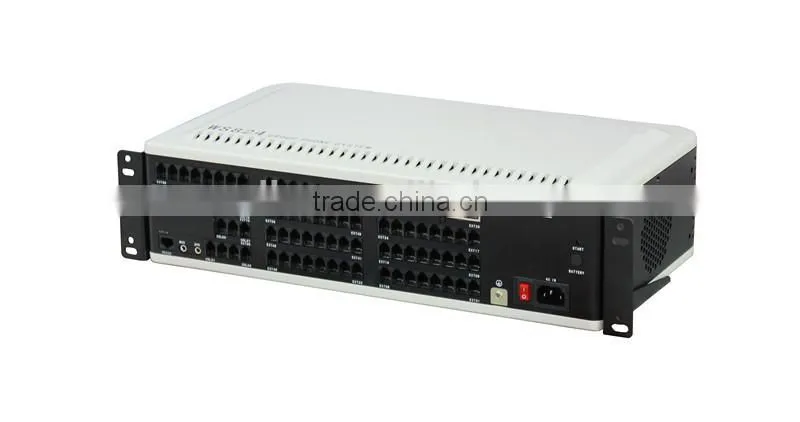

Help Center8 Sim Cards Gsm Gateway Pbx With 8 Channel GSM Ports
Related Products
-
China New Product Hotel PBX Intercom For Hotel IntercomNegotiableMOQ: 20 Units -
Central Phone System WS824 Series Co. Line From 4-8 and Extensions From 16-64NegotiableMOQ: 20 Units
-
Hotel Hybrid IP PBX Intercom For Hotel SystemUS$ 1 - 120MOQ: 20 Units
-
China Suppiler Analog Line Card PBX Small Size 416 Mini PabxNegotiableMOQ: 1 Piece
-
China Suppiler Hybrid IPBX Small Size 416 Mini PabxNegotiableMOQ: 1 Piece
Specifications
8 sim cards gsm gateway pbx with 8 Channel GSM PortsCapacity:co.lines-4~10,Exts.-16~88
Weight:9KGS
Size:430*240*124mm
8 sim cards gsm gateway pbx with 8 Channel GSM Ports/VOIP Gateway/VOIP ATA
SIP / PSTN Trunking]
Extension RestrictionIntra-Network,
Location Free Extension Dialing
Real Time Extension Line Status
Busy/Idle Display Extension/ID Display Presentation Status
Personal Ring-Back Tones
Call Rejection (Call Cancellation)Selective Call Rejection
Eight Way Calling
Phone Book Grouping (User group, FXO group, etc.)
Outgoing Call BarringCaller ID (Name & Number)
Product feature
1) Smooth transition, compatible with tradition and the future
2) The remote call zero cost
3) WIFI mobile together with wired network
4)The number of unique passthrough
5) Comprehensive generalist
Power Specification
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 65W
Operating temperatures: 0°C to 45°C (32°F to 113°F) ,26±5°c for best
Operating humidity: 10% to 95% without condensation
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Connect with PC, connecting length:<30m
Source of music:
Input impedance:600Ω
Input audio level:025Vpp-1Vpp
Output impedance:600Ω
(2)Battery backup supply:24VDC/76Ah
Detail Picture
WS824(9)i mother boad
WS824(9)i ip board for hotel
Note:Connect the mainboard EXPCN1 slot or extension of the slots on the board expansion slots (50P)
WS824(9)i-008C exts board
All of extension port can be connect with common phone.
WS824(9)i-008A exts board
Note:1-4 extension port can connect with key phone, 008A board only can connect the Exts lines slot COPCN1 1 and 2 of mother board
WS824(9)i-300L Co lines board
Note:300L board only can connect the Co lines slot COPCN1 1 and 2 of mother board
WS824(9)i-P02 power board(optional)
WS824(9)i installation drawing
Specification Parameter
| Size | 430*240*124mm |
| Weight | 3kgs |
| FXS(PSTN) | 4/10 |
| FXO+FXS | 4/88 or 10/72 |
| CDMA/GSM | Optional |
| IP user | 100 |
| IP concurrent | 20 |
IP and Traditional voice concurrent channel | 4 |
| SIP trunk | 9 |
| LAN Port | 1 |
| SIP Protocol | YES |
| Record | Optional |
Power Specification
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 65W
Operating temperatures: 0°C to 45°C (32°F to 113°F) ,26±5°c for best
Operating humidity: 10% to 95% without condensation
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Connect with PC, connecting length:<30m
(1)Source of music:
Input impedance:600Ω
Input audio level:025Vpp-1Vpp
Output impedance:600Ω
(2)Battery backup supply:24VDC/76Ah
Product feature
1) Smooth transition, compatible with tradition and the future
2) The remote call zero cost
3) WIFI mobile together with wired network
4)The number of unique passthrough
5) Comprehensive generalist
POWER SUPPLY
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 30W
Cross-talk attenuation: >70db
Internal feeding voltage: +28VDC, 30mA
Internal ringing voltage:75VAC/50Hz
External line port voltage: <60VDC
External line port ringing voltage: 35VAC/25Hz or >35VAC/50Hz
ENVIRONMENTAL LIMITS
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
CABLE REQUIREMENTS
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Outgoing call: DTMF
Cross lose: > 70dBII
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
