Specifications
2 way intercom systemCall Pickup and Call Transfer
Outside call class assignment
1 yeare warranty
| Model | WS824-Q10 | WS824-M416 |
| Basic Capacity | 2 COs 8 Exts | 4 COs 16 Exts |
| Max Co Lines | 2 | 4 |
| Max Exts | 8 | 16 |
| Size(L*W*H)(mm) | 200*150*58 | 200*150*60 |
| Weight(kg) | 1 | 2 |
| Auto-attendant | 1 route 2 parts | 1 route 2 parts |
| Key Phone | N | 1 |
| Caller ID Display | Y | Y |
| Call Queuing | 1 group | 1 group |
| Exts flexible numbering | 1/2/8 leading | 1/2/8 leading |
| Auto Day/Night Service | Y | Y |
| Mobile Account | 32 groups | 32 groups |
| Auto IP economical route | Y | Y |
| Call to Exts when power off | 2 roads | 4 roads |
| Multi-party Conference | 1 group 8 parties | 1 group 8 parties |
| Manger-Secretary function | Y | Y |
| Class of Services Restrict | Y | Y |
| Conversation Time Limitation | Y | Y |
| Setting Operator | Y | Y |
| Hotline Dialing | Y | Y |
| Special Line for incoming and outgoing call | Y | Y |
| External Music Port | Y | N |
| Call Cut-Off | Y | Y |
| Key Phone dispaly | English | English |
| Auto Call Back if transfer with no-answer | Y | Y |
| Call Hold Retrieve | Y | Y |
| Do not Disturb | Y | Y |
Main Functions
1.Built-in 3 sections 30S outgoing messages.
2.According to the operation instruction,it shows extensions number.
3. 2 roads Call to Exts when power off
4.Can be connect with one key phone.
5.Flexible Numberring leading number is 1,2,8.The length is from 2 digits to 4 digits.
6.Outgoing and Incoming Call Inquiry at Key Phone.
7.Bulit-in Caller ID for Outside Line and Extension Line and can be tranfered again and again.
8.Conference Call can support 8 parties.
9.6 Class of Services.
10.More desk set, the system can set up three desk
11.Call queuing.
12.IP Econnomical Routing.
Power Supply
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 30W
Cross-talk attenuation: >70db
Internal feeding voltage: +28VDC, 30mA
Internal ringing voltage:75VAC/50Hz
External line port voltage: <60VDC
External line port ringing voltage: 35VAC/25Hz or >35VAC/50Hz
Environmental Limits
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
Cable Requiremnts
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Outgoing call: DTMF
Cross lose: > 70dBII

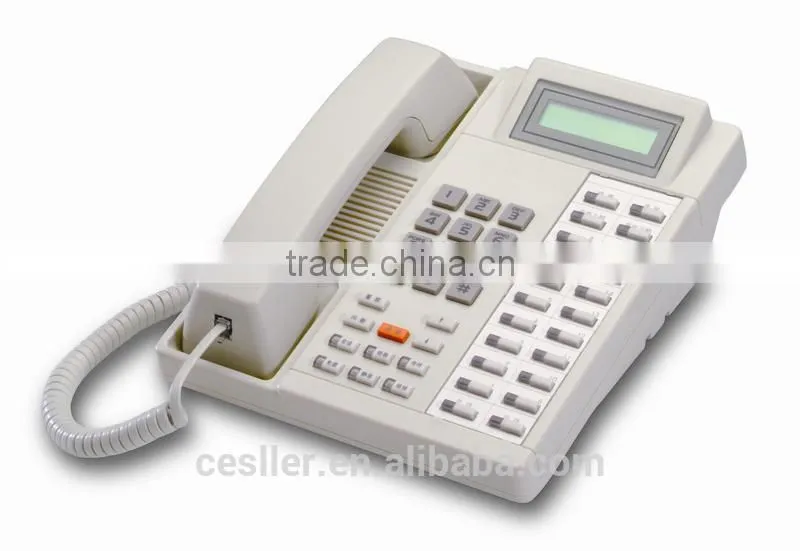

Key phone
Office telephone
Inner packing:
Plastic cases and color boxes
Weight: 0.9~1.2 KGS/PC
Giftbox size: 35*26*8.5cm
Outer packing:
5pcs/ctn
Carton size: 46*36.5*28cm
Shipping to worldwide by DHL, FEDEX, TNT and UPS etc.
Lanny Welcome you to ask for price.
Skype: ceslle
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
