Specifications
PRI to Sip Trunk Gateway with 2E11. PSTN and IP network
2. IVR voice navigation system
3. telephone recording system
PRI to Sip Trunk Gateway with 2E1/ asterisk pri/ asterisk pbx

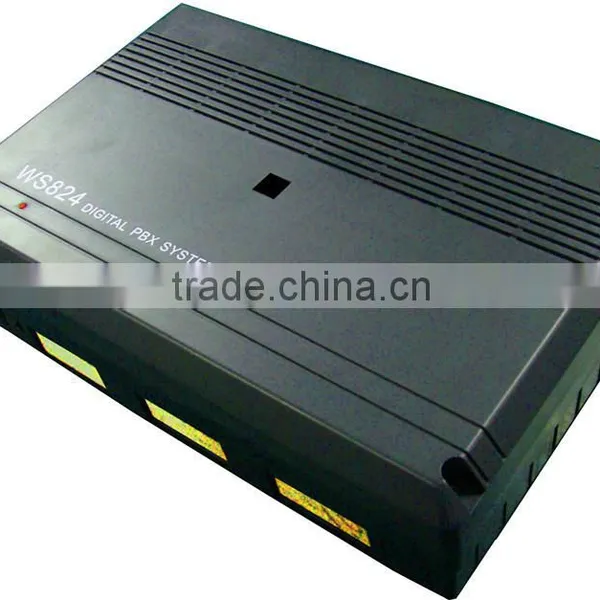

| Model | WS824(10D)S |
| Photos | |
| Basic Capacity | 8 Cos 16 Exts |
| Max Co Lines | 32 |
| Max Exts | 112/144 |
| Size(L*W*H)(mm) | 485*300*140 |
| Weight(kg) | 7.5 |
| Digital trunk 2M board (PRI) | optional 1 road |
| Auto-attendant | 2 Road 6 Parts/ 6 Roads Expandable |
| Key Phone | 80 |
| Transfer to Cellphone | Y |
| Caller ID Display | Y |
| Incoming gain control | Y |
| Call Queuing | 8 Groups |
| Support Trunk Affiliate | Y |
| Voice Report Exts Number | Y |
| Billing software | Y |
| Managing software | Y |
| Back-up battery interface | Y |
| Exts flexible numbering | 1-9 leading |
| Auto Day/Night Service | Y |
| Mobile Account | 255 Groups |
| Auto IP economical route | Y |
| Paging | Y |
| Call to Exts when power off | N |
| Operator Record | 2 kinds |
| Multi-party Conference | 2 Groups 3 parties |
| 0 | Y |
| Manger-Secretary function | Y |
| Class of Services Restrict | Y |
| Conversation Time Limitation | Y |
| Setting Operator | Y |
| Reversed Polarity inspection | Y |
| Hotline Dialing | Y |
| Special Line for incoming and outgoing call | Y |
| External Music Port | Y |
| Call Cut-Off | Y |
| Extension charge Prepaid | Y |
| Extension Alarm | Y |
| Key Phone dispaly | English/Chinese |
| DISA Co line to Co line | Y |
| Auto Call Back if transfer with no-answer | Y |
| Call Hold Retrieve | Y |
| Do not Disturb | Y |
1. Full Digital Exchange and eight ways of NO block for conversation and dialing and there is eight type of codes for dialing out.
2. Can support 2M ( PRI ) board.
3. Can be connected with 80 key phones.
4. Built-in Two mode 75s Six Section Auto-Attendant,can be up to 8 rounts.
5. Incoming Call can be transferred to mobile phone.
6. High Speed for Call Transfer and High Quantity Tone.
Call in one group by one key. When routing in via Auto-Attendant , users calling in will hear suck kind of reminding tone.
7. Call Navigation by One Key.
“Thanks for calling XX company. Please dial extension number directly. Dial “1” for product information , dial “2” for sales after team , dial“3”for shipping. Dial“0”for operator assistance. Can route in relative extensions of one same group and make the extensions ring circularly by the function . Thus, extension will be ringed if it is idle first. So it is very suitable for company, which has plentiful direct customers. Therefore, can improve speed of call handling and reduce incoming call loss , and make transfer more quickly.
8. Mini Calling Center Software
The Software is a kind of multi-function fitting integrates System Accounting, System Monitoring , System Setting and Customer Information Popping. So that customers can manage call system easily and improve efficiency, Also save labor cost and improve satisfaction degree. It is very suitable for sales requirement in different field.
Power Supply
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 30W
Cross-talk attenuation: >70db
Internal feeding voltage: +28VDC, 30mA
Internal ringing voltage:75VAC/50Hz
External line port voltage: <60VDC
External line port ringing voltage: 35VAC/25Hz or >35VAC/50Hz
Environmental Limits
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
CABLE REQUIREMENTS
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Outgoing call: DTMF
Cross lose: > 70dBII
Shipping to worldwide by DHL, FEDEX, TNT and UPS etc.
Lanny Welcome you to ask for price.
Skype: cesller
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
