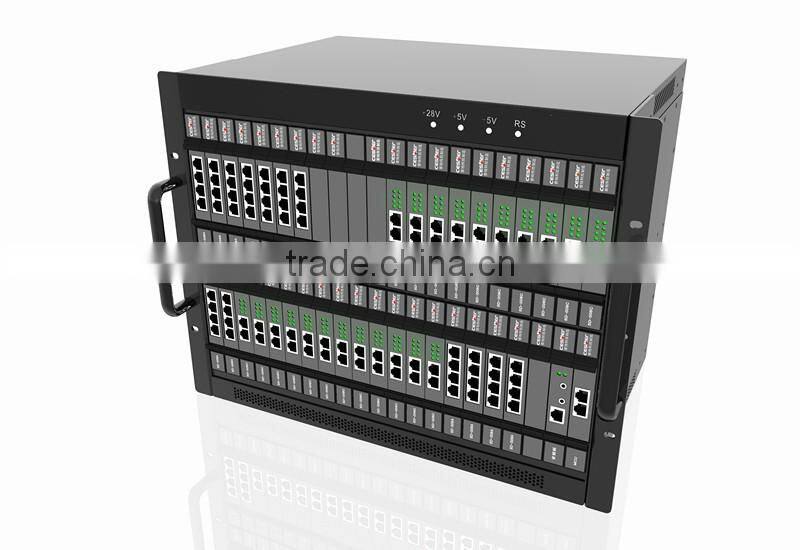

Multi sim card gsm modem 8 ports
System TFTP upgrade
Data backup and restore
WEB remote interface management
Multiple voice codec format
300 IP extension Account
30 TDM-IP concurrent access
40 IP platform concurrent calls
IP voice calls bypass
IP extension account, IP trunking support SIP Type
Flexible networking
DID number across the equipment through the call
Resonance
IP call extension account level limite
Relay equipment sharing
Pass through the number
General IP phone support
Open standard interface protocols
High system integration
Specification Parameter
Model |
NSN9000Si |
NSN9000Mi |
Size |
435*265*140mm |
435*311*368mm |
FXS |
144 |
312 |
FXS(PSTN) |
32 |
64 |
E1 |
1 |
4 |
FXS+FXO |
144 |
312 |
E1+FXS |
1E1+136 |
4E1+280 |
CDMA/GSM |
YES |
YES |
Number of IP user |
300 |
300 |
Number of IP concurrent |
40 |
40 |
Concurrent IP and TDM channel |
4+26(optional) |
4+26(optional) |
Number of SIP trunk |
30 |
30 |
LANPort |
1 |
1 |
SIP Protocol |
YES |
YES |
Record(TDM) |
Optional |
Optional |
Technical Specification
Model |
NSN9000Si |
NSN9000Mi |
AC input |
110VAC/220VA±10%/50Hz-60Hz |
110VAC/220VA±10%/50Hz-60Hz |
Internal feeding voltag |
+48VDC/30mA |
+30VDC/25mA |
Internal ringing voltage |
75VAC/25Hz |
75VAC/25Hz |
Backup battery voltage |
+24VDC |
+24VDC |
Exts line port voltage |
<60VDC |
<60VDC |
Exts line port ringing voltage |
>35VAC/25Hz/>35VAC/50Hz |
>35VAC/25Hz/>35VAC/50Hz |
System power voltage |
85W |
150W |
Line impedance |
600Ω |
600Ω |
Input level |
250MV, max 1V RMS |
250MV, max 1V RMS |
Exchange mode |
TDM+IP |
TDM-IP |
Enviroment temperature |
0-45℃(32-113℉),25±5°Best |
0-45℃(32-113℉),25±5°Best |
Enviroment humidity |
10%-95% noncondensing |
10%-95% noncondensing |
SIP Phone
Special Key Phone
Shenzhen Guowei Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
Application as follow show
Shipping to worldwide by DHL, FEDEX, TNT and UPS etc.
Lanny Welcome you to ask for price.
