Home > Products > A/C Hose, Refrigerant Hose > Black Smooth Surface Auto 5/16" / 3/4" Flexible R134a Tube

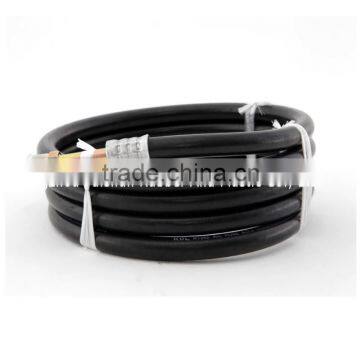

Black Smooth Surface Auto 5/16" / 3/4" Flexible R134a Tube
- 40000 Meter / Meters per Month
- Ningbo/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Premium Charging Hose with Anti-blow Back Fitting
-
ID 3/16" Inch 600/3000 Psi Refrigerant Charging Hose Kit
-
High Pressure Flexible Rubber 5mm Hose
-
Three Color 36" Inch WP 800Psi R401a Refrigerant Hose
-
5mm 800/4000 Psi Refrigerant Charging Hose Set
-
Red/Yellow/Blue/Black Refrigerant Charging Hose With Ball Valve
Product Details
| Place of Origin | Zhejiang, China | Brand Name | PASSION | |
| Model Number | A/C Hose |
Product Description
Type E Air Conditioning Hose
Construction: Inner tube: EPDM
Barrier: PA
Reinforcement: PET or single braid polyester
Cover: EPDM synthetic rubber (Smooth Surface)
Temperature: -40℃~125℃ (Max +135C)
Color: Black
Application: Mainly used for conveying R12, R22, R134a etc medium in automobile air-conditioning system like bus transit system.
Standard: SAE J2064E
Standard length: 100m
Specification:
Item Code | Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Weight | |||
inch | mm | mm | bar | psi | bar | psi | m | kg/m | |
PACE-08 | 5/16 | 8.2±0.4 | 15.2±0.5 | 35 | 500 | 280 | 4060 | 100 | 0.15 |
PACE-10 | 13/32 | 10.2±0.4 | 17.2±0.5 | 35 | 500 | 220 | 3139 | 100 | 0.17 |
PACE-12 | 7/16 | 11.5±0.4 | 18.4±0.5 | 35 | 500 | 230 | 3335 | 100 | 0.20 |
PACE-13 | 1/2 | 13.2±0.4 | 20.8±0.5 | 35 | 500 | 200 | 2900 | 100 | 0.23 |
PACE-16 | 5/8 | 15.5±0.4 | 22.8±0.5 | 20 | 290 | 180 | 2610 | 100 | 0.26 |
PACE-19 | 3/4 | 19.0±0.4 | 27.5±0.5 | 15 | 210 | 160 | 2320 | 100 | 0.37 |
PACE-22 | 7/8 | 22.0±0.4 | 33.0±0.5 | 15 | 210 | 120 | 1740 | 100 | 0.67 |
